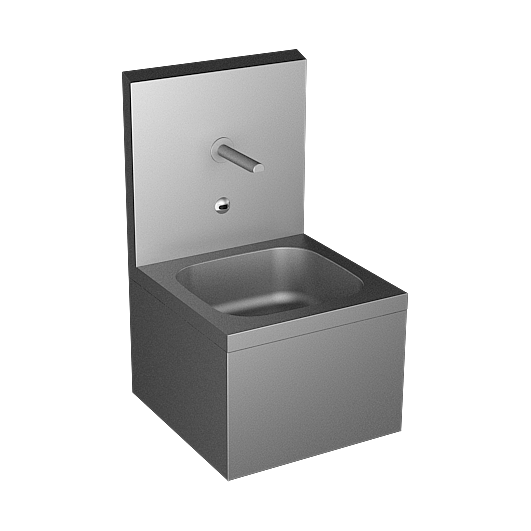

SLUN 04ETB
Stainless steel wall hung sink with integrated electronics, thermostatic mixer, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- stainless steel wall hung sink with back wall and integrated infra-red electronics
- vandal-proof stainless steel spouts and sensing heads
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- temperature is regulated by thermostatic mixer
- material AISI - 304
- brushed finish
- Order number: 93044
I am interested in more information:
Supply specification
SLUN 04ETB - Supply No. 93044 - stainless steel sink with electronics and spout (1 pc.), thermostat, electromagnetic valve (1 pc.), angle valve with filter and check valve (2 pcs.), connecting hoses, siphon, mounting set, 4 pcs. alkaline batteries AA 1,5 V, 2700 mAh
Technical information
| Temperature regulation: | with thermostat |
| Power supply: | battery operated |
| Installation: | wall hung |
| Category: | sink |
| Control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | 0 - 0,3 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (4.25 MB)
- Catalogue list (476.14 kB)
- 2D Drawing (387.42 kB)
