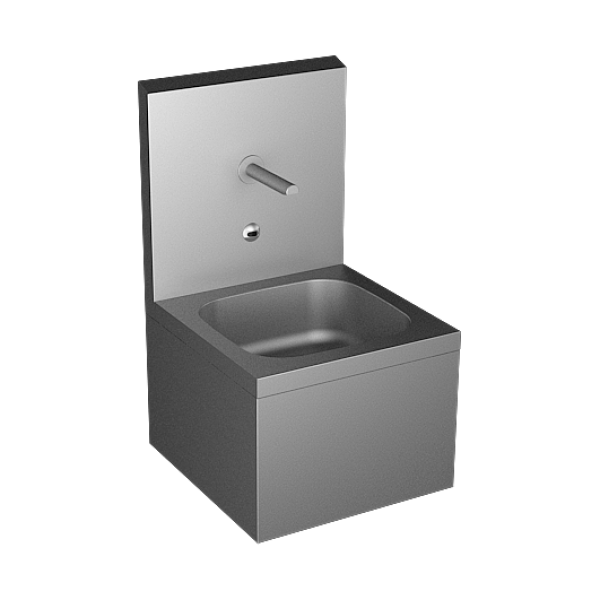

SLUN 04ET

Stainless steel wall hung sink with integrated electronics, thermostatic mixer, 24 V DC

Characteristics

economical aerator, rate of flow 6 l/min
hygienic flush
vandal-proof
stainless steel wall hung sink/double-sink with back wall and integrated infra-red electronics
vandal-proof stainless steel spouts and sensing heads
water is flowing as long as hands are in the active range
water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
function of automatic water stop after 5 minut of continuous flow
START/STOP program
parameter adjustment using by the remote control SLD 03
temperature is regulated by thermostatic mixer
material AISI - 304
brushed finish

Order number	93043
Code	SLUN 04ET

Supply specification

SLUN 04ET - Supply No. 93043 - stainless steel sink with electronics and spout (1 pc.), thermostat, electromagnetic valve (1 pc.), angle valve with filter and check valve (2 pcs.), connecting hoses, siphon, mounting set

Technical information

Operating voltage: 24 V DC
Active range: 0 - 0,3 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
