SLUN 07ETB

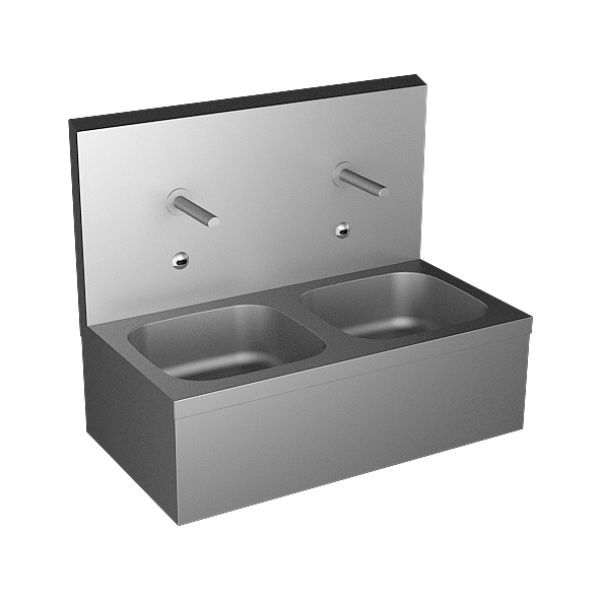

Stainless steel wall hung double sink with integrated electronics, thermostatic mixer, 6 V

Characteristics

economical aerator, rate of flow 6 l/min
hygienic flush
vandal-proof
stainless steel wall hung sink/double-sink with back wall and integrated infra-red electronics
vandal-proof stainless steel spouts and sensing heads
water is flowing as long as hands are in the active range
water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
function of automatic water stop after 5 minut of continuous flow
monitoring of battery capacity
START/STOP program
parameter adjustment using by the remote control SLD 03
temperature is regulated by thermostatic mixer
material AISI - 304
brushed finish

Order number	93074
Code	SLUN 07ETB

Supply specification

SLUN 07ETB - Supply No. 93074 - stainless steel double-sink with electronics and spout (2 pcs.), thermostat, electromagnetic valve (2 pcs.), angle valve with filter and check valve (2 pcs.), connecting hoses, siphon, mounting set, 4 pcs. alkaline batteries AA 1,5 V, 2700 mAh

Technical information

Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: 0 - 0,3 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
