SLU 39PX

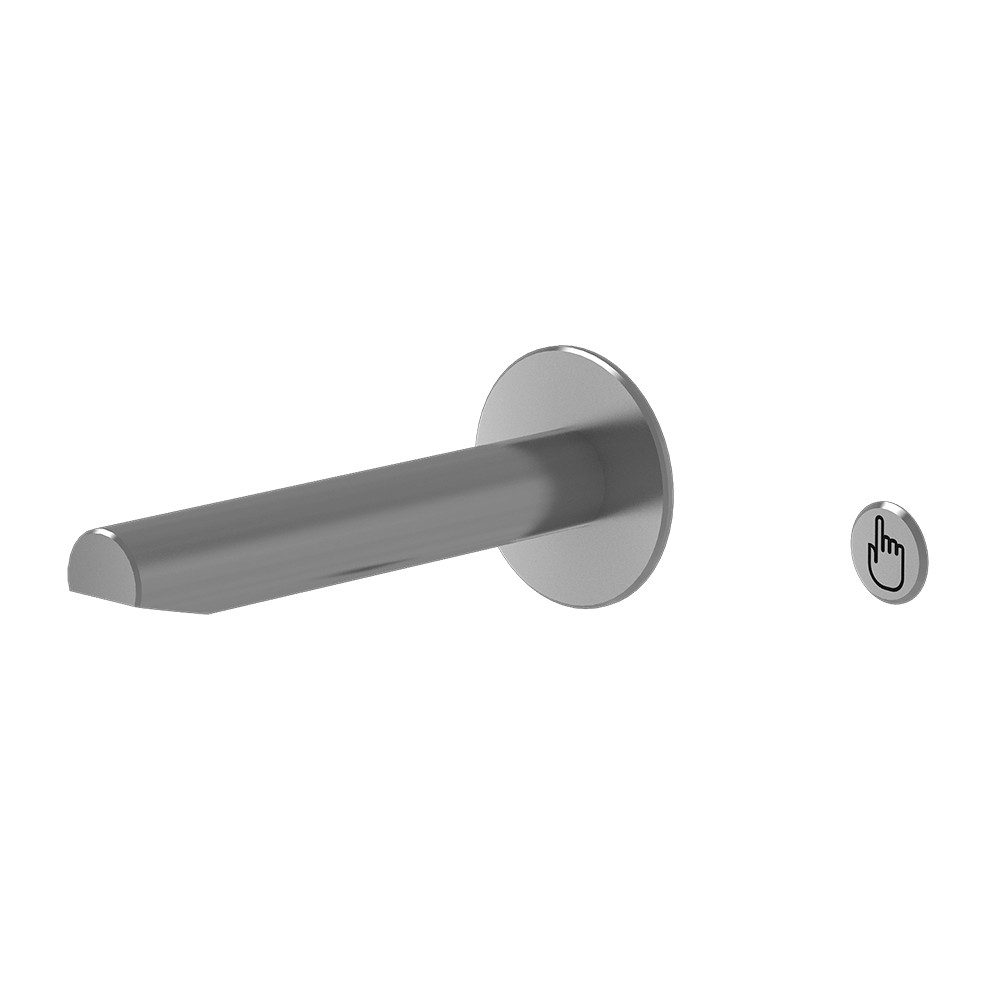

Set of stainless steel piezo wall-mounted washbasin tap for subsequent mounting, brushed, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • lead free
  • is destined for installation into the wall (necessary to use installation set SLA 52B)
  • is destined for installation into the sheets with a max. thickness of 5 mm
  • is destined for cold or premixed water
  • index X - brushed finish
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • Order number: 03394

Supply specification

SLU 39PX - Supply No. 03394 - faucet, piezo electronics, electromagnetic valve (1 pcs.)

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: 24V DC
control: piezo
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads
