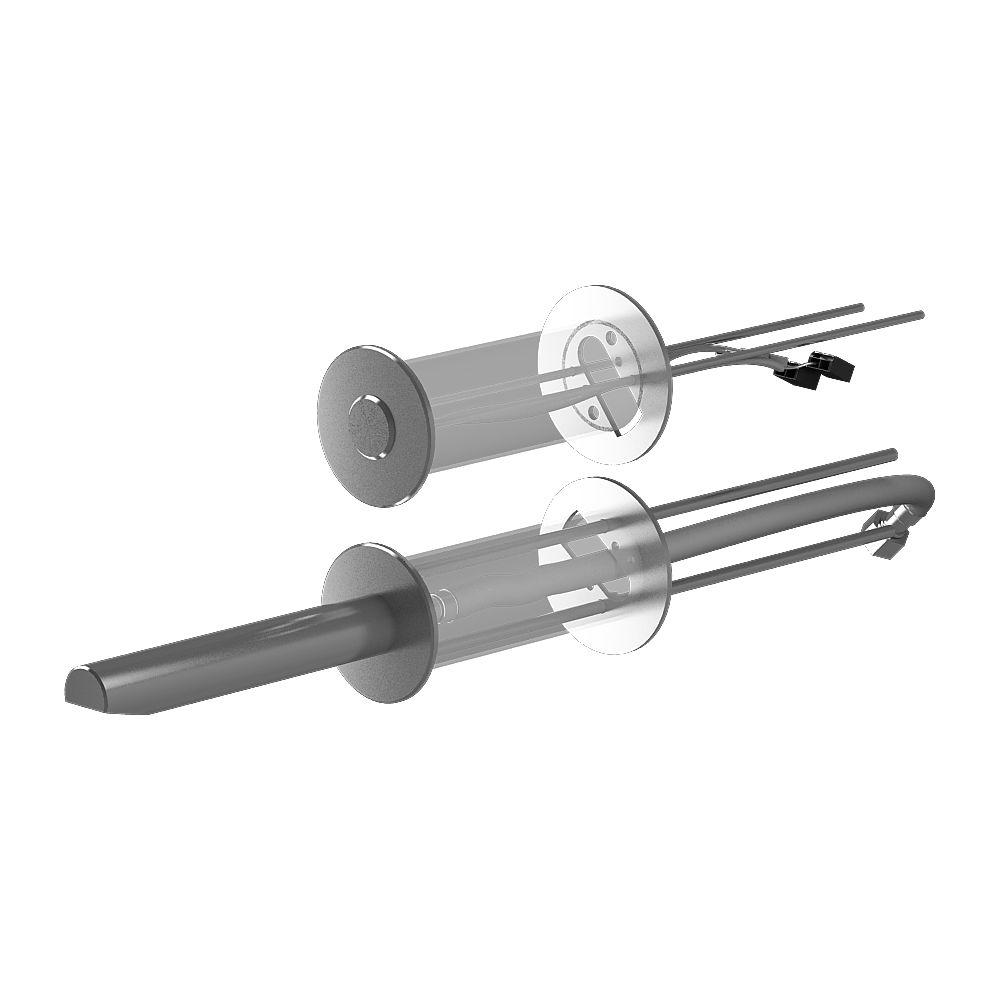

SLA 52B
Set of parts for mounting into the wall for SLU 39P
Characteristics
- is destined for wall installation of piezo stainless steel washbasin taps (SLU 39PX)
- rear assembling of piezo button by screws M4
- rear assembling of spout by screws M6
- during installation it is necessary to fasten the pipe (Htem DN 50) to reinforce the hole in the wall
- Order number: 06521
I am interested in more information:
Supply specification
SLA 52B - Supply No. 06521 - screw M4 (2 pcs.), screw M6 (2 pcs.), nut M4 (2 pcs.), nut M6 (2 pcs.), supporting pad (2 pcs.), hose
Technical information
| Depth of the wall: | max. 300 mm |
Downloads
- Mounting instructions (780.81 kB)
- Catalogue list (352.94 kB)
- 2D Drawing (125.25 kB)
