SLU 39PBX

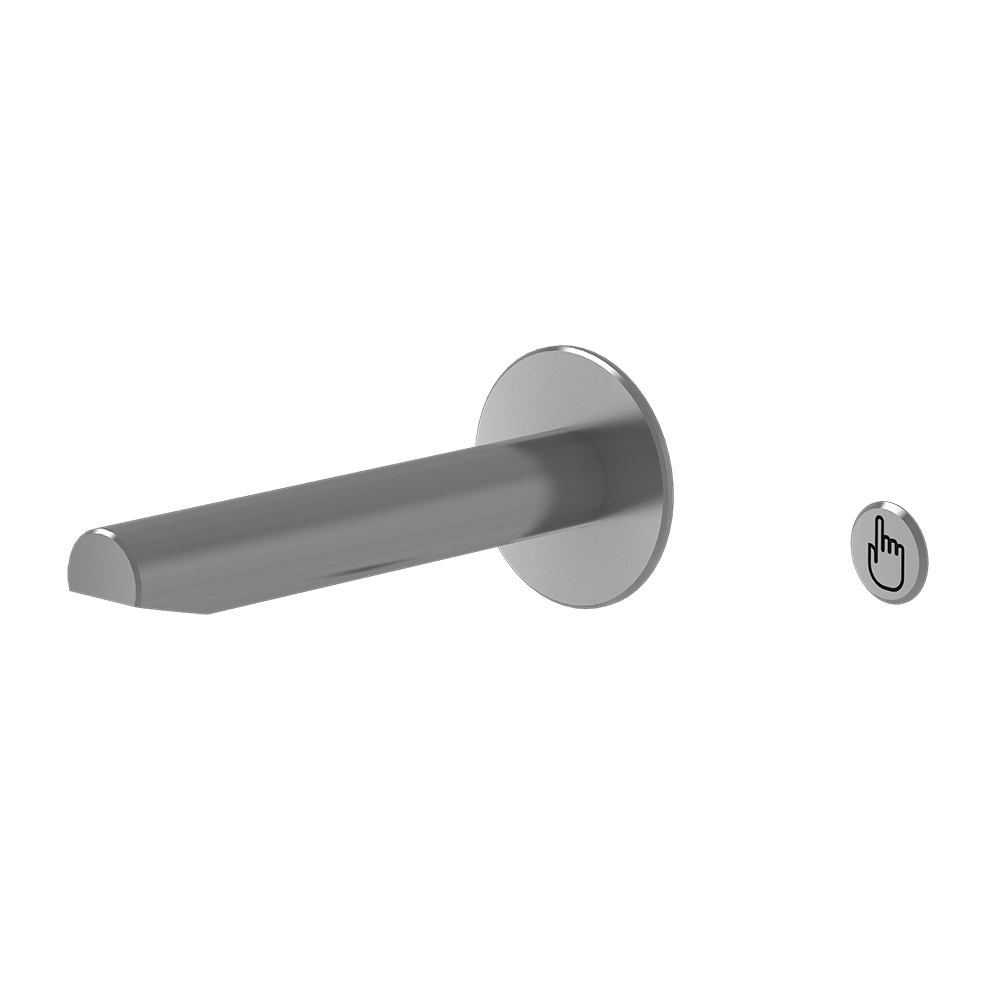

Set of stainless steel piezo wall-mounted washbasin tap for subsequent mounting, brushed, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • lead free
  • is destined for installation into the wall (necessary to use installation set SLA 52B)
  • is destined for installation into the sheets with a max. thickness of 5 mm
  • is destined for cold or premixed water
  • index X - brushed finish
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • monitoring of battery capacity
  • parameter adjustment using by the remote control SLD 04
  • Order number: 03395
I am interested in more information:

Supply specification

SLU 39PBX - Supply No. 03395 - faucet, piezo electronics, electromagnetic valve (1 pcs.), 4 psc. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: battery operated
control: piezo
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Set of parts for mounting into the wall…
Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min)
Thermostatic mixing valve 1/2” (20l/min)
Thermostatic mixing valve 3/4" (43l/min…
Thermostatic mixing valve 1" (53l/min.)
Thermostatic mixing valve 5/4" (82l/min…
Thermostatic mixing valve 6/4" (155l…
