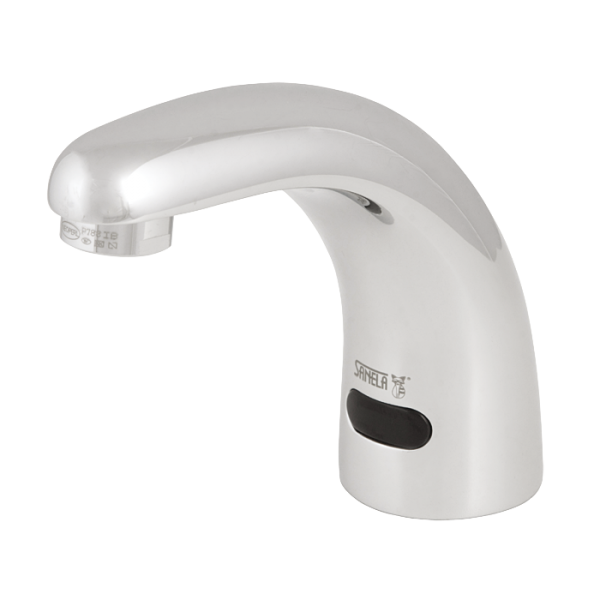

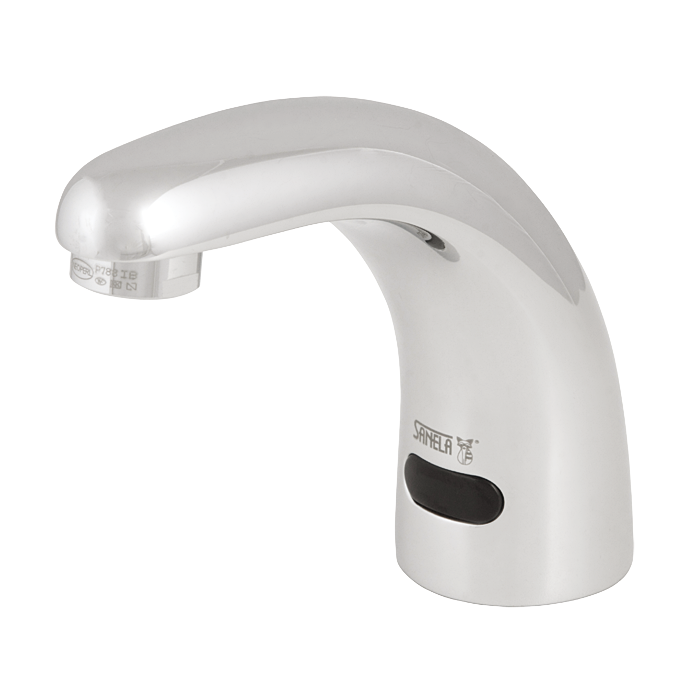

SLU 22B

Washbasin tap for cold and hot water, 9 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • SLU 22 is destined for cold and hot water, temperature is regulated by angle valves
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of batery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
Order number 03225
Code SLU 22B

Supply specification

SLU 22B - Supply No. 03225 - faucet with electronics, holder of electronics, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), lithium batteries SLA 09 with battery case

Technical information

Operating voltage: 9 V
Battery life: lithium 9 V, type U9VL (approx. 2 years (100 uses per day)
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
  • Print

Accessories

Lithium battery 9 V/1200 mAh, type U9VL
Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min…
Thermostatic mixing valve 1/2” (42l…
