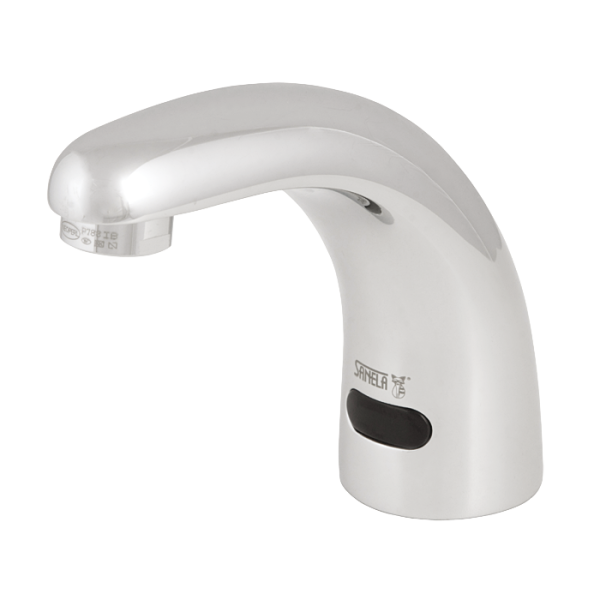

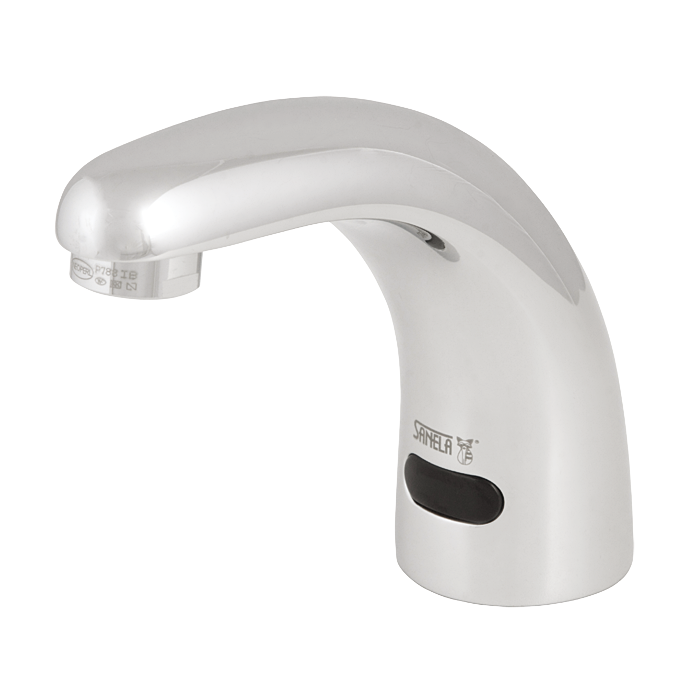

SLU 21B
Washbasin tap for cold or premixed water, 6 V
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- SLU 21 is destined for cold or premixed water
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 03215
I am interested in more information:
Supply specification
SLU 21B - Supply No. 03215 - faucet with electronics, holder of electronics, electromagnetic valve (1 pc.), connecting hoses, angle valve with fi lter (1 pc.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Material: | chrome |
Temperature regulation: | for cold or premixed water |
Power supply: | battery operated |
Control: | infra-red |
Operating voltage: | 6 V |
Battery life: | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day) |
Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 6 l/min. (inf. data) |
Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.19 MB)
- Catalogue list (151.32 kB)
- 2D Drawing (252.6 kB)
