SLSN 02PT

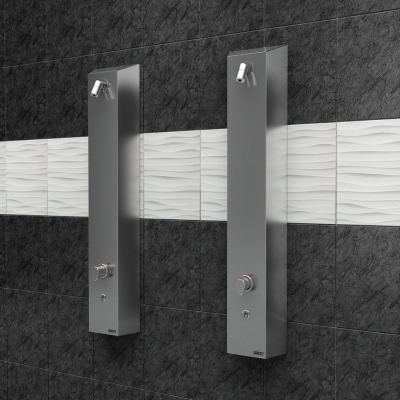

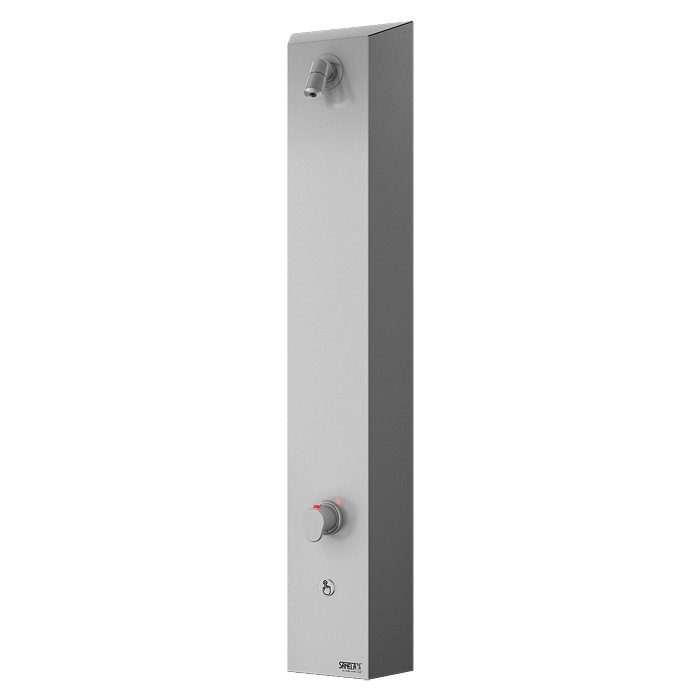

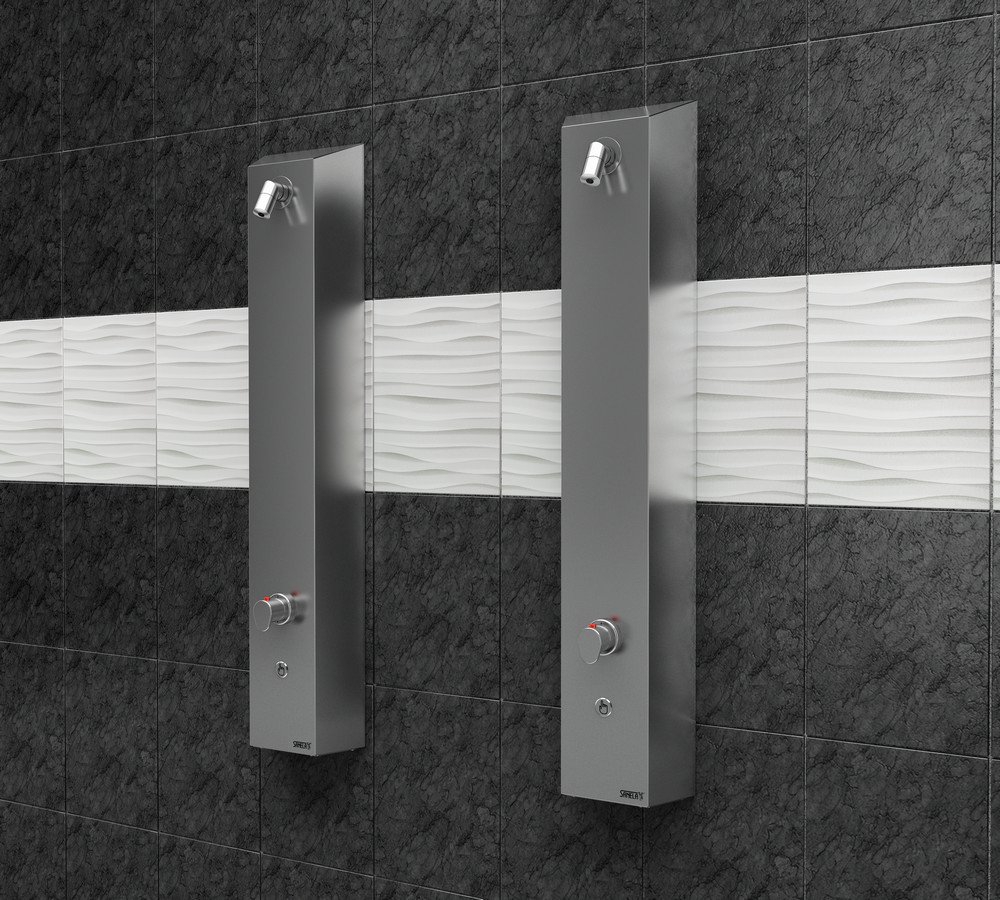

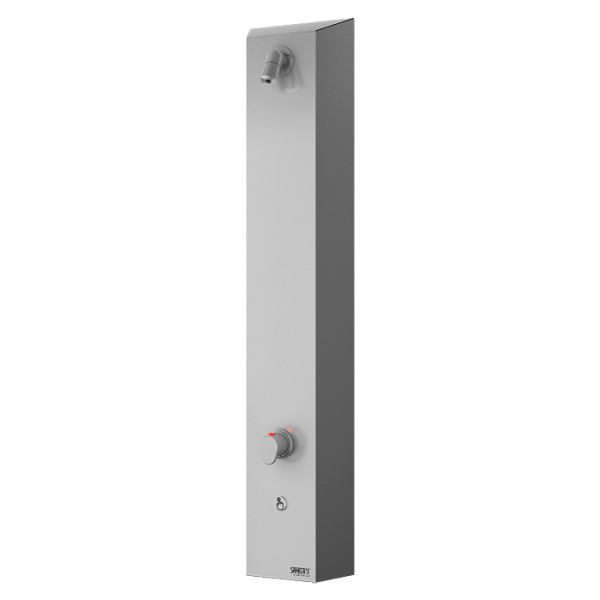

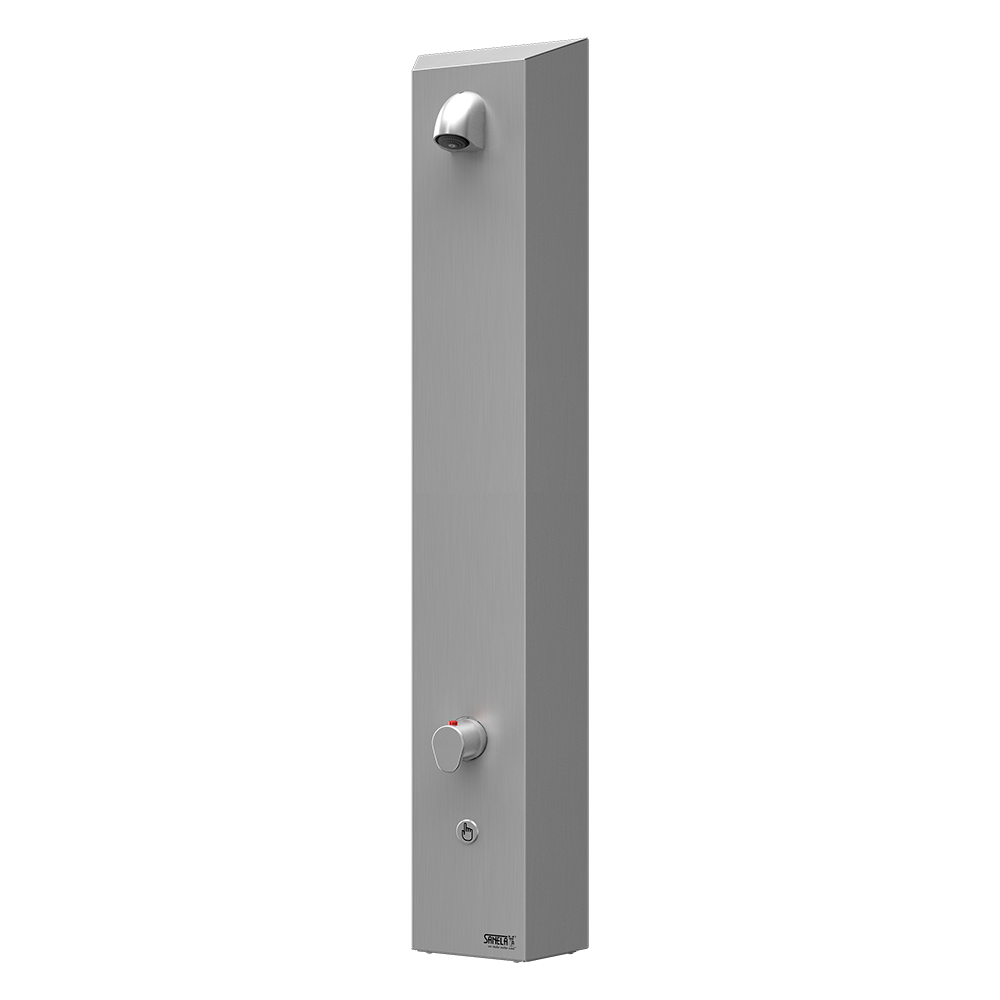

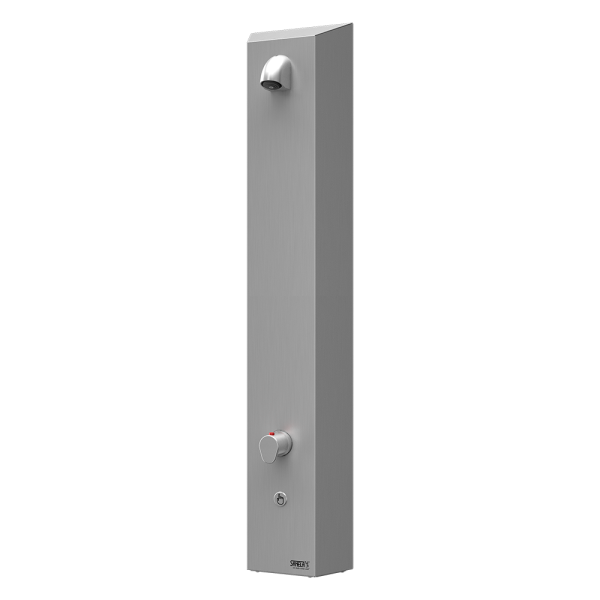

Stainless steel piezo shower panel with a thermostatic mixer, 24 V DC

Characteristics

  • hygienic flush
  • vandal-proof
  • stainless steel wall hung shower panels with integrated piezo electronics
  • with possibility to set an angle of water
  • SLSN 02PT is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 82021
I am interested in more information:

Supply specification

SLSN 02PT - Supply No. 82021 - stainless steel shower panel with piezo electronics, electromagnetic valve (1 pc.), thermostatic mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

material: stainless steel
temperature regulation: with thermostat
power supply: 24V DC
control: piezo
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"

Downloads

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
