SLSN 02PTB

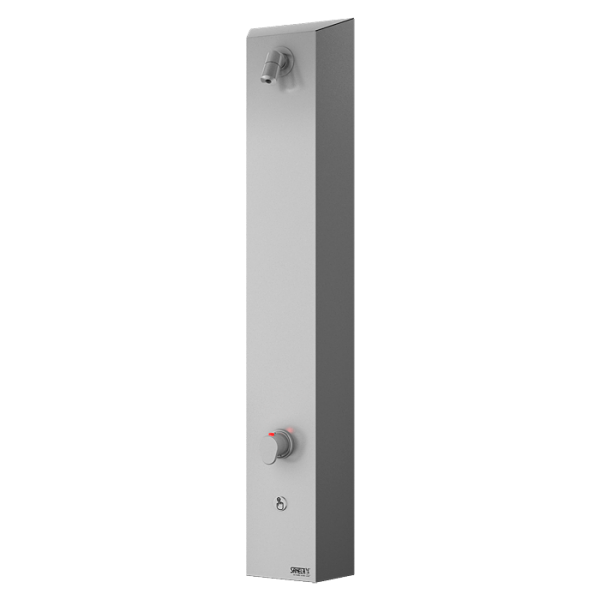

Stainless steel piezo shower panel with a thermostatic mixer, 6 V

Characteristics

  • hygienic flush
  • vandal-proof
  • stainless steel wall hung shower panels with integrated piezo electronics
  • with possibility to set an angle of water
  • SLSN 02PT is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
  • water could be stopped by follow-up soft push of piezo button
  • monitoring of battery capacity
  • parameter adjustment using by the remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 82022
I am interested in more information:

Supply specification

SLSN 02PTB - Supply No. 82022 - stainless steel shower panel with piezo electronics, electromagnetic valve (1 pc.), thermostatic mixer, connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

Material: stainless steel
Temperature regulation: with thermostat
Power supply: battery operated
Control: piezo
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 9 l/min. (inf. data)
Water inlet: male thread G 1/2"
