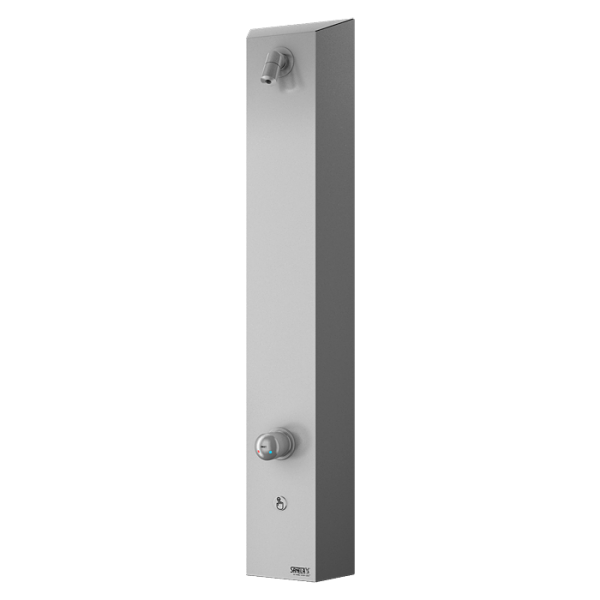

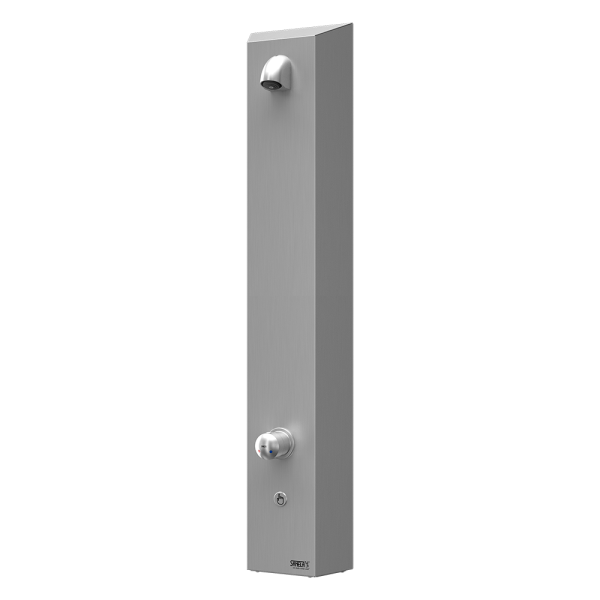

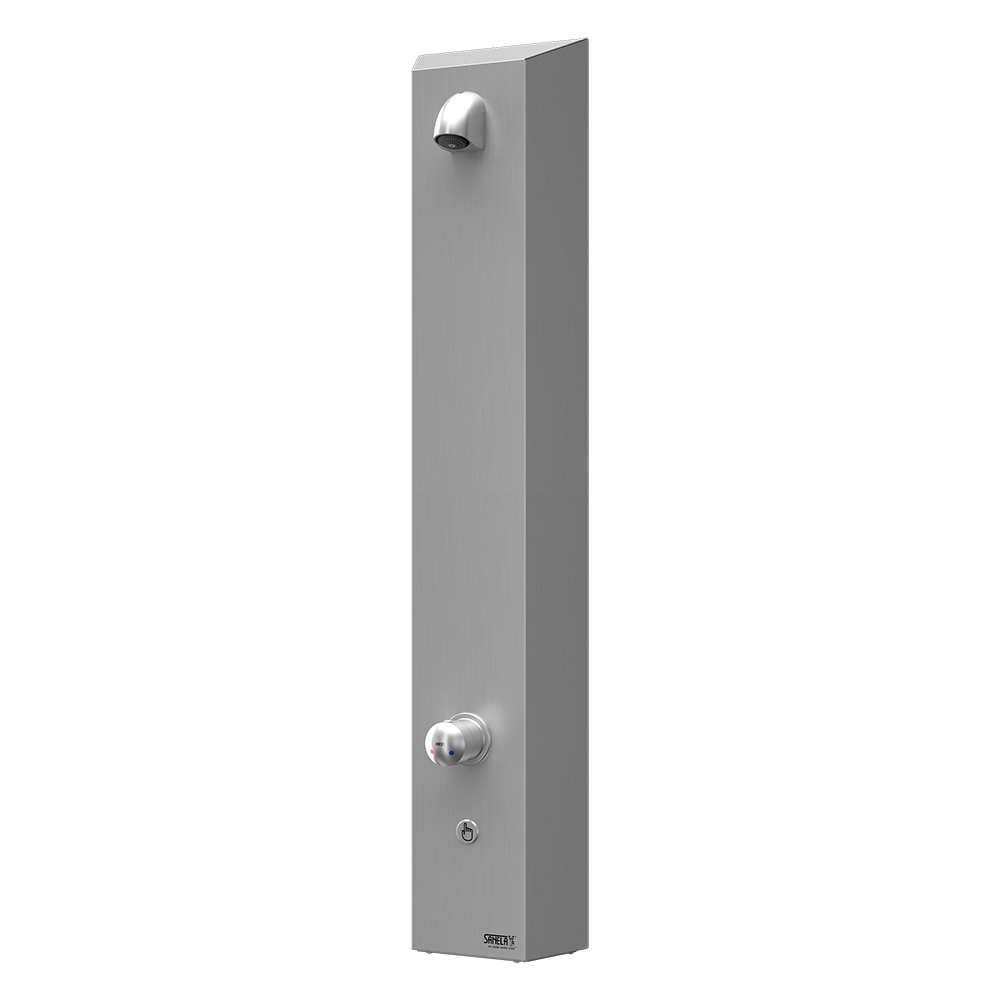

SLSN 02P
Stainless steel piezo shower panel with a mixer, 24 V DC
Characteristics
- hygienic flush
- vandal-proof
- stainless steel wall hung shower panels with integrated piezo electronics
- with possibility to set an angle of water
- SLSN 02P is destined for cold and hot water, temperature is regulated by mixer
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 92028
I am interested in more information:
Supply specification
SLSN 02P - Supply No. 92028 - stainless steel shower panel with piezo electronics, electromagnetic valve (1 pc.), mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)
Technical information
| Material: | stainless steel |
| Temperature regulation: | with mixer |
| Power supply: | 24V DC |
| Control: | piezo |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 9 l/min. (inf. data) |
| Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (3.25 MB)
- Catalogue list (281.42 kB)
- 2D Drawing (912.07 kB)
