SLSN 02PB

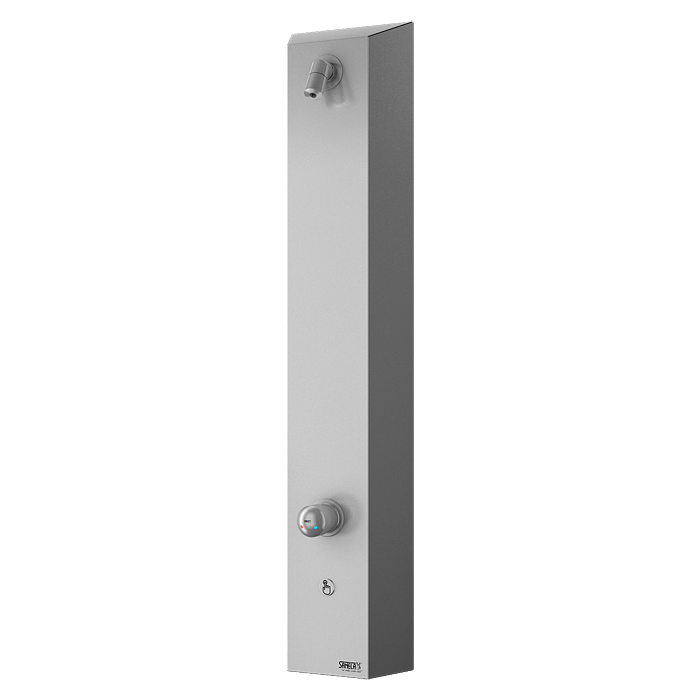

Stainless steel piezo shower panel with a mixer, 6 V

Characteristics

hygienic flush
vandal-proof
stainless steel wall hung shower panels with integrated piezo electronics
with possibility to set an angle of water
SLSN 02P is destined for cold and hot water, temperature is regulated by mixer
water flows after soft push of the piezo button
water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
water could be stopped by follow-up soft push of piezo button
monitoring of battery capacity
parameter adjustment using by the remote control SLD 04
material AISI - 304
brushed finish

Order number	92029
Code	SLSN 02PB

Supply specification

SLSN 02PB - Supply No. 92029 - stainless steel shower panel with piezo electronics, electromagnetic valve (1 pc.), mixer, connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

Operating voltage: 6V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
