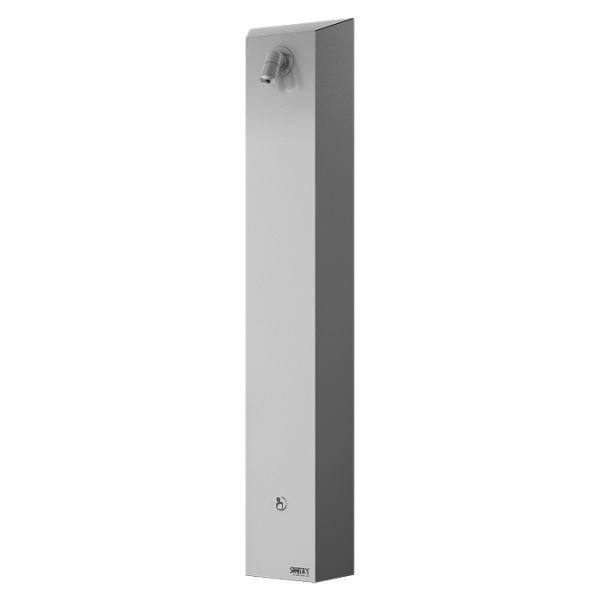

SLSN 01P
Stainless steel piezo shower panel for cold or premixed water, 24 V DC
Characteristics
- hygienic flush
- vandal-proof
- stainless steel wall hung shower panels with integrated piezo electronics
- with possibility to set an angle of water
- SLSN 01P is destined for cold or premixed water
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 92018
I am interested in more information:
Supply specification
SLSN 01P - Supply No. 92018 - stainless steel shower panel with piezo electronics, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.)
Technical information
Material: | stainless steel |
Temperature regulation: | for cold or premixed water |
Power supply: | 24V DC |
Control: | piezo |
Operating voltage: | 24 V DC |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 9 l/min. (inf. data) |
Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (1.45 MB)
- Catalogue list (281.42 kB)
- 2D Drawing (349.98 kB)
