SLP 49B

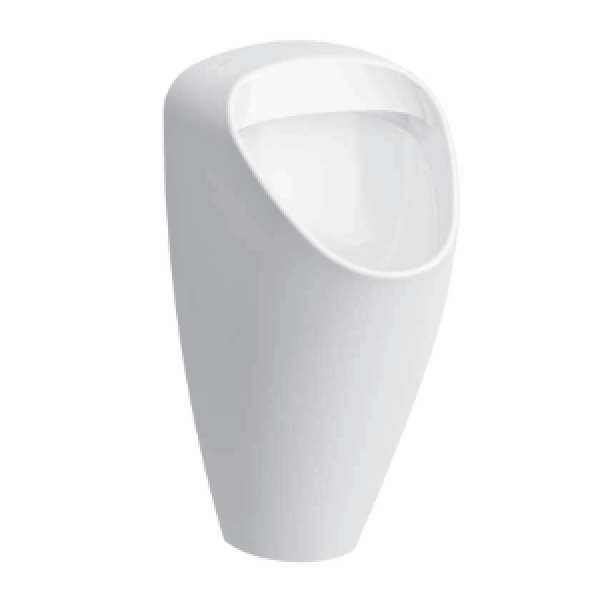

Urinal Caprino Plus Rimless with a radar flushing unit, 6 V (plug & play)
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01492
I am interested in more information:
Supply specification
SLP 49B - Supply No. 01492 - ceramic urinal with radar flush including Bluetooth module, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Operating voltage: | 6 V |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (3.96 MB)
- Catalogue list (292.51 kB)
- Mounting diagram (384.25 kB)
- 2D Drawing (106.49 kB)
