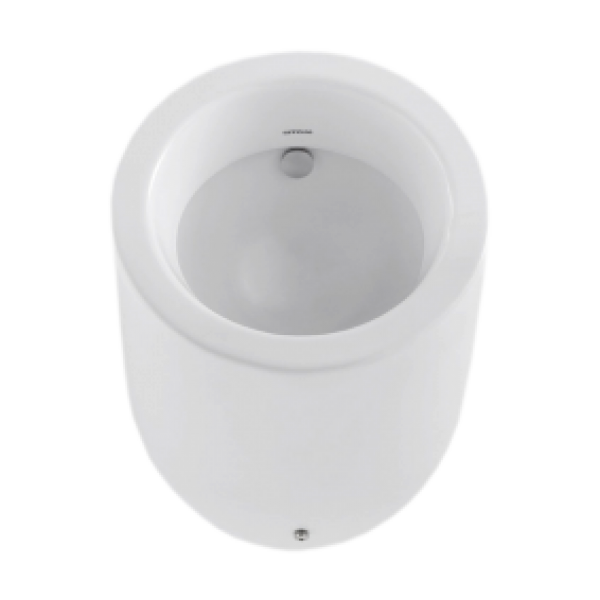

SLP 82RS
Urinal WCA with radar flushing unit, 24 V DC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01820
Supply specification
SLP 82RS - Supply No. 01820 - ceramic urinal with the radar flushing unit, electromagnetic valve, connecting hoses, angle valve, inlet fitting, siphon, paper drill template, mounting set
Technical information
| power supply: | 24V DC |
| location: | behind the urinal |
| flushing unit: | urinal included |
| control: | radar |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting |
Downloads
- Mounting instructions (687.68 kB)
- Catalogue list (254.01 kB)
- Mounting diagram (54.89 kB)
