SLP 82RB

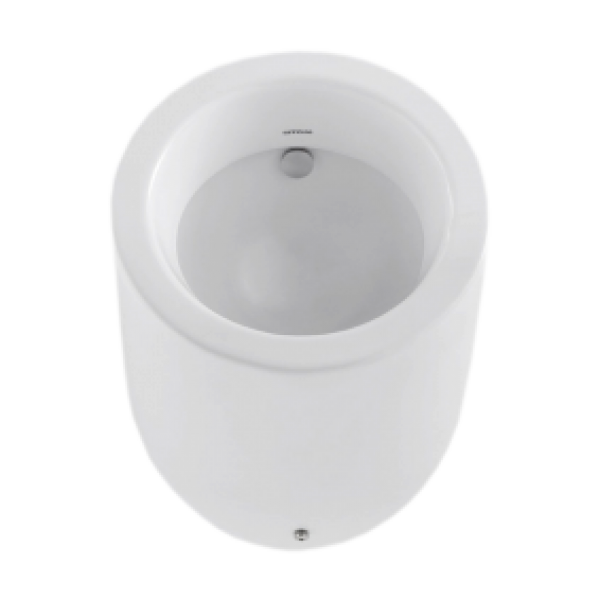

Urinal WCA with radar flushing unit, 6 V (plug & play)
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01821
I am interested in more information:
Supply specification
SLP 82RB - Supply No. 01821 - ceramic urinal with the radar flushing unit, electromagnetic valve, connecting hoses, angle valve, inlet fitting, siphon, paper drill template, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Power supply: | battery operated |
Location: | behind the urinal |
Flushing unit: | urinal included |
Control: | radar |
Operating voltage: | 6 V |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | inlet fitting |
Downloads
- Mounting instructions (3.57 MB)
- Catalogue list (143.6 kB)
- Mounting diagram (479.8 kB)
