SLZN 84F
Behind mirror automatic wahsbasin tap with soap dispenser, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- lead free

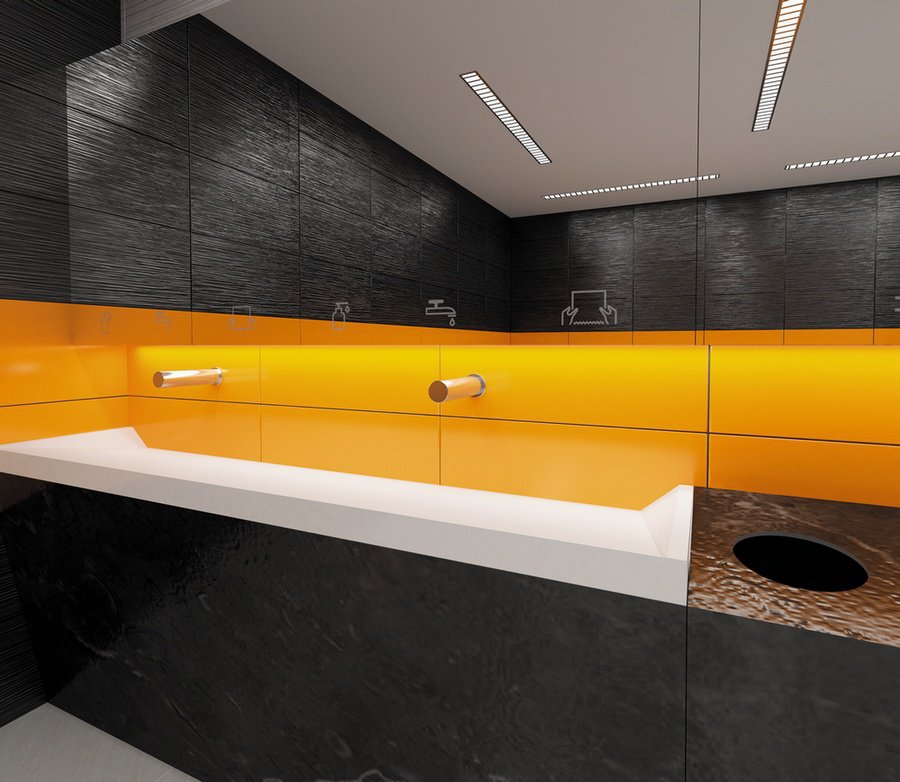

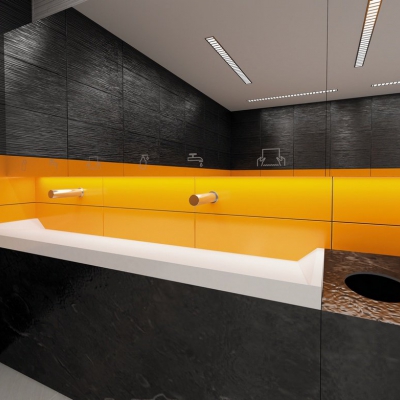

- automatic wall-mounted tap with soap dispenser behind mirror with electronics ALS

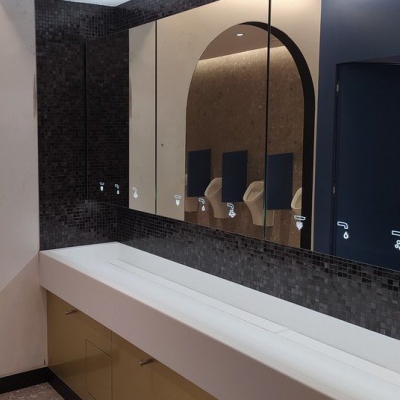

- mounting behind mirror
- easy soap refilling
- soap economy
- one dose of soap is flowing as hands are in the active range under the mirror (can be set in range 1,3 - 13 s), standard 2,6 s
- use in the public sector, container for soap 5 l
- tap is destined for cold or premixed water
- water if flowing as long as hands are in the active range under the mirror
- water stops flowing after removal of hands from the active range sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 85842
I am interested in more information:
Supply specification

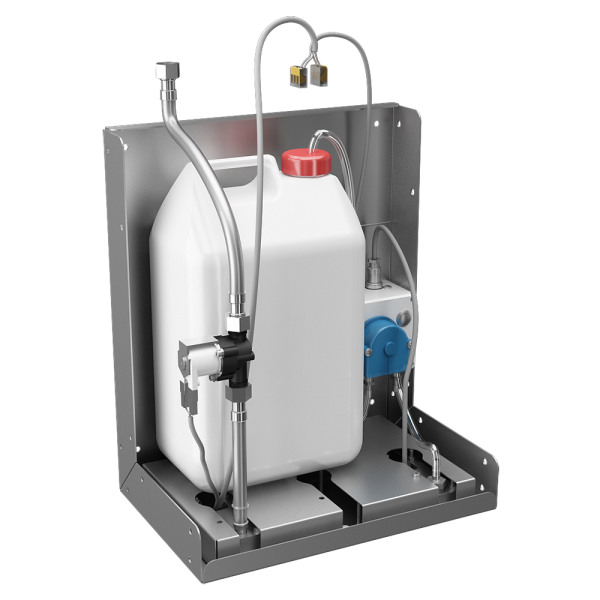

SLZN 84F - Supply No. 85842 - stainless steel mounting holder with spout, soap dispenser and electronics, electromagnetic valve, connecting hoses, angle valve with filter, inlet hoses, pump for liquid soap, container for soap 5 l
Technical information
| Dimensions: | 330 x 200 x 300 mm |
| Operating voltage: | 24 V DC |
| Active range of the tap: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Active range of the soap dispenser: | 0,14 - 0,2 m |
| Recommended soap viscosity: | 10 mPa*s - 5000 mPa*s (don‘t use chemical solvents and disinfection) |
