SLZN 84A
Behind mirror soap dispenser, 24 V DC
Characteristics

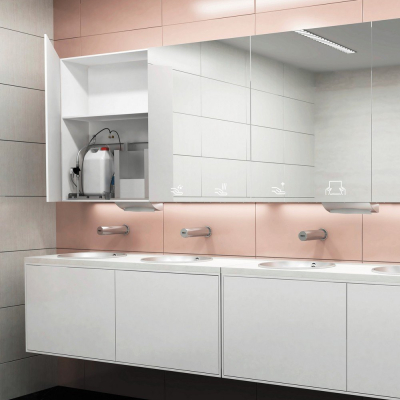

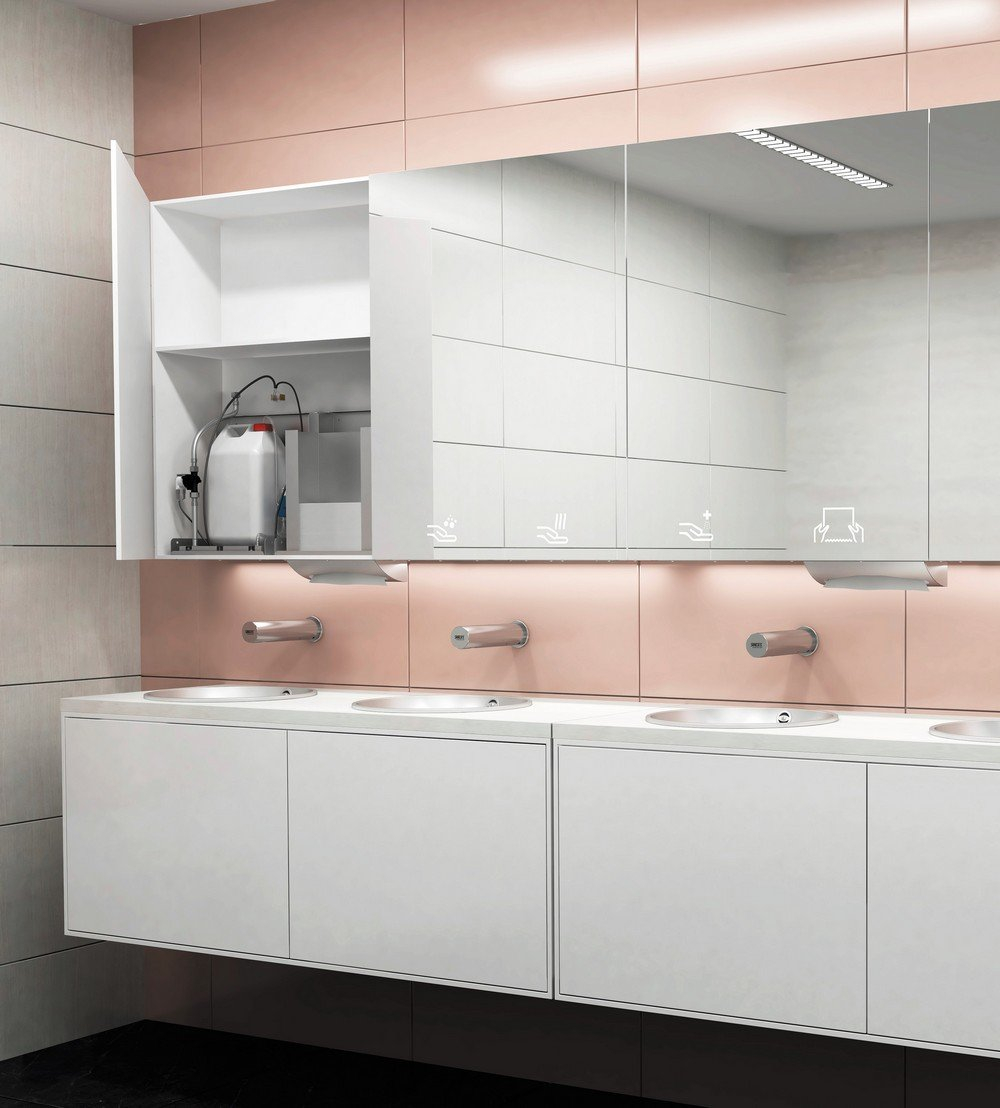

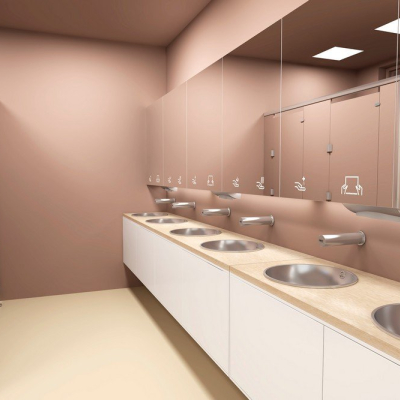

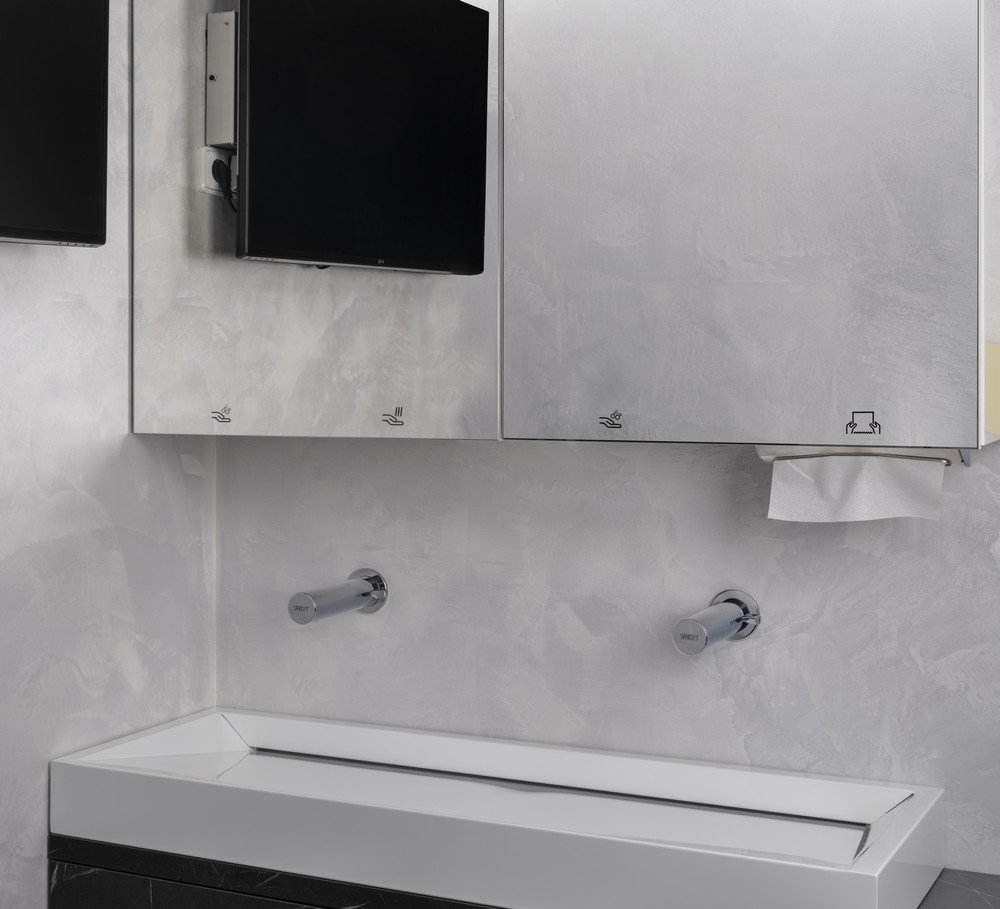

- automatic wall-mounted soap dispenser behind mirror
- inner plastic container ABS
- mounting behind mirror
- easy soap refilling
- soap economy
- one dose of soap is flowing as hands are in the active range under the mirror (can be set in range 1,3 - 13 s), standard 2,6 s
- use in the public sector, container for soap 5 l
- parameters adjustment using by the remote control SLD 03
- material stainless steel AISI 304 (1.4301)
- Order number: 85840
I am interested in more information:
Supply specification

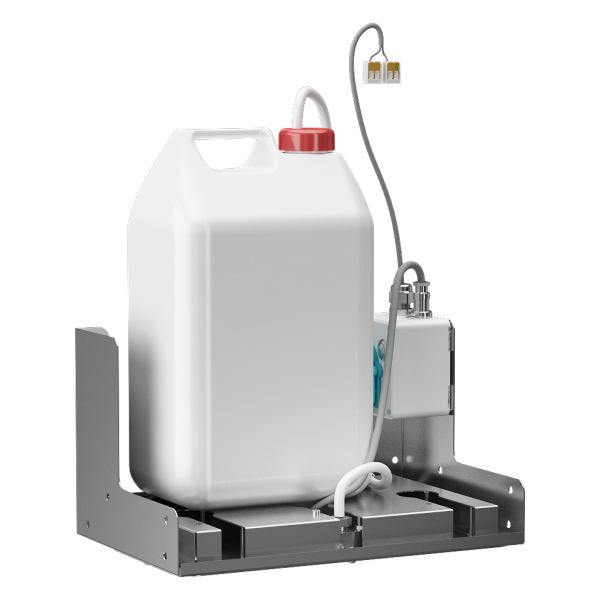

SLZN 84A - Supply No. 85840 - stainless steel mounting holder with soap dipenser and electronics, inlet hoses, pump for liquid soap, container for soap 5 l
Technical information
| Dimensions: | 330 x 200 x 300 mm |
| Weight: | 1,6 kg |
| Thickness of stainless steel material: | 1 mm |
| Volume: | 5 l |
| Operating voltage: | 24 V DC |
| Active range: | 0,14 - 0,2 m |
| Recommended soap viscosity: | 10 mPa*s - 5000 mPa*s (don‘t use chemical solvents and disinfection) |
Downloads
- Mounting instructions (4.77 MB)
- Catalogue list (248.67 kB)
- 2D Drawing (382.08 kB)
