SLZN 84D

Behind mirror automatic washbasin tap, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • lead free
  • automatic wall-mounted tap behind mirror with electronics ALS
  • mounting behind mirror
  • is destined for cold or premixed water
  • water if flowing as long as hands are in the active range under the mirror
  • water stops flowing after removal of hands from the active range sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 85841

Supply specification

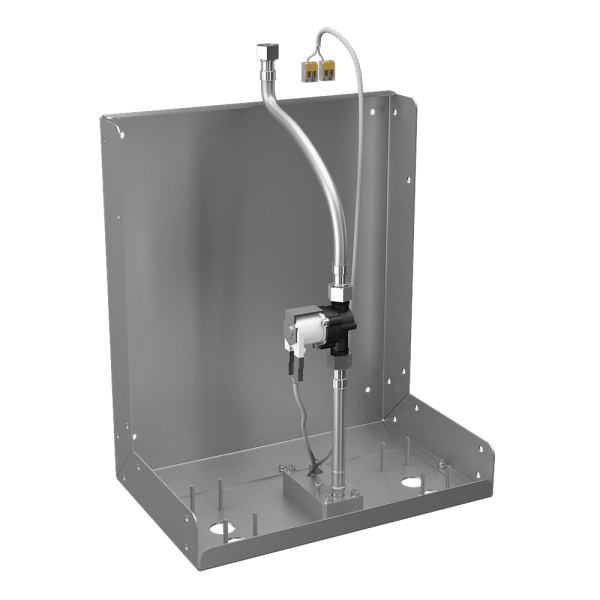

SLZN 84D - Supply No. 85841 - stainless steel mounting holder with spout and electronics, electromagnetic valve, connecting hoses, angle valve with filter

Technical information

Dimensions: 355 x 200 x 300 mm
Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
