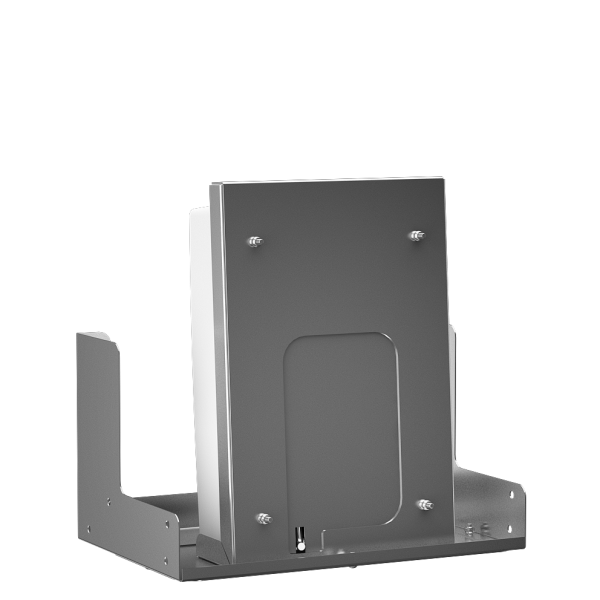

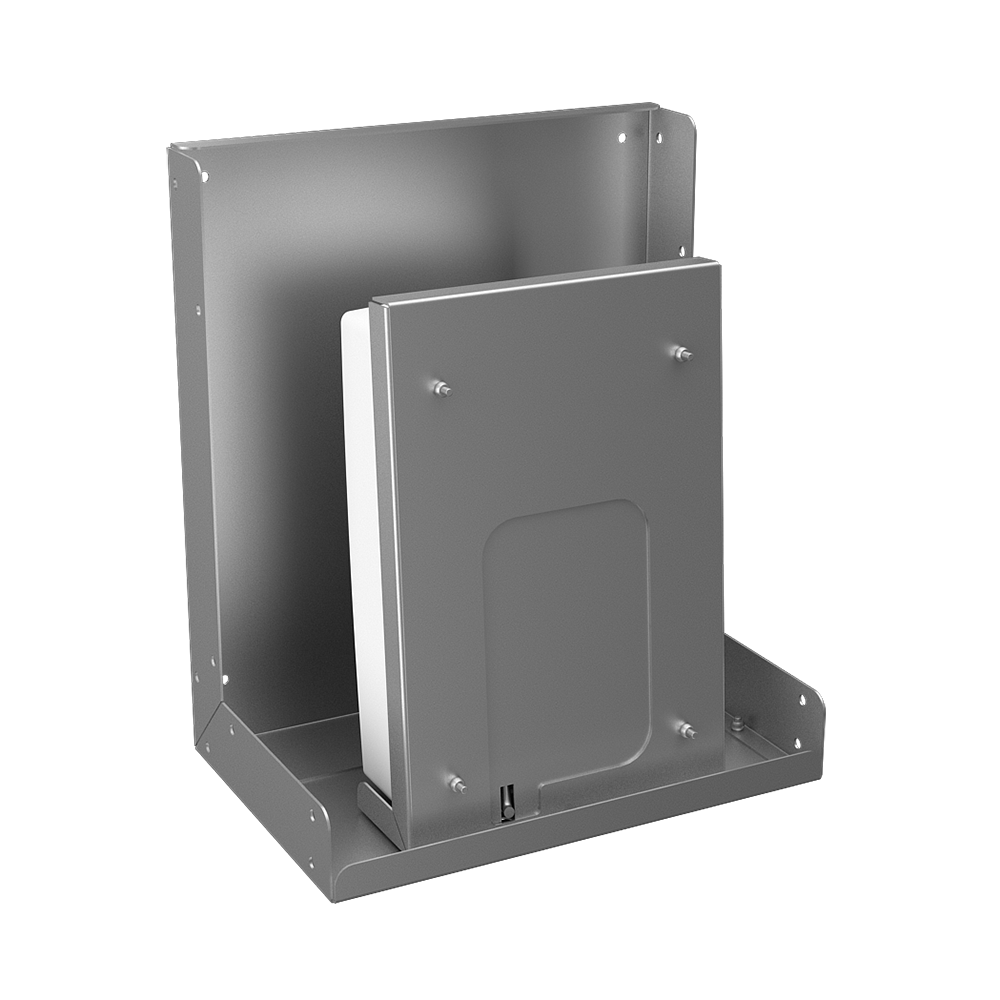

SLZN 84G

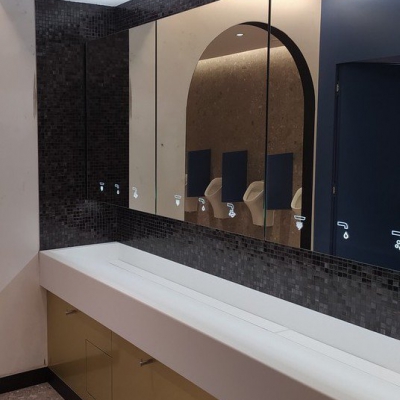

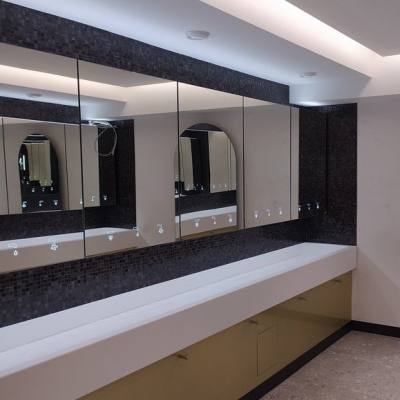

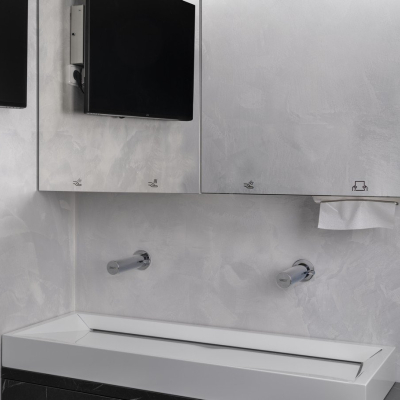

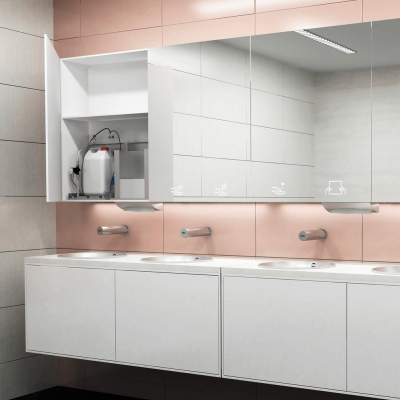

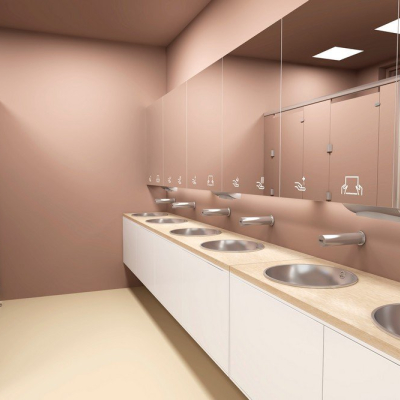

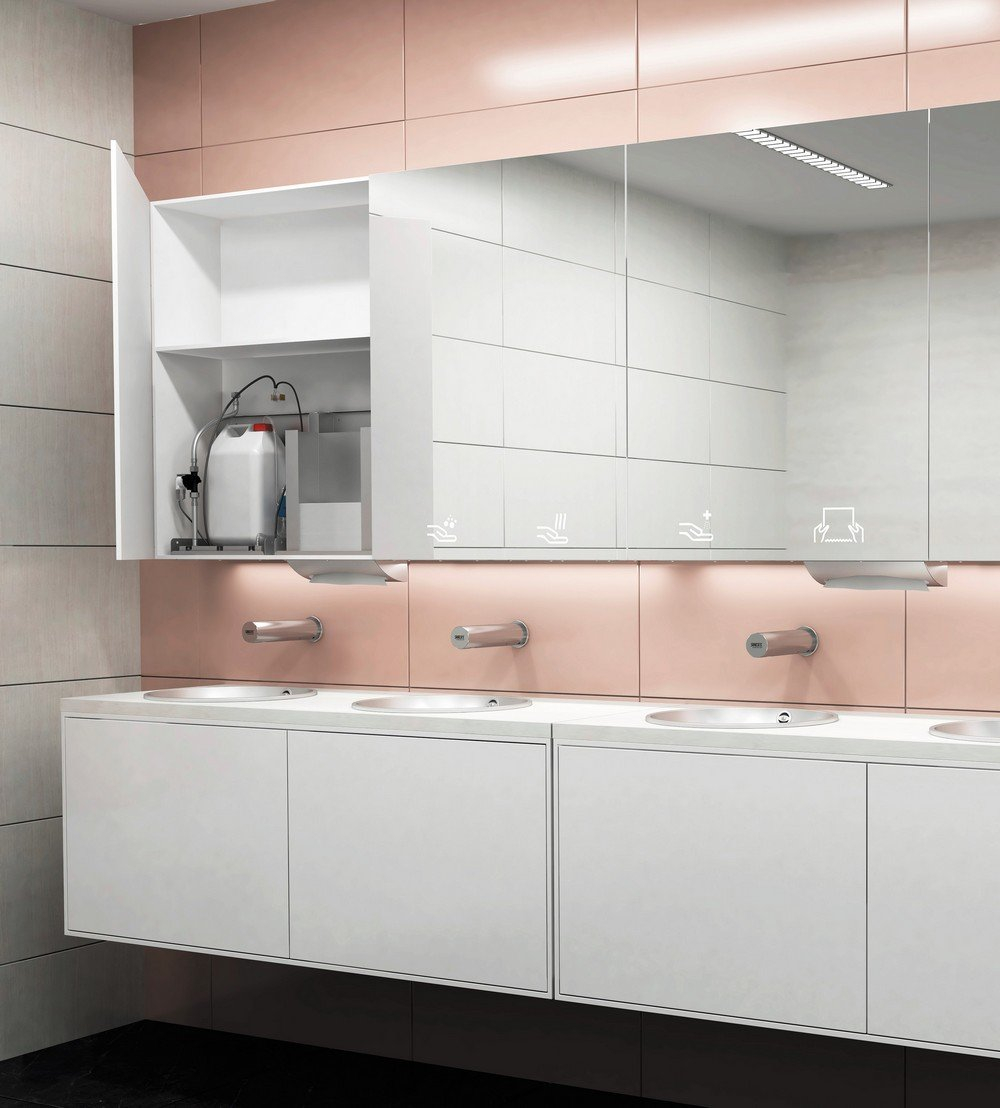

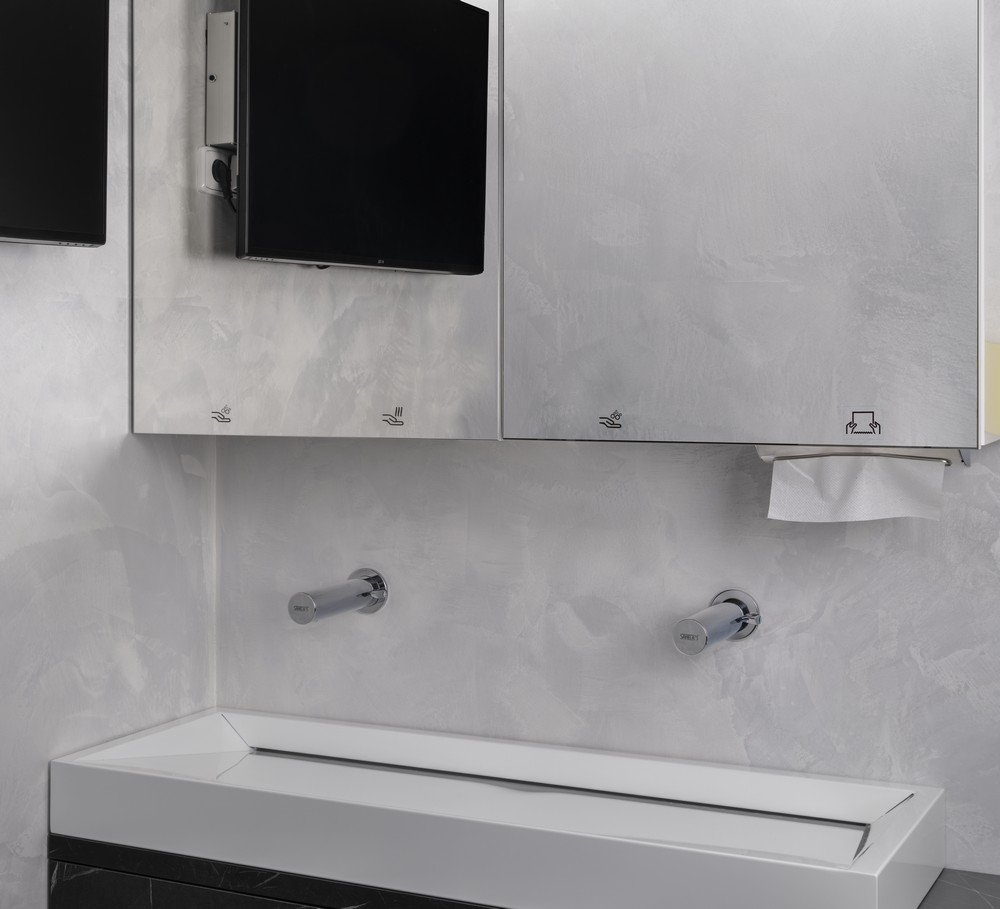

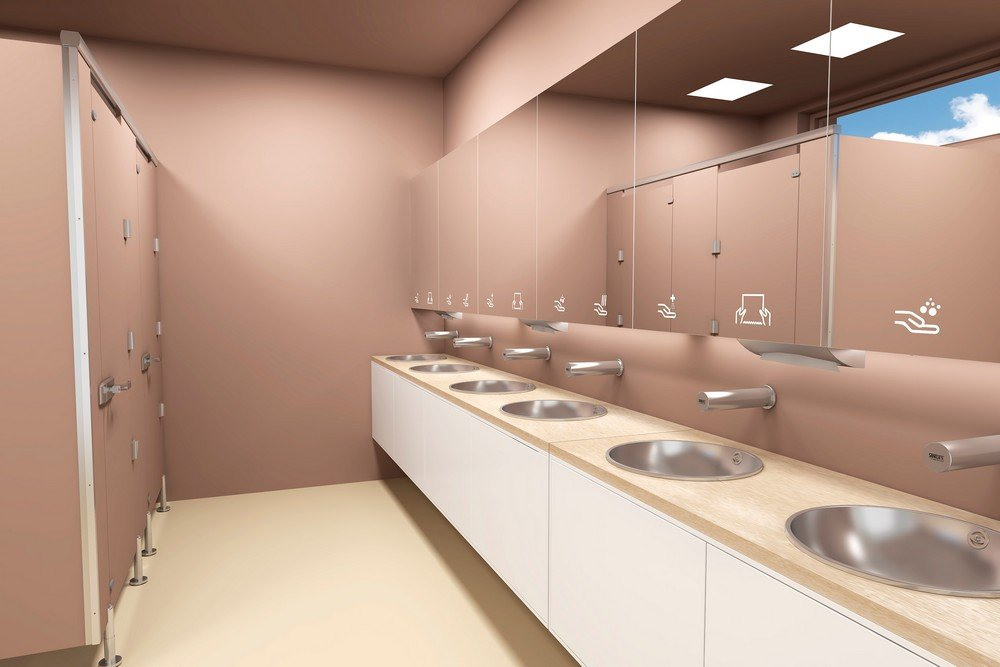

Automatic hand dryer for installation behind a mirror
Characteristics
- automatic touchless hand dryer for installation behind the mirror
- Includes an antibacterial filter, with the option to turn of the heating
- responds to hand approach under the mirror by releasing a stream of warm air
- brush motor
- stainless steel material: AISI 304 (1.4301)
The device must be installed outside the wash area!
- Order number: 85843
I am interested in more information:
Supply specification
SLZN 84G - Supply No. 85843 - Stainless steel module with hand dryer
Technical information
| Dimensions: | 296 x 200 x 300 mm |
| Weight: | 3,88 kg |
| Material thickness: | 1,5 mm |
| Supply voltage: | 220 - 240 V AC |
| Frequency: | 50 - 60 Hz |
| Power input: | 1000 W |
| Air velocity: | 191 - 300 km / h |
| Protection rating: | Class II, IP 23 |
| Noise level: | 68 - 75 dB |
| Carbon brush lifetime: | aprox. 1,000 hours |
Downloads
- Mounting instructions (3.33 MB)
- Catalogue list (371.24 kB)
- 2D Drawing (642.1 kB)
