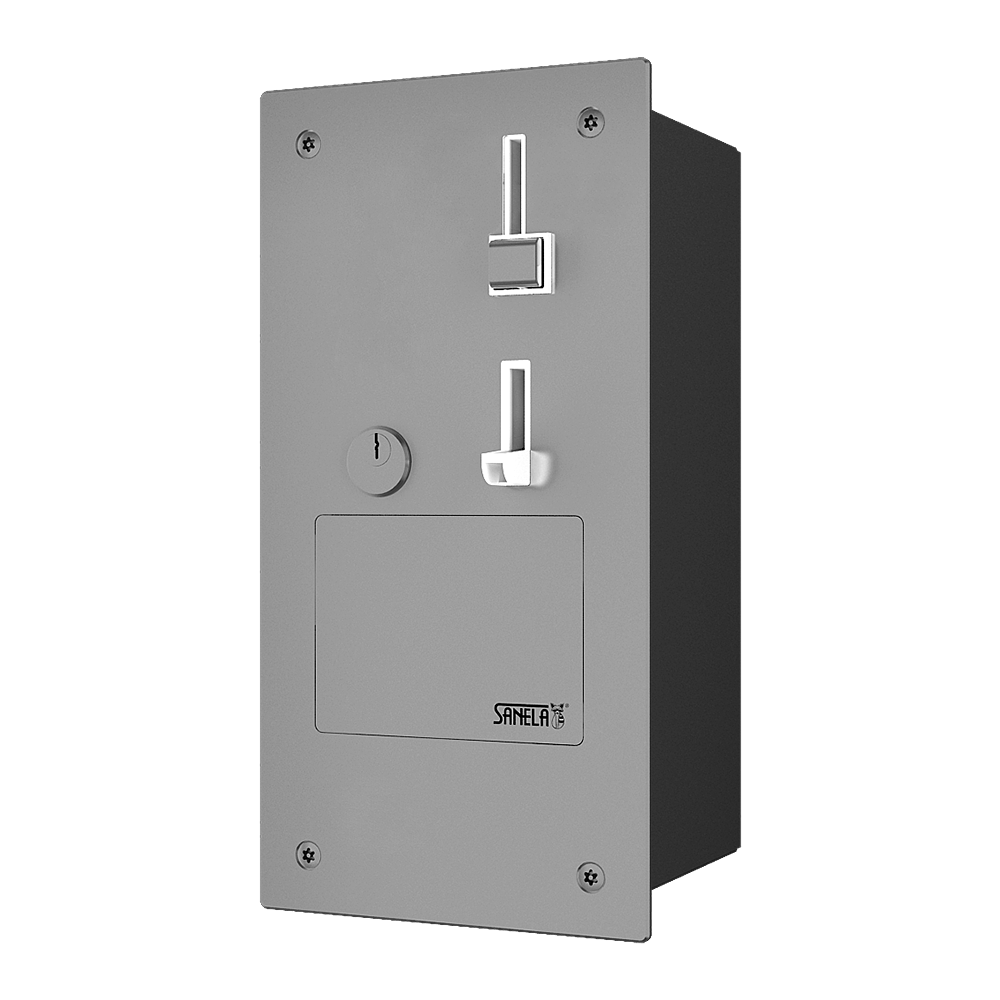

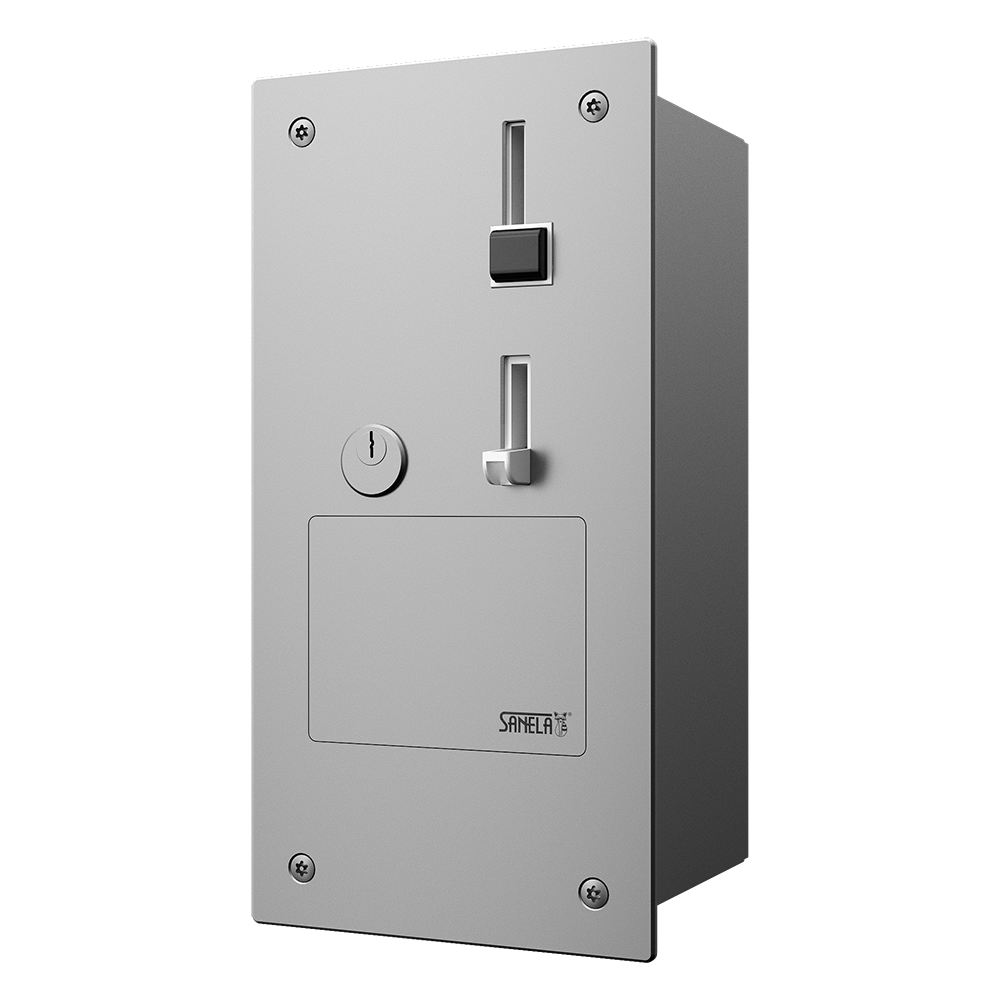

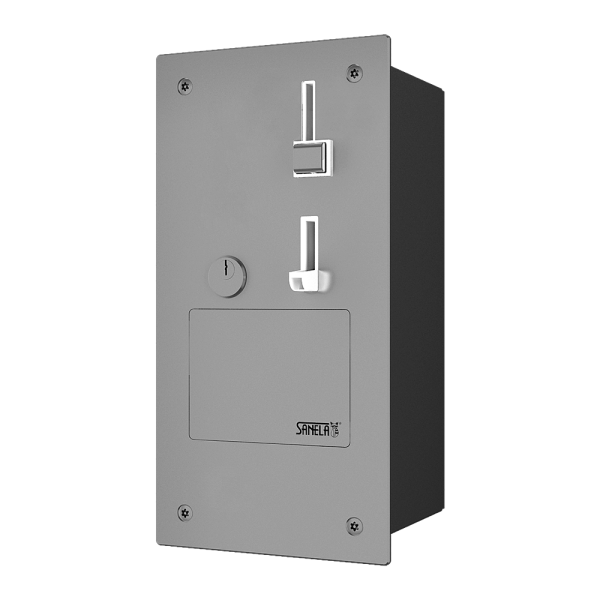

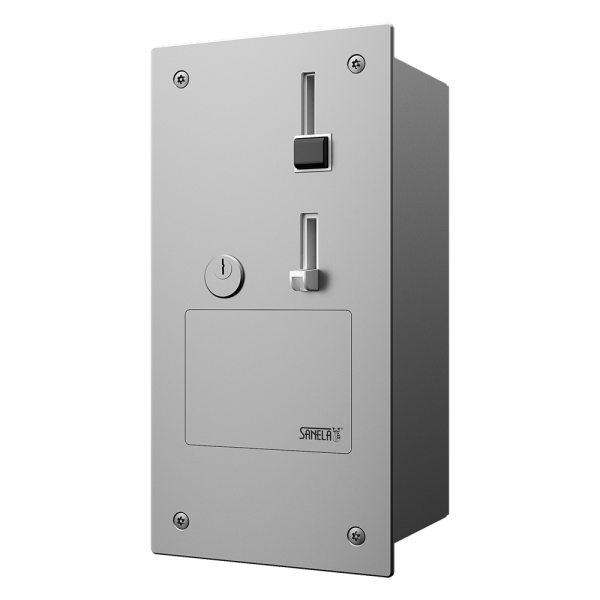

SLZA 03MZ
Recessed coin and token shower timer, 24 V DC, direct control
Characteristics
- hygienic flush
- vandal-proof
- direct control
- after inserting a coin or a token the machine starts water flow on several seconds in the shower
- 30 s before the end of water supply the user is warned by interrupting of water flow
- the machine adds up the coins but does not return
- index Z - recessed
- parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time delay of switch on, possible activation of hygienic flush, time value, current euro exchange, token value)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- brushed finish
- Order number: 88032
I am interested in more information:
Supply specification
SLZA 03MZ - Supply No. 88032 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.), mounting frame
Technical information
| Niche dimensions: | 265 x 127 x 125 mm |
| Operating voltage: | 24 V DC |
| Accepted coins: | 1 and 2 €, token |
| (OTHER CURRENCIES ON REQUEST) | |
| Switch on delay: | 0 – 300 sec., standard 30 sec. |
| Showering time: | 5 - 1200 sec. |
Downloads
- Mounting instructions (1.78 MB)
- User guide (26.53 kB)
- Catalogue list (755.24 kB)
- Circuit diagram (2.23 MB)
- 2D Drawing (258.68 kB)
Required accessories
