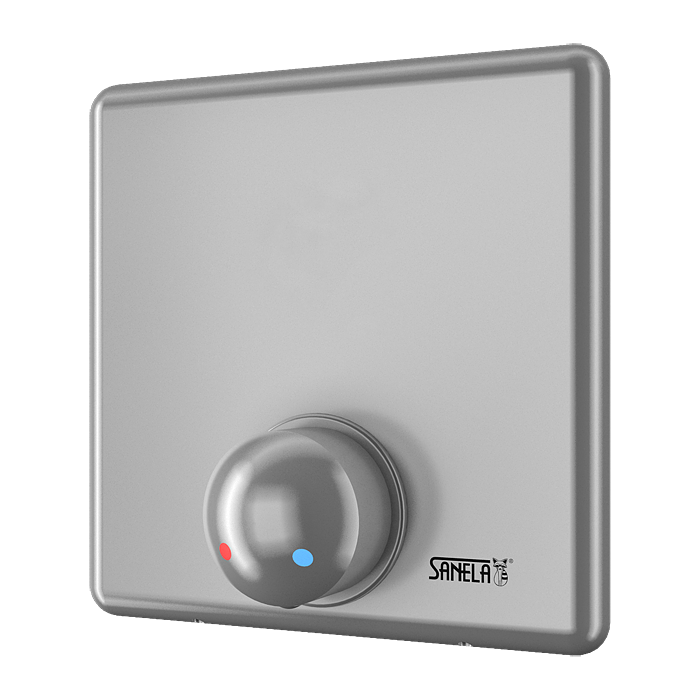

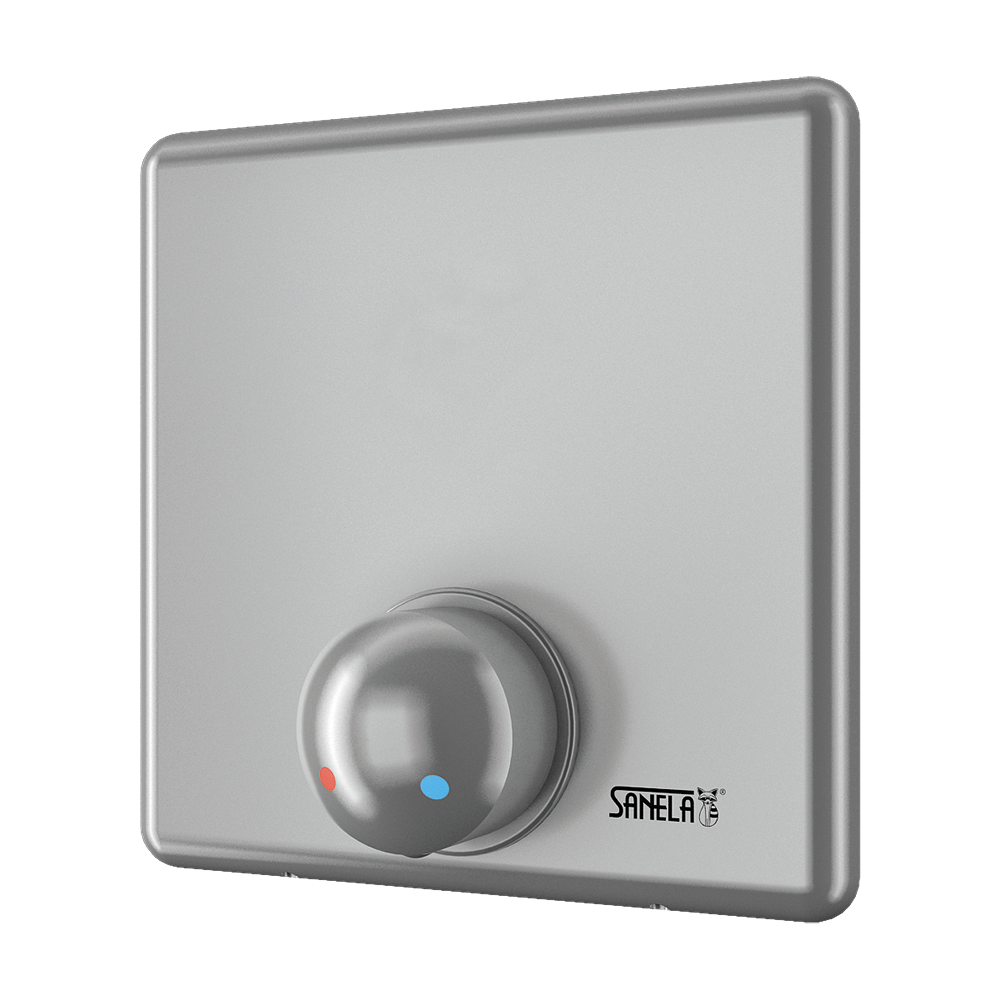

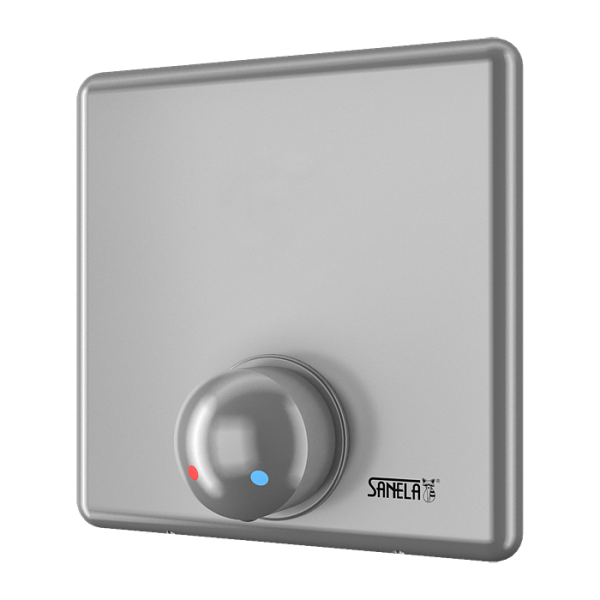

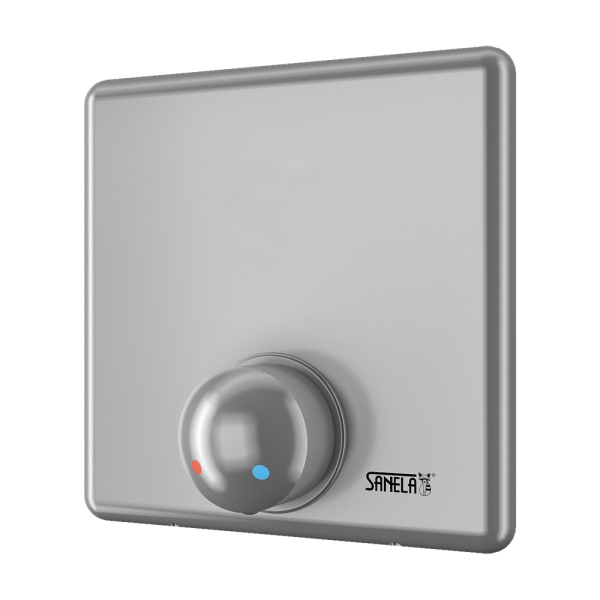

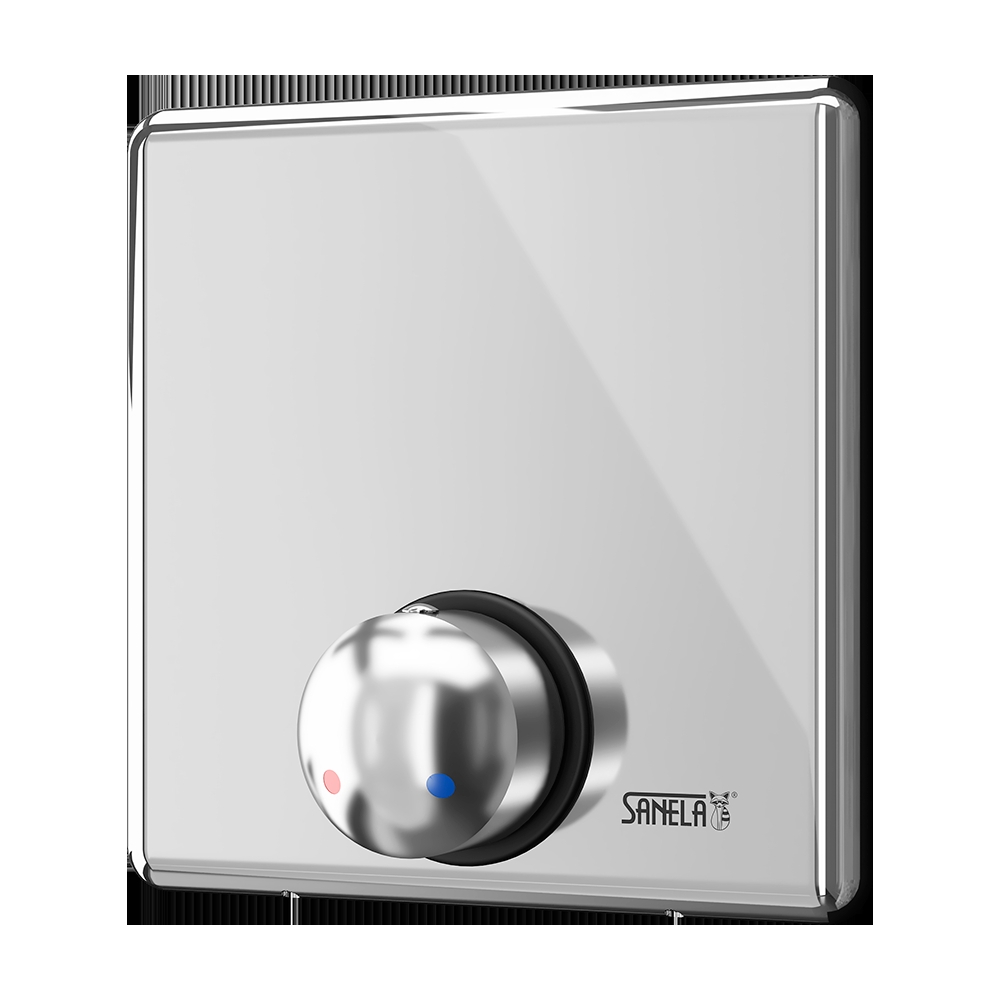

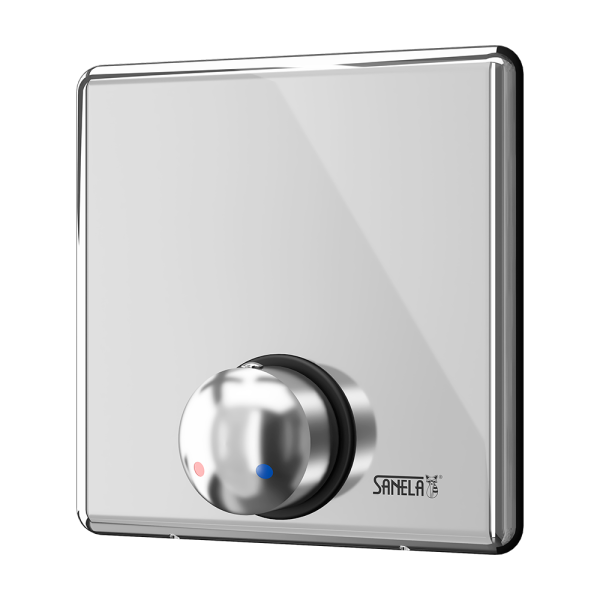

SLZA 20H
Shower control without piezo button for coin and token shower timers with index M - for cold and hot water, temperature regulated by mixer
Characteristics
- hygienic flush
- shower control for coin and token machines with index M
- is intended for supplying hot and cold water, temperature adjustment by mixing cartridge
- polished finish
- Order number: 88205
I am interested in more information:
Supply specification
SLZA 20H - Supply No. 88205 - stainless steel cover, stainless steel mounting box with screw connection, solenoid valve, ball valve and mixing cartridge
Technical information
| Stainless steel cover dimensions: |
170 x 170 x 10 mm |
| Mounting box dimensions: |
155 x 160 x 70 mm |
| Recommended working pressure: |
0.1 - 0.6 MPa |
| Flow rate: |
12 l/min. (inf. data) |
| Water inlet: |
external thread G 3/4" |
| Water outlet: |
external thread G 3/4" |
Downloads
- Mounting instructions (3.23 MB)
- Catalogue list (214.9 kB)
- 2D Drawing (309.22 kB)
