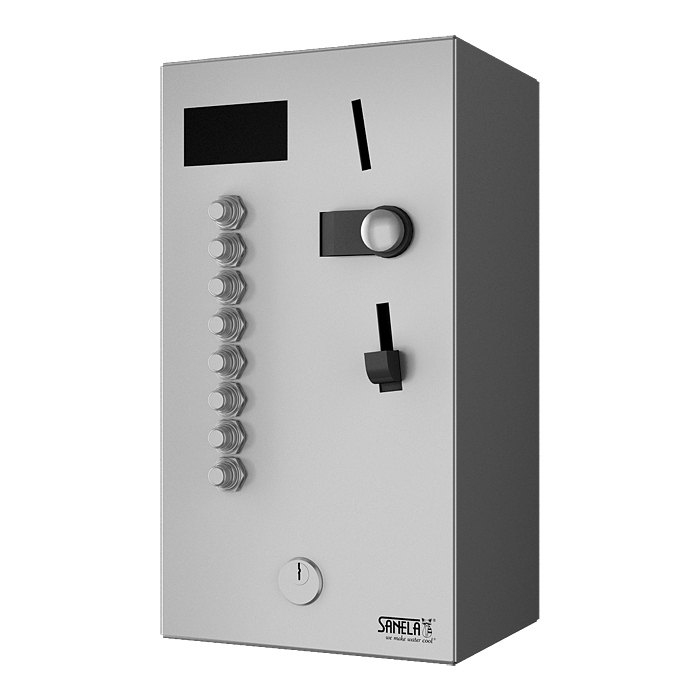

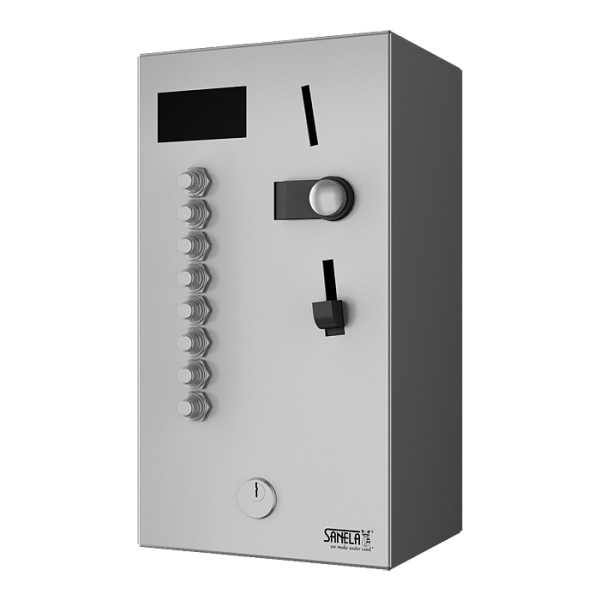

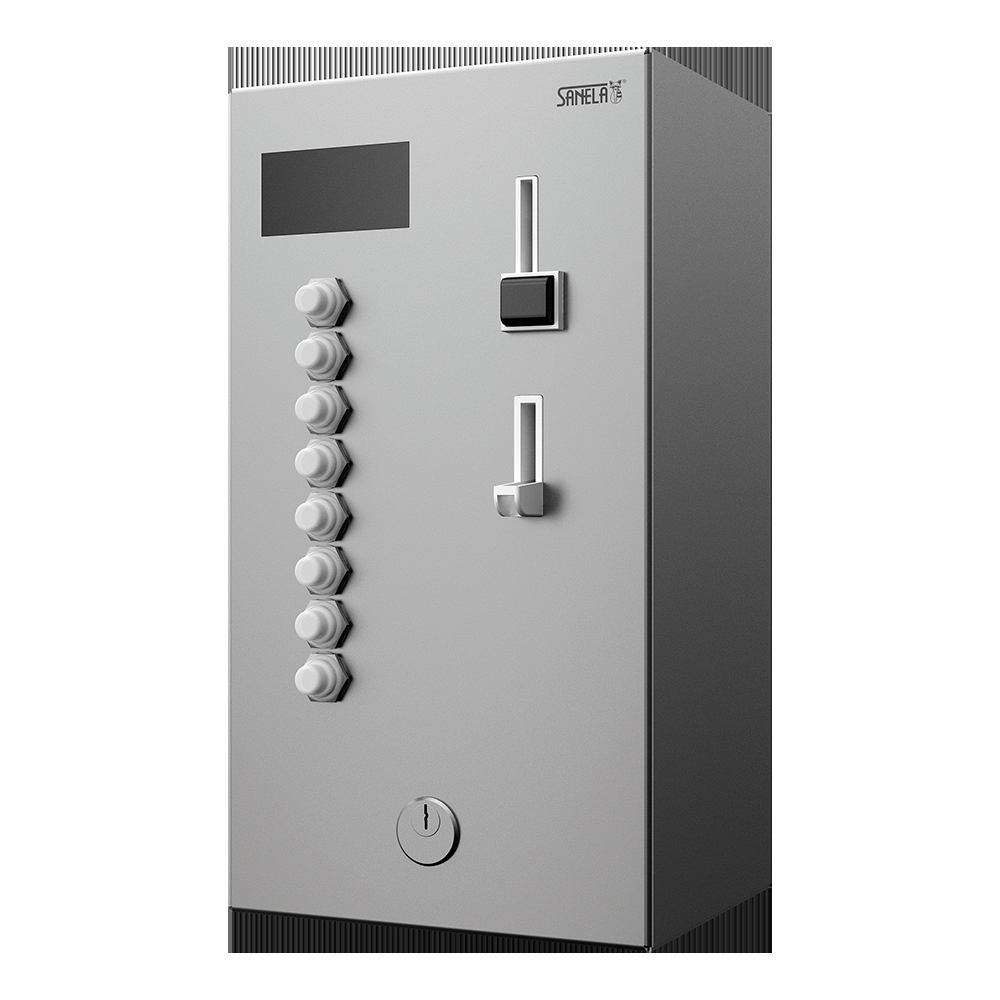

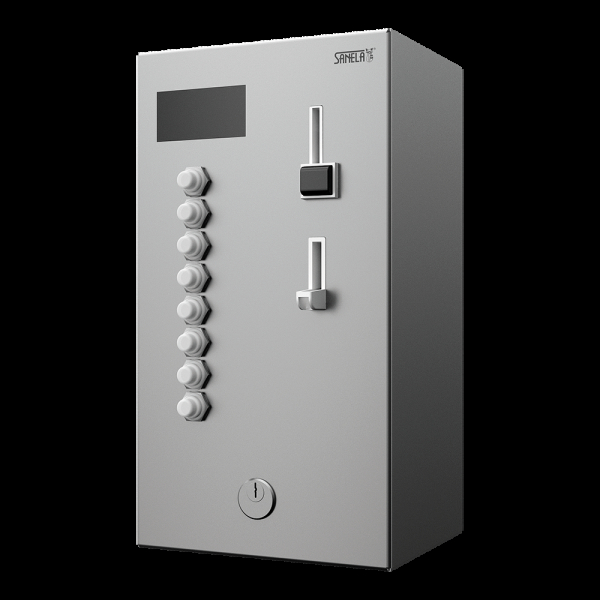

SLZA 02LM
Coin and token shower timer for four to eight showers, 24 V DC, choice of shower by the user, direct control
Characteristics
- hygienic flush
- vandal-proof
- choice of shower by the user:
- before inserting a coin or token the user chooses the requested shower by the push button, the number of shower is shown on the display
- direct control:
- after inserting a coin or a token the machine starts water flow on several seconds to indicate the chosen shower
- after set delay the machine starts water flow for paid time
- 30 s before the end of water supply the user is warned by interrupting of water flow
- parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time delay of switch on, time value, current euro exchange, token value, display contrast, possibility switch off some from showers)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- brushed finish
- Order number: 88027
I am interested in more information:
Supply specification
SLZA 02LM - Supply No. 88027 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.)
Technical information
Installation: | wall hung |
Operating voltage: | 24 V DC |
Types of coins: | 5, 10, 20 and 50 CZK, 1 and 2 EUR, metal token |
Time delay of switch on: | 0 - 255 s, standard 30 s |
Delay time for paid 5 CZK: | 5 - 1200 s, standard 30 s |
Downloads
- Mounting instructions (801.68 kB)
- User guide (30.22 kB)
- Catalogue list (1008.02 kB)
- Circuit diagram (1.95 MB)
- 2D Drawing (399.09 kB)
