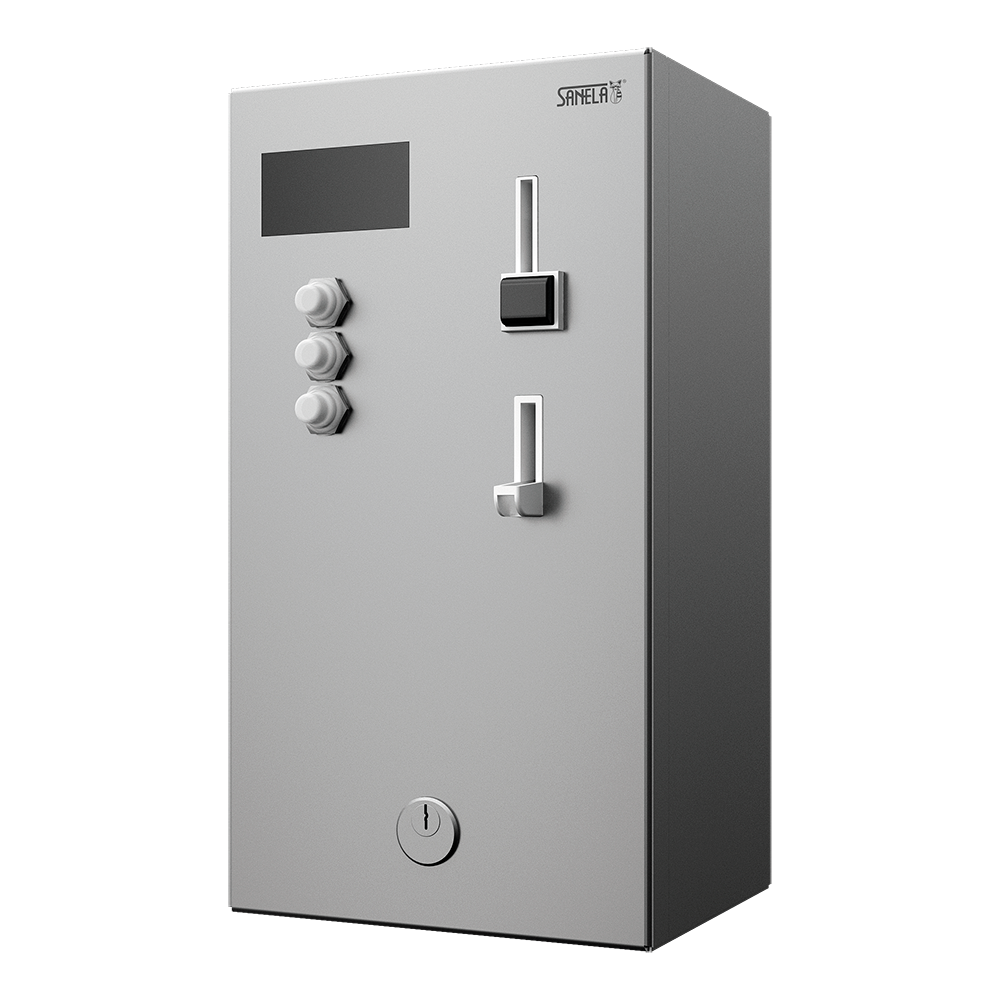

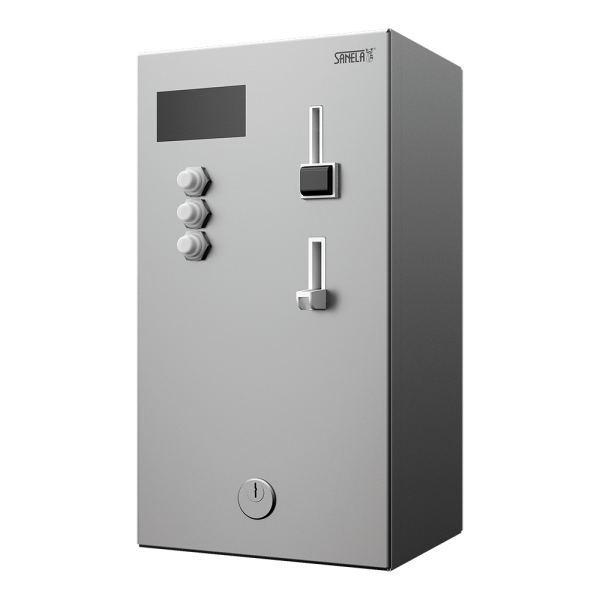

SLZA 01M
Coin and token shower timer for one to three showers, 24 V DC, choice of shower by the machine, direct control
Characteristics
- hygienic flush
- vandal-proof
- choice of shower by the machine
- after inserting a coin or a token the machine assigns the shower to the user and shows the number of shower on display
- direct control
- after inserting a coin or a token the machine starts water flow on several seconds to indicate the chosen shower
- after set delay the machine starts water flow for paid time
- 30 s before the end of water supply the user is warned by interrupting of water flow
- the machine adds up the coins but does not return
- parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time delay of switch on, time value, current euro exchange, token value, display contrast, possibility switch off some from showers)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- could be made to order from stainless steel AISI - 316L
- brushed finish
- Order number: 88011
I am interested in more information:
Supply specification
SLZA 01M - Supply No. 88011 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.)
Technical information
| Installation: | wall hung |
| Operating voltage: | 24 V DC |
| Accepted coins: | 1 and 2 €, token |
| (OTHER CURRENCIES ON REQUEST) | |
| Switch on delay: | 0 – 255 sec., standard 30 sec. |
| Showering time: | 5 – 1200 sec. |
Downloads
- Mounting instructions (812.49 kB)
- User guide (28.9 kB)
- Catalogue list (380.23 kB)
- Circuit diagram (982.27 kB)
- 2D Drawing (209.46 kB)
