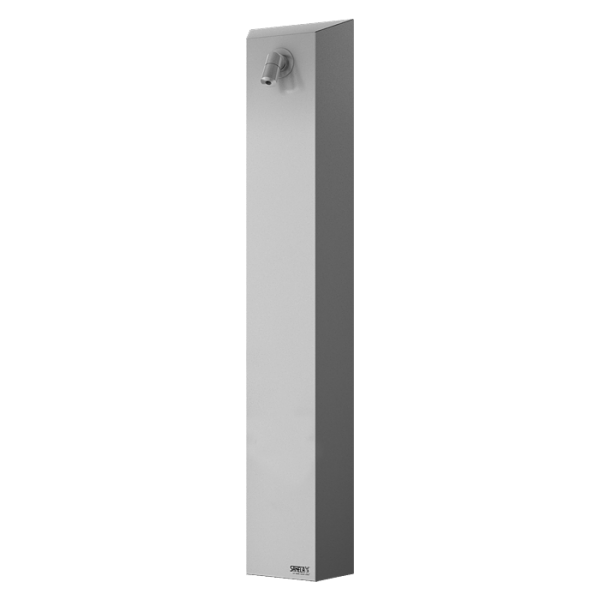

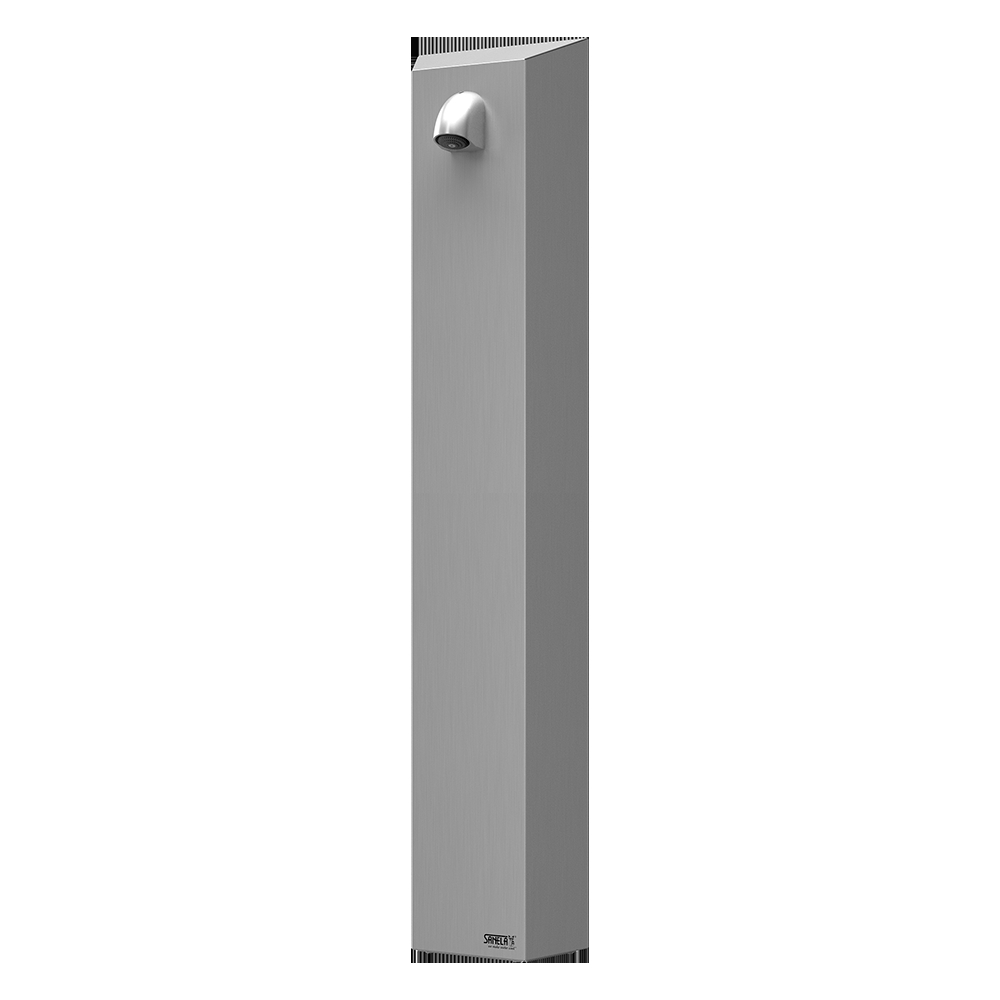

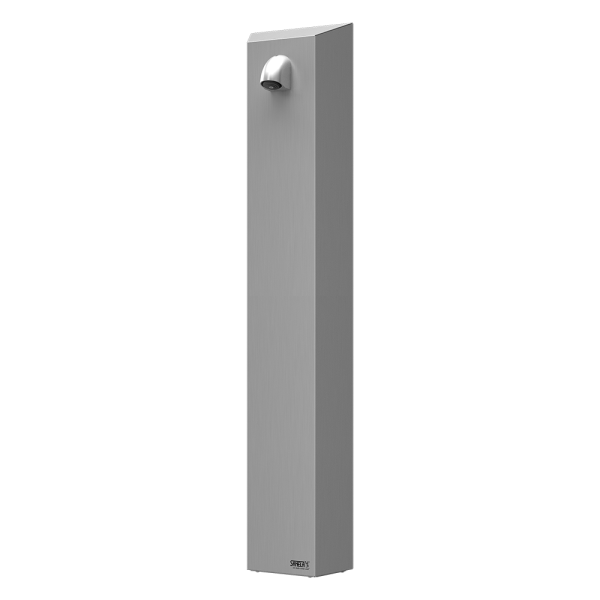

SLZA 21
Stainless steel shower panel without piezo button for coin and token shower timers with index M - premixed water
Characteristics
- hygienic flush
- vandalproof
- wall hung shower panel for automatic device with index M
- is designed for cold or premixed water
- Order number: 88210
I am interested in more information:
Supply specification
SLZA 21 - Supply No. 88210 - stainless steel shower panel, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.)
Technical information
| Dimensions: | 1050 x 220 x 143 mm |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 9 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.25 MB)
- Catalogue list (457.63 kB)
- 2D Drawing (390.47 kB)
