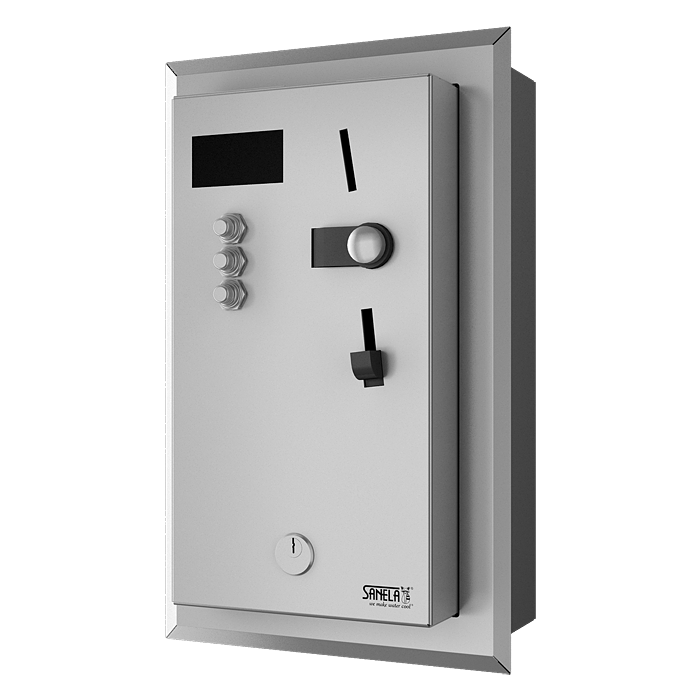

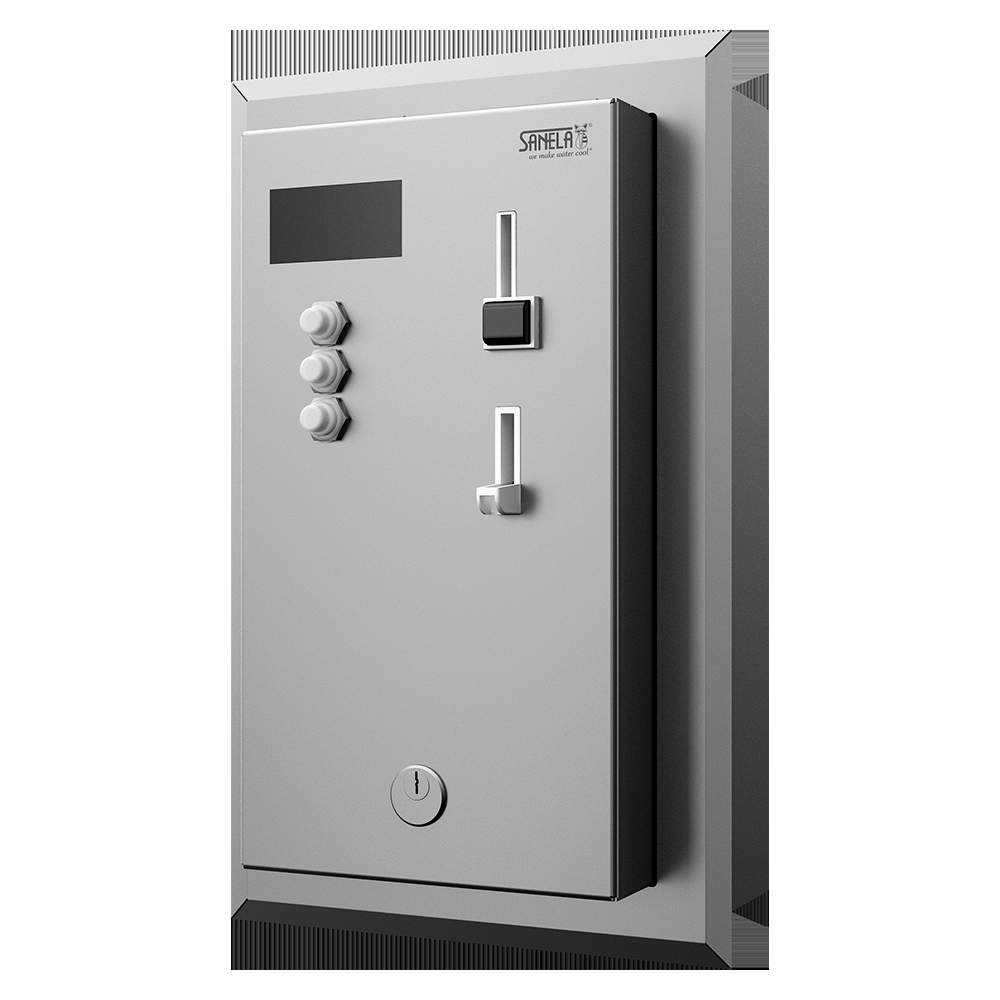

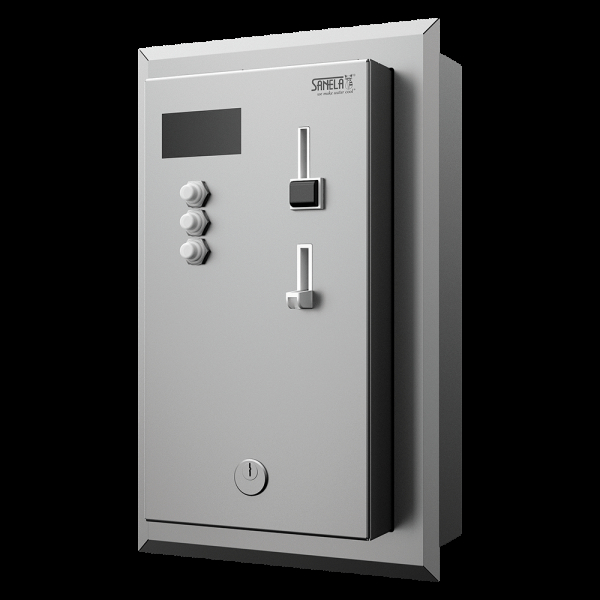

SLZA 01MZ

Recessed coin and token shower timer for one to three showers, 24 V DC, choice of shower by the machine, direct control

Characteristics

  • hygienic flush
  • vandal-proof
  • choice of shower by the machine

- after inserting a coin or a token the machine assigns the shower to the user and shows the number of shower on display

  • direct control

- after inserting a coin or a token the machine starts water flow on several seconds to indicate the chosen shower
- after set delay the machine starts water flow for paid time​

  • 30 s before the end of water supply the user is warned by interrupting of water flow
  • the machine adds up the coins but does not return
  • index Z - recessed
  • parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time delay of switch on, time value, current euro exchange, token value, display contrast, possibility switch off some from showers)
  • marking of the buttons by symbols could be made to order
  • the possibility of obtaining the statistical information, device diagnostics
  • lockable
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 88012
I am interested in more information:

Supply specification

SLZA 01MZ - Supply No. 88012 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.), mounting frame

Technical information

Dimension of hole in the wall for models with index Z: 335 x 200 x 125 mm
Operating voltage: 24 V DC
Types of coins: 5, 10, 20 and 50 CZK, 1 and 2 EUR, metal token
Time delay of switch on: 0 - 255 s, standard 30 s
Delay time for paid 5 CZK: 0 - 255 s, standard 30 s
