SLU 39X

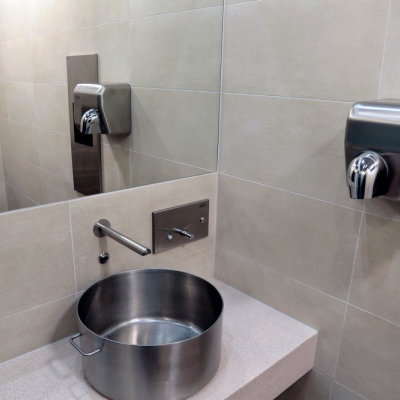

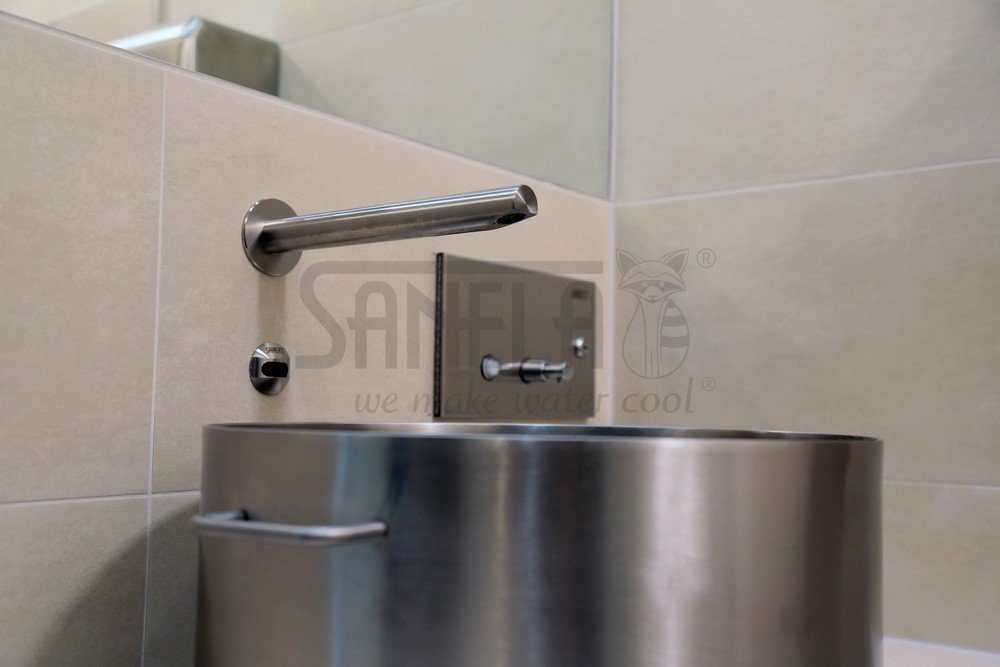

Set of stainless steel automatic wall-mounted washbasin tap for subsequent mounting, brushed, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • lead free
  • are destined for installation into the wall (necessary to use instalation set SLA 52A)
  • are destined for installation into the sheets with a max. thickness of 5 mm
  • are destined for cold or premixed water
  • index X - brushed finish
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03391

Supply specification

SLU 39X - Supply No. 03391 - faucet, head with electronics, electromagnetic valve (1 pcs.)

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: 24V DC
control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,23 - 0,31 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
