SLU 04HT17

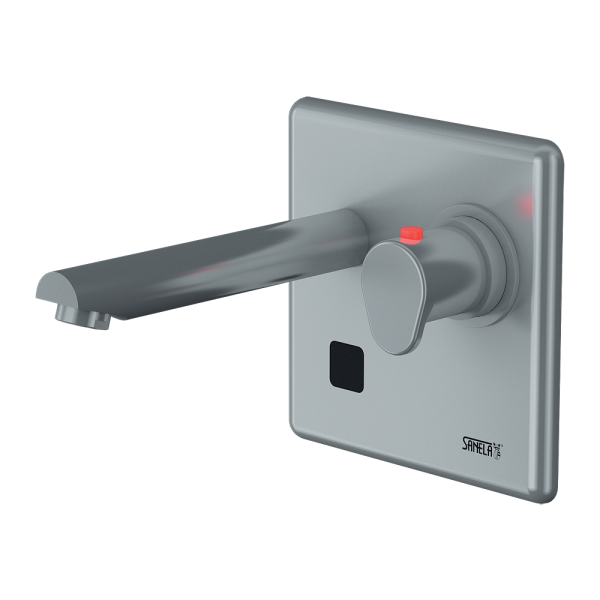

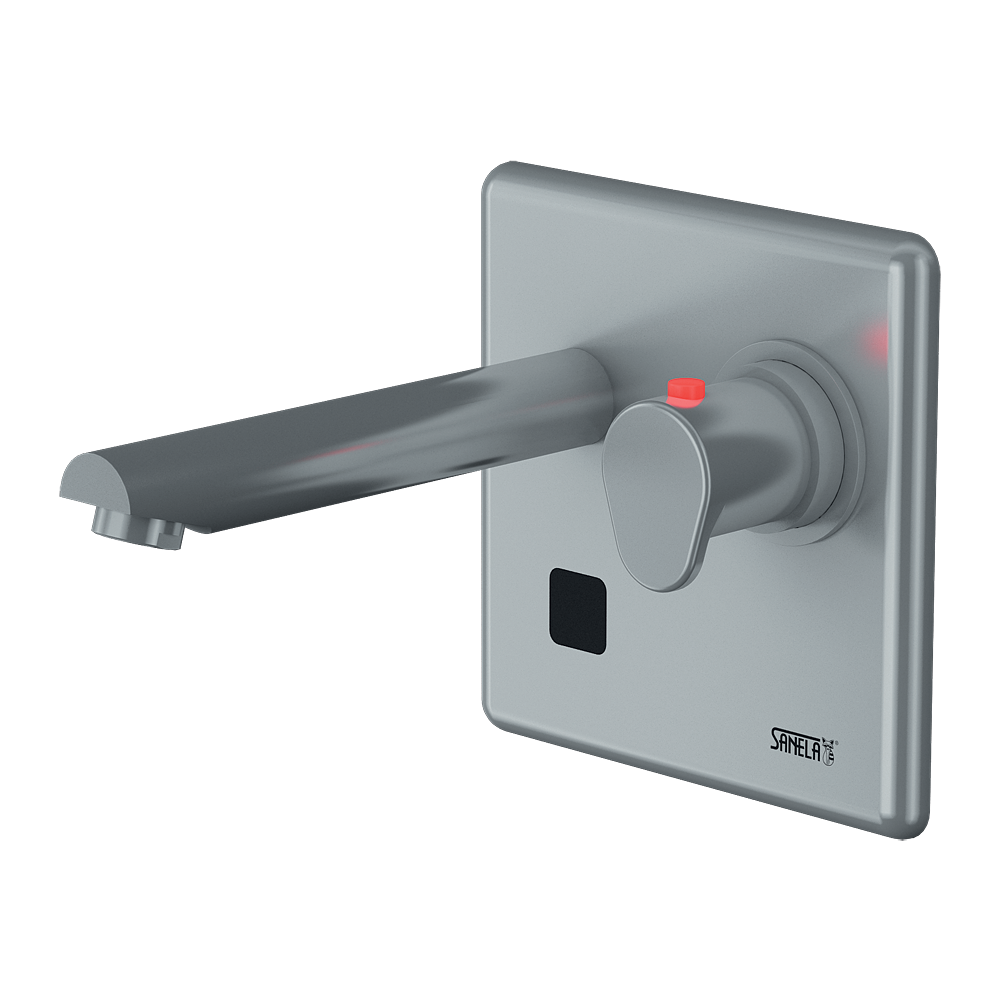

Wall-mounted thermostatic mixer, spout of 170 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • water flow can be regulated by ball valve
  • Order number: 43046
I am interested in more information:

Supply specification

SLU 04HT17 - Supply No. 43046 - spout, stainless steel cover with electronics, stainless steel mounting box with thermostat, electromagnetic valve, ball valve and screw coupling

Technical information

Material: stainless steel
Temperature regulation: with thermostat
Power supply: 24V DC
Control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 155 x 155 x 82 mm
Length of the spout: 170 mm
Operating voltage: 24 V DC
Active range: standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 3/4“
