SLU 04H25B

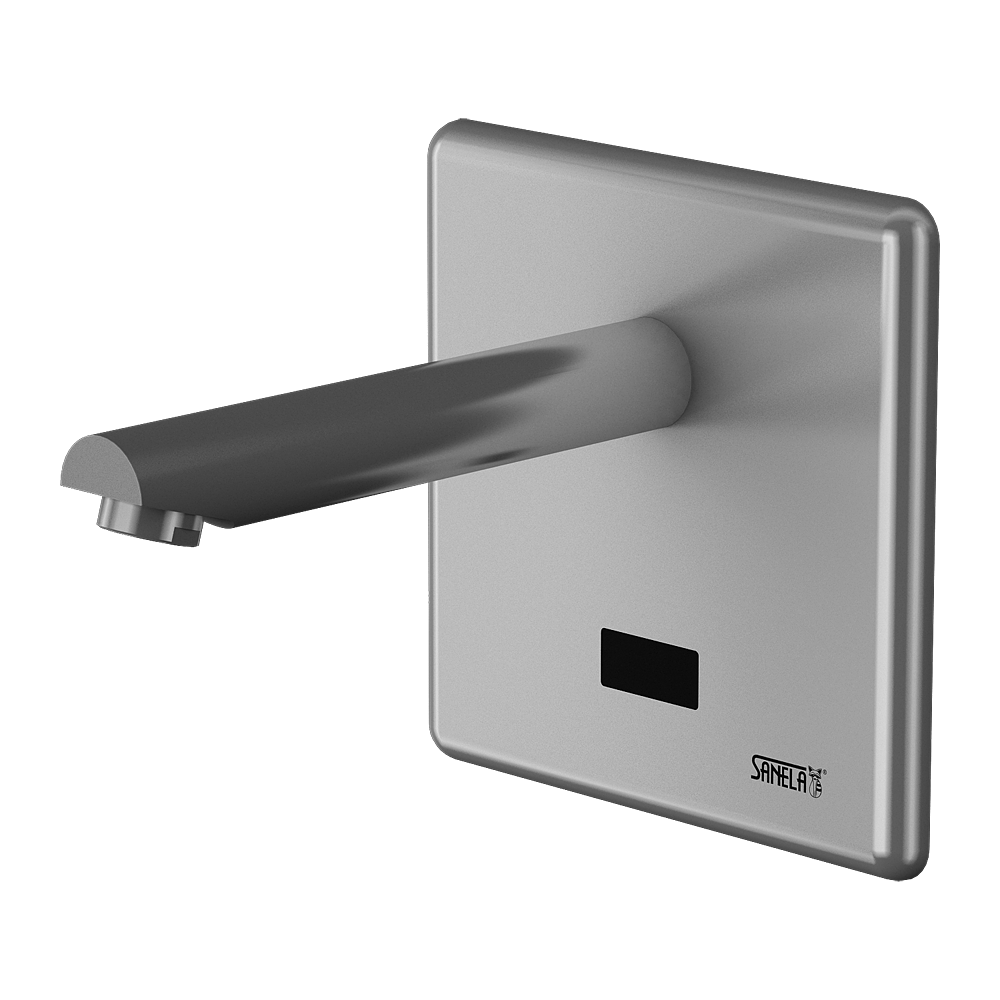

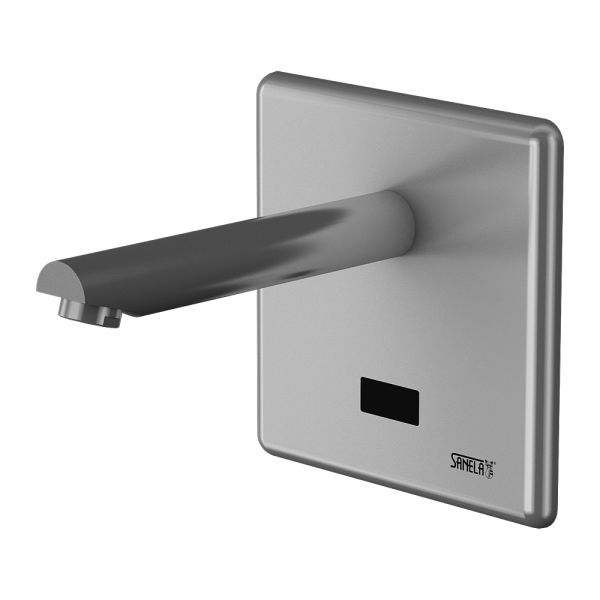

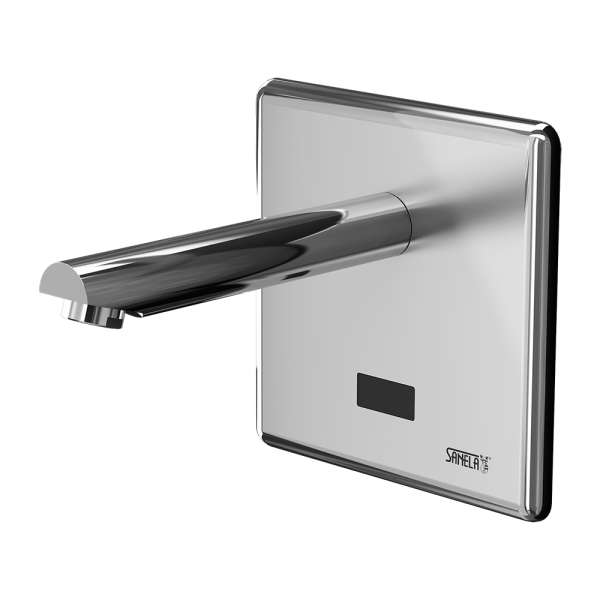

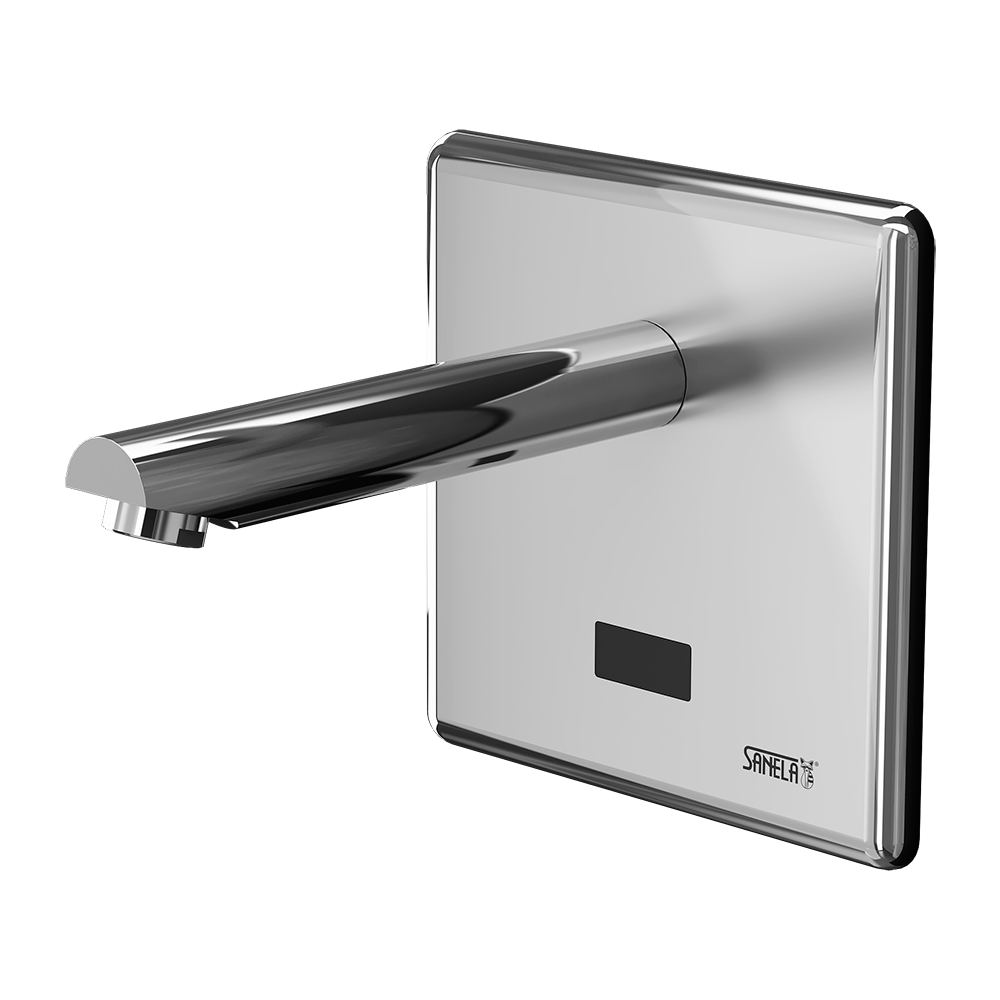

Wall-mounted tap, spout of 250 mm, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • are destined for cold or premixed water
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • water flow could be regulated by ball valve
  • Order number: 03047
I am interested in more information:

Supply specification

SLU 04H25B - Supply No. 03047 - spout, stainless steel cover with electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

Material: stainless steel
Temperature regulation: for cold or premixed water
Power supply: battery operated
Control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 155 x 155 x 82 mm
Length of the spout: 250 mm
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh approx. 2 years (100 uses per day)
Active range: standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 3/4“
