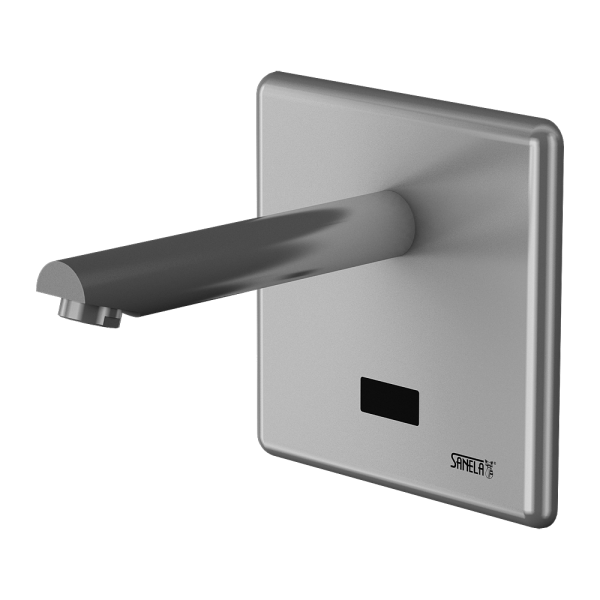

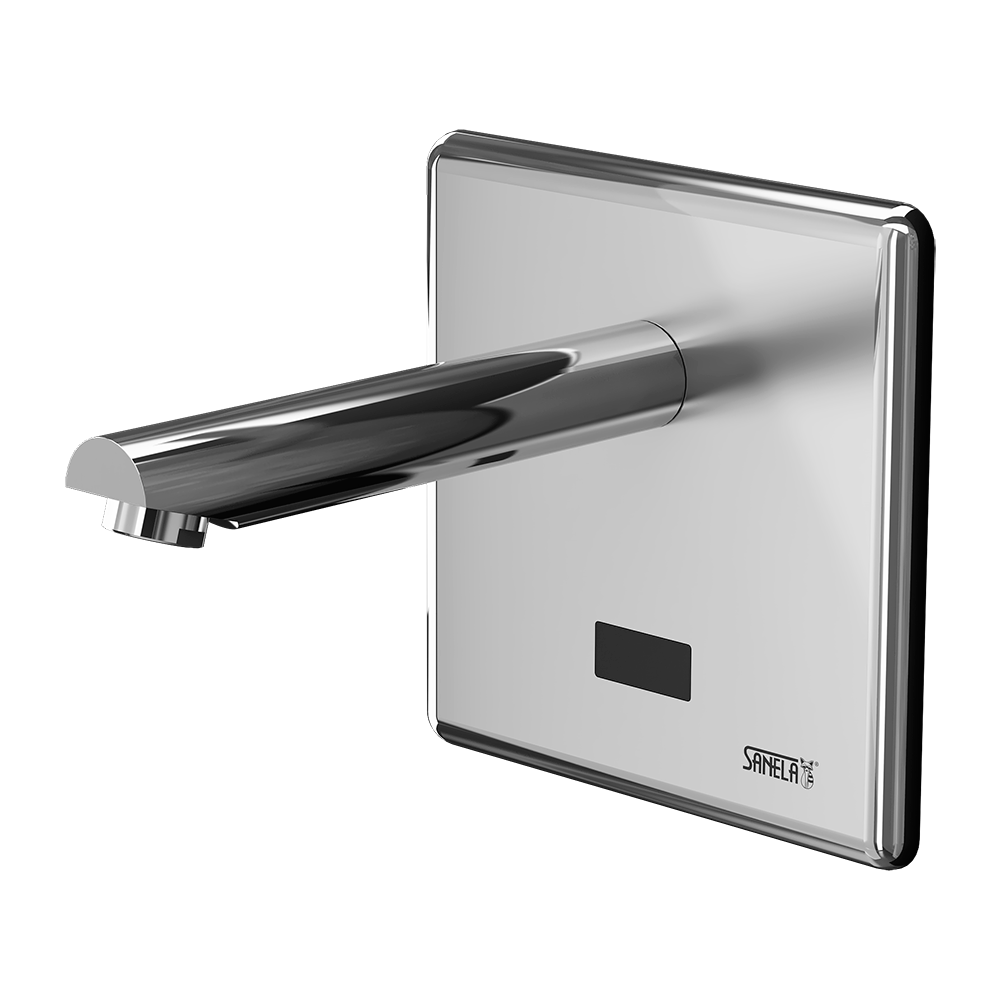

SLU 04H17
Wall-mounted tap, spout of 170 mm, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- are destined for cold or premixed water
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow could be regulated by ball valve
- Order number: 03041
I am interested in more information:
Supply specification
SLU 04H17 - Supply No. 03041 -spout, stainless steel cover with electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | 24V DC |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 155 x 155 x 82 mm |
| Length of the spout: | 170 mm |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (4.28 MB)
- Catalogue list (130.18 kB)
- 2D Drawing (97.53 kB)
