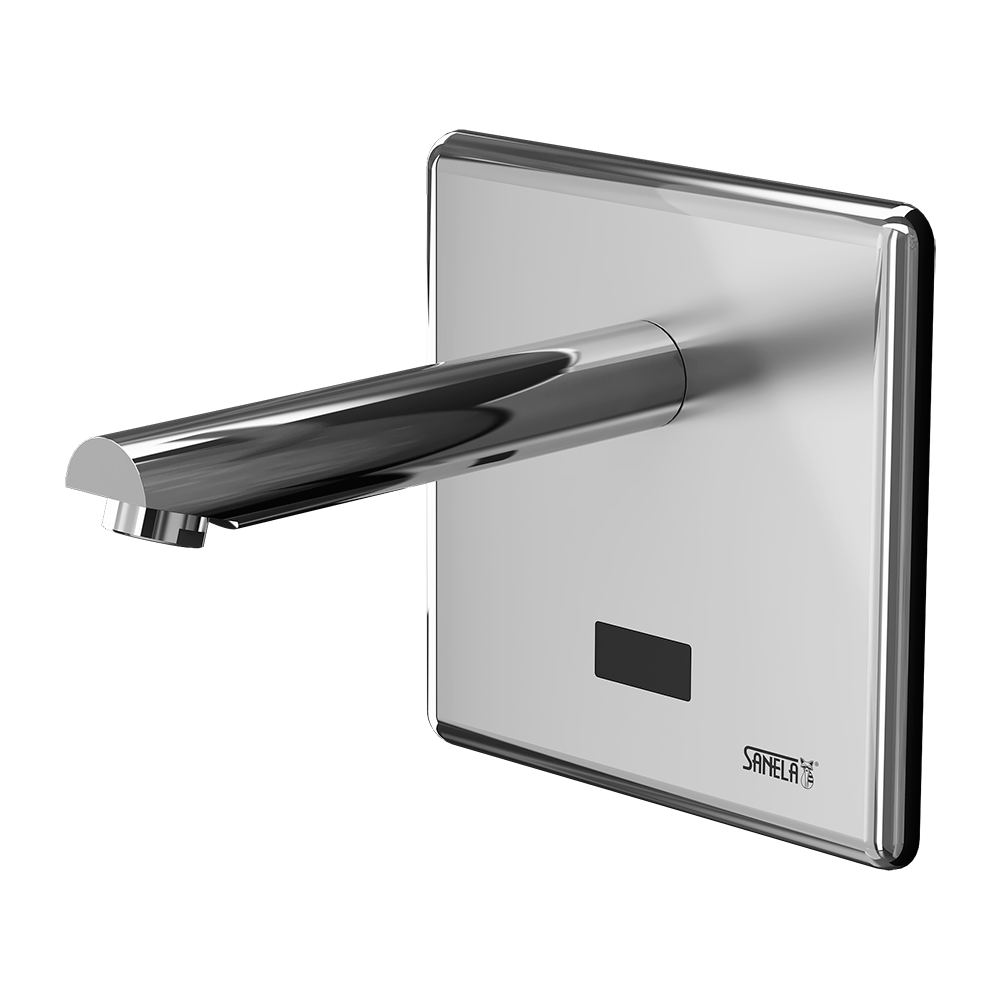

SLU 04H17B
Wall-mounted tap, spout of 170 mm, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- are destined for cold or premixed water
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow could be regulated by ball valve
- Order number: 03046
I am interested in more information:
Supply specification
SLU 04H17B - Supply No. 03046 - spout, stainless steel cover with electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
Material: | stainless steel |
Temperature regulation: | for cold or premixed water |
Power supply: | battery operated |
Control: | infra-red |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 155 x 155 x 82 mm |
Length of the spout: | 170 mm |
Operating voltage: | 6 V |
Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh approx. 2 years (100 uses per day) |
Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 6 l/min. (inf. data) |
Downloads
- Mounting instructions (2.23 MB)
- Catalogue list (130.18 kB)
- 2D Drawing (97.53 kB)
