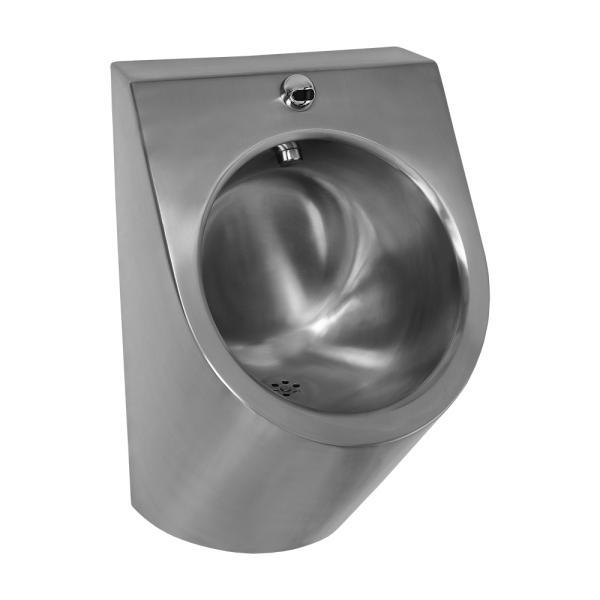

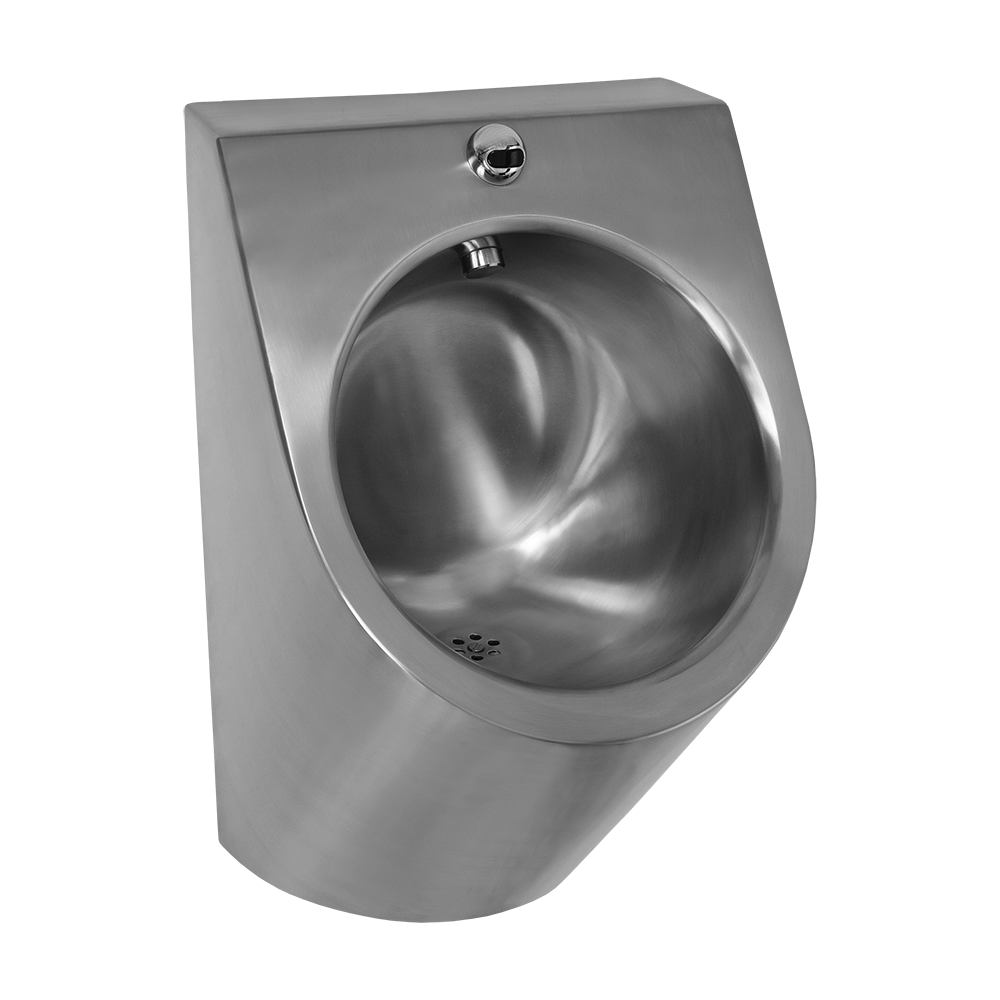

SLPN 07E
Stainless steel urinal with integrated infra-red flushing unit, 24 V DC
Characteristics
- vandal-proof
- stainless steel wall hung urinal with integrated infra-red electronics
- rear assembling through the service hatch and screws
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- system flushes after leaving of user from active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- material stainless steel AISI 304 (1.4301)
- brushed finish
- the product meets the water consumption parameters for class 1. according to the EU Water Label criteria
- Order number: 91071
I am interested in more information:
Supply specification
SLPN 07E - Supply No. 91071 - stainless steel urinal with flushing head, sensor head with electronics, solenoid valve (1 pc.), angle valve with a filter, coupling hoses, mounting set, siphon
Technical information
| Category: | urinal |
| Power supply: | 24V DC |
| Control: | infra-red |
| Dimensions: | 550 x 350 x 325 mm |
| Weight: | 8 kg |
| Material thickness: | 1,5 mm |
| Power input: | 7 W |
| Active range: | 0,6 - 0,75 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (4.05 MB)
- Catalogue list (211.79 kB)
- 2D Drawing (106.32 kB)
