SLPN 07EB

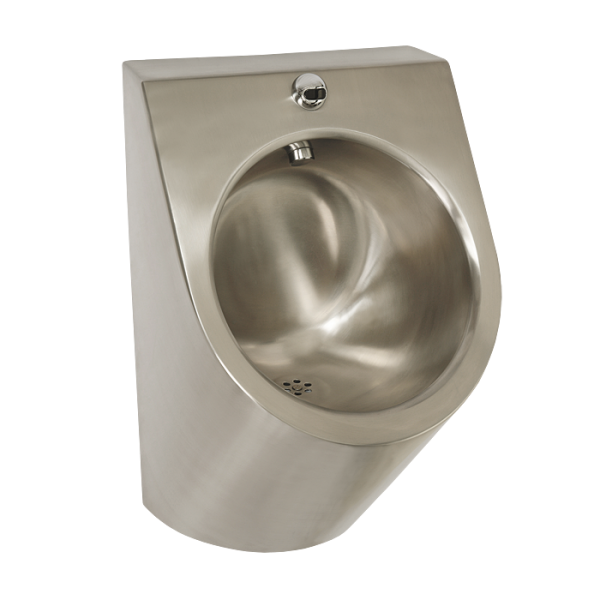

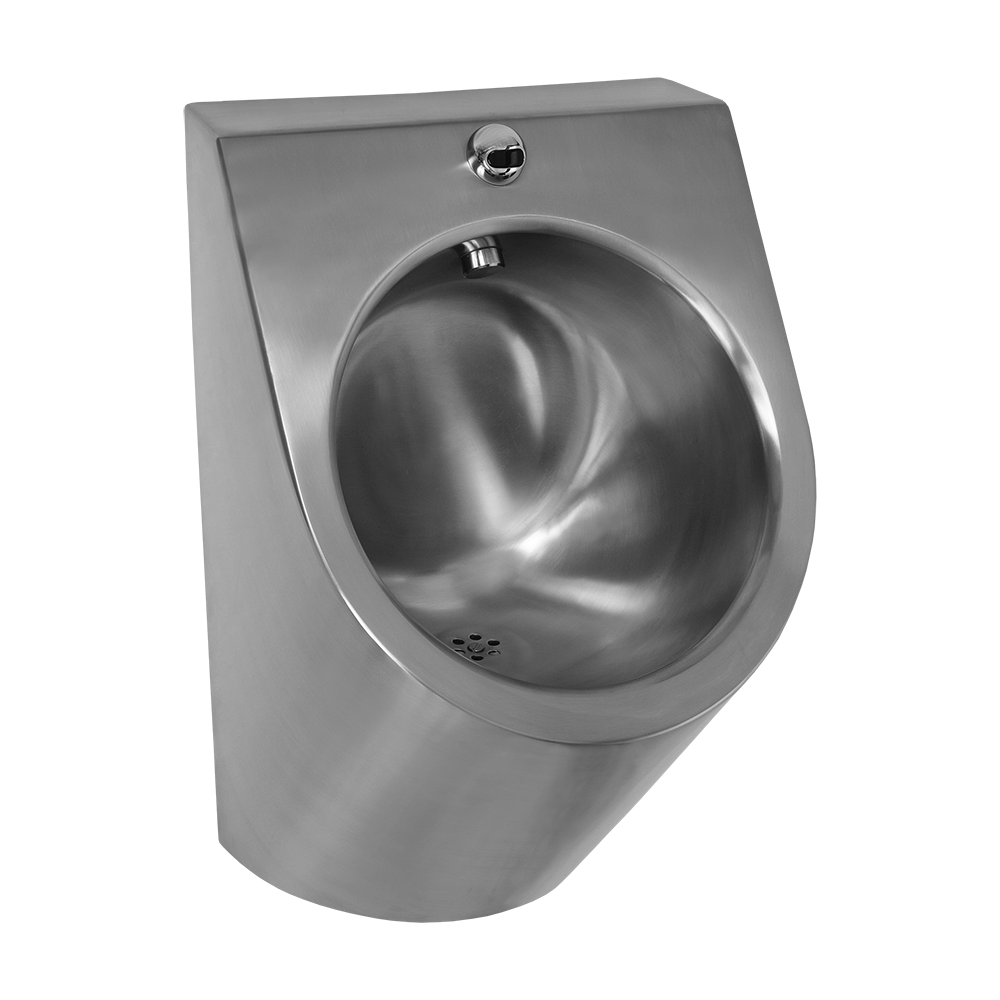

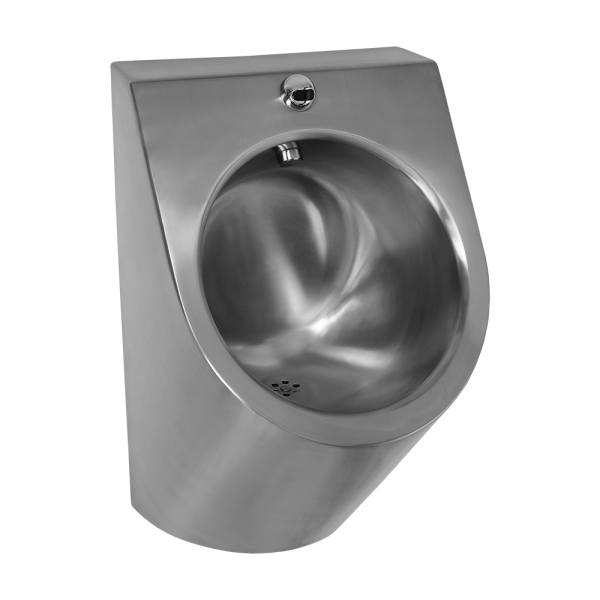

Stainless steel urinal with integrated infra-red flushing unit, 9 V

Characteristics

  • vandal-proof
  • stainless steel wall hung urinal with integrated infra-red electronics
  • rear assembling through the service hatch and screws
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • system fl ushes after leaving of user from active range
  • adjustable fl ushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene fl ushing after 24 hours non-use
  • monitoring of battery capacity
  • material AISI - 304
  • brushed finish
  • Order number: 91072
I am interested in more information:

Supply specification

SLPN 07EB - Supply No. 91072 - stainless steel urinal with flushing head, sensor head with electronics, electromagnetic valve (1 pc.), angle valve with a filter, connecting hoses, mounting set, siphon, alkaline battery SLA 29

Technical information

category: urinal
power supply: battery operated
control: infra-red
Operating voltage: 9 V
Battery life: alkaline battery, 9 V/550 mAh, approx. 2 years typ 6F22 (100 uses per day)
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"

Downloads

Accessories

Lithium battery, 9 V/1200 mAh
Remote control for an adjustment of…
Mounting frame to the plasterboard for…
