SLPN 07C

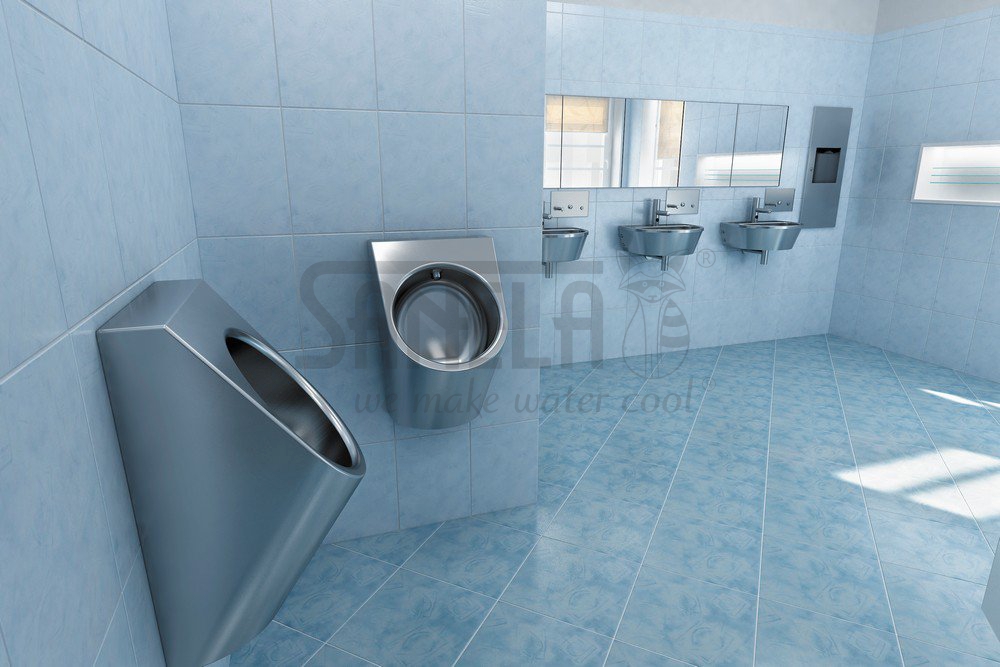

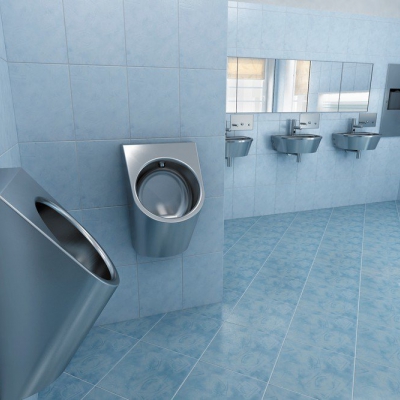

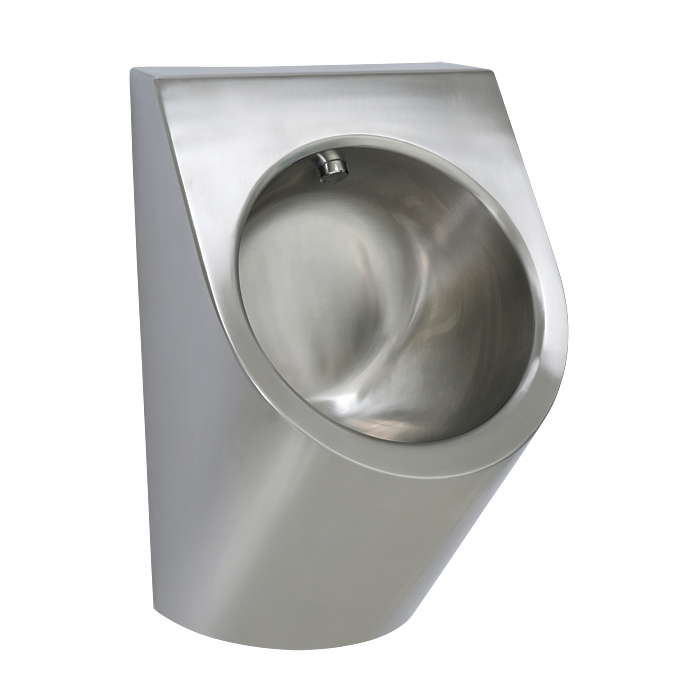

Stainless steel automatic urinal with integrated thermic flushing unit, 24 V DC

Characteristics

  • vandal-proof
  • suitable for a prison
  • stainless steel wall hung urinal with integrated electronics
  • rear assembling through the service hatch and screws
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is fl owing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04
  • automatic hygiene fl ushing after 6 hours non-use
  • material AISI - 304
  • brushed finish
  • Order number: 91073
I am interested in more information:

Supply specification

SLPN 07C - Supply No. 91073 - stainless steel urinal with flushing head, electronics, electromagnetic valve (1 pc.), angle valve with a filter, connecting hoses, mounting set, siphon

Technical information

Category: urinal
Power supply: 24V DC
Control: thermic
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
