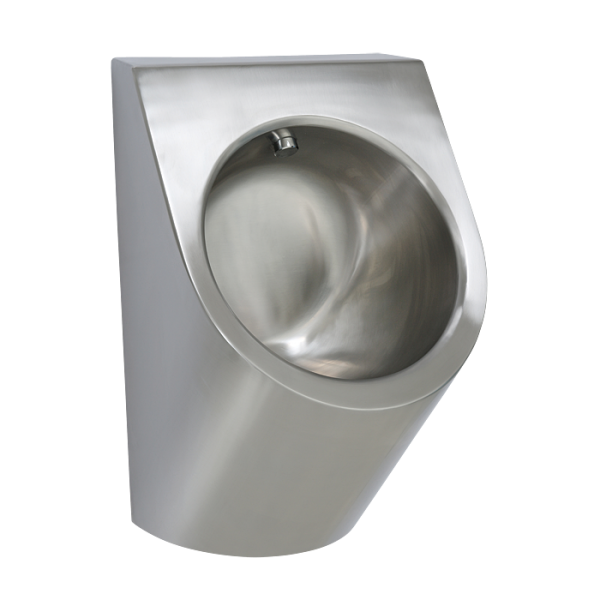

SLPN 07CZ
Stainless steel automatic urinal with integrated thermic flushing unit, 230 V AC
Characteristics
- vandal-proof
- suitable for a prison
- stainless steel wall hung urinal with integrated electronics
- rear assembling through the service hatch and screws
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable fl ushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04
- automatic hygiene flushing after 6 hours non-use
- material AISI - 304
- brushed finish
- Order number: 91075
I am interested in more information:
Supply specification
SLPN 07CZ - Supply No. 91075 - stainless steel urinal with flushing head, electronics, electromagnetic valve (1 pc.), angle valve with a filter, connecting hoses, mounting set, siphon, power supply
Technical information
| Category: | urinal |
| Power supply: | 230V AC |
| Control: | thermic |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (3.88 MB)
- Catalogue list (619.96 kB)
- 2D Drawing (945.8 kB)
