SLP 05N

Infra-red flushing unit for a group of urinals, 24 V DC

Characteristics

  • system flushes a group of urinals at one time
  • system reacts to the users attendance in front of urinals in the axis of sensor (approx. 200 mm from the front edge of urinal), minimum stay time in active range is 7,5 s
  • maximum active range from sensor to the reflexive foil is 3 m (extended activity range to order)
  • system flushes all urinals at one time after leaving of all users from active range of sensor
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • Order number: 42052
I am interested in more information:

Supply specification

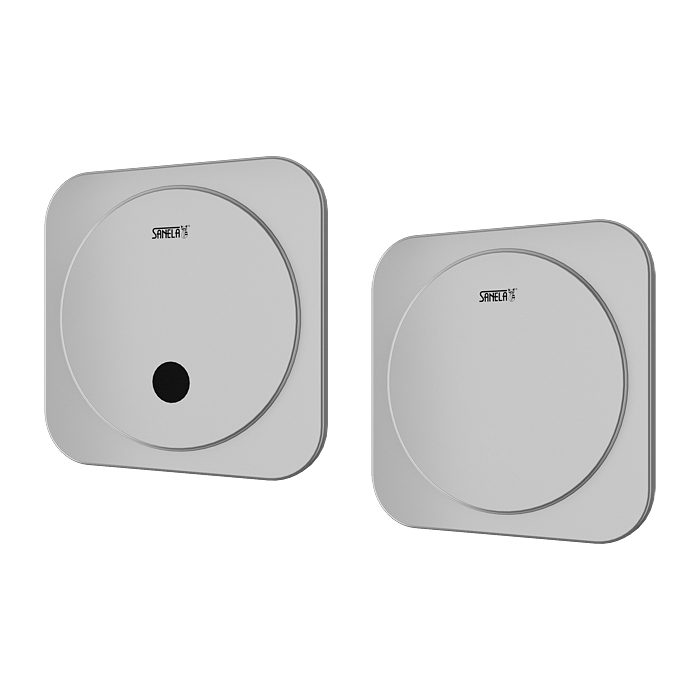

SLP 05N - Supply No. 42052 - stainless steel cover with electronics, plastic mounting box with electronics, stainless steel mounting box with a brass screw coupling and electromagnetic valve, stainless steel cover (for covering of stainless steel mounting box with electromagnetic valve), reflexive foil

Technical information

Power supply: 24V DC
Flushing unit: without urinal
Control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Dimensions:
- plastic mounting box: 140 x 140 x 75 mm
- stainless steel mounting box: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Active range: 0,3 - 3 m
Recommended flow pressure: 0,15 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16), male thread G 1“
Water outlet: male thread G 1“

Downloads

Accessories

Inlet fitting with a rubber seal for…
Reflective foil for SLP 05K and SLP 05N
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC,…
External power supply 230 V AC/24 V DC,…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
