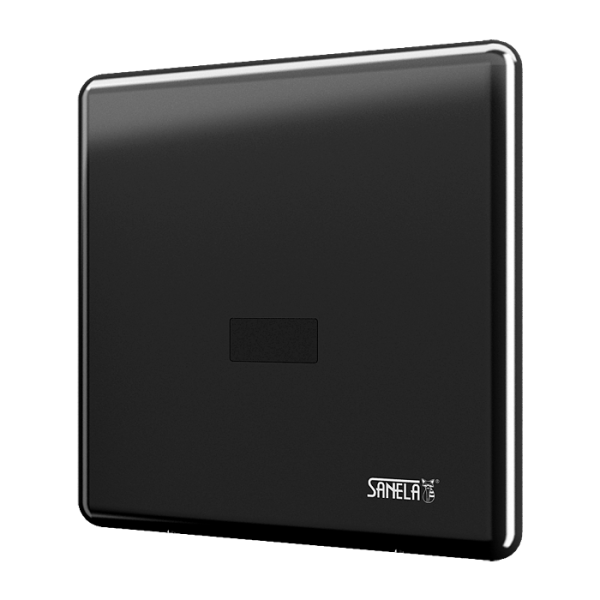

SLP 06KV
Urinal infra-red flushing unit with a mounting box, black, 6 V
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the ball valve
- Order number: 01066
I am interested in more information:
Supply specification
SLP 06KV - Supply No. 01066 - black stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V 2700 mAh
Technical information
Power supply: | battery operated |
Location: | above the urinal |
Flushing unit: | without urinal |
Control: | infra-red |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 140 x 140 x 75 mm |
Operating voltage: | 6 V |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 3/4“ |
Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.65 MB)
- Catalogue list (498.52 kB)
- 2D Drawing (341.81 kB)
