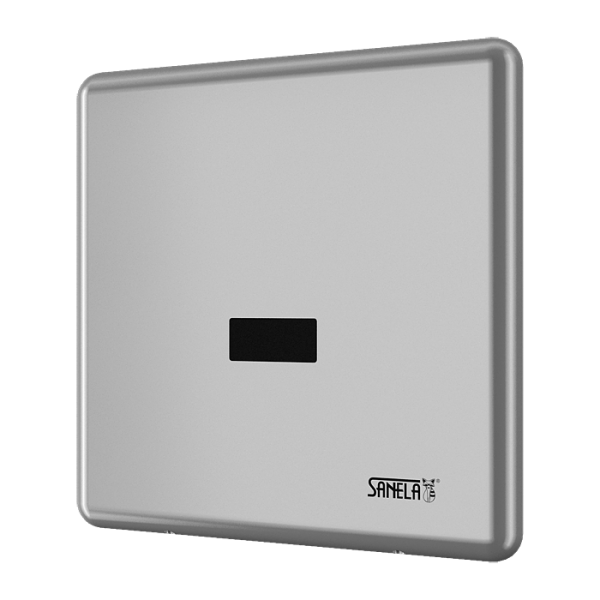

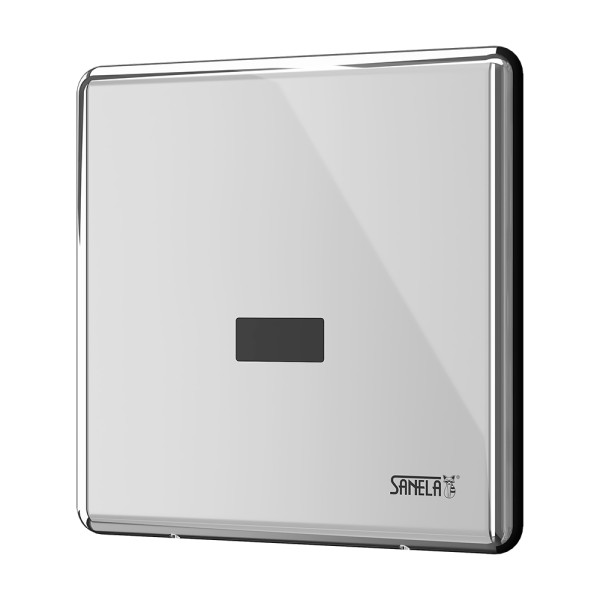

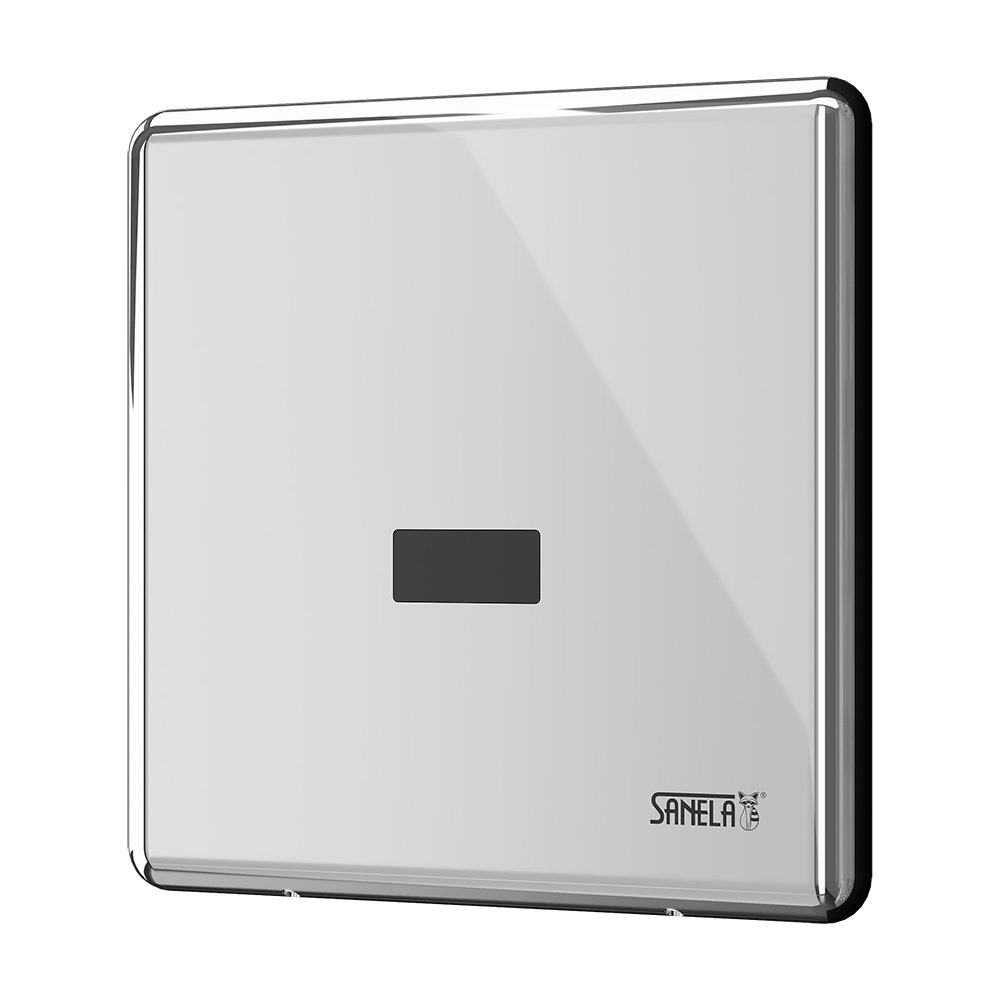

SLP 02KZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
- Order number: 01023
I am interested in more information:
Supply specification
SLP 02KZ - Supply No. 01023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve,power supply
Technical information
| Power supply: | 230V AC |
| Location: | above the urinal |
| Flushing unit: | without urinal |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 230 V AC/50 Hz |
| Active range: | 0,6 - 0,75 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.35 MB)
- Catalogue list (161.67 kB)
- Technical sheet (140.99 kB)
- 2D Drawing (319.91 kB)
