SLP 02KV

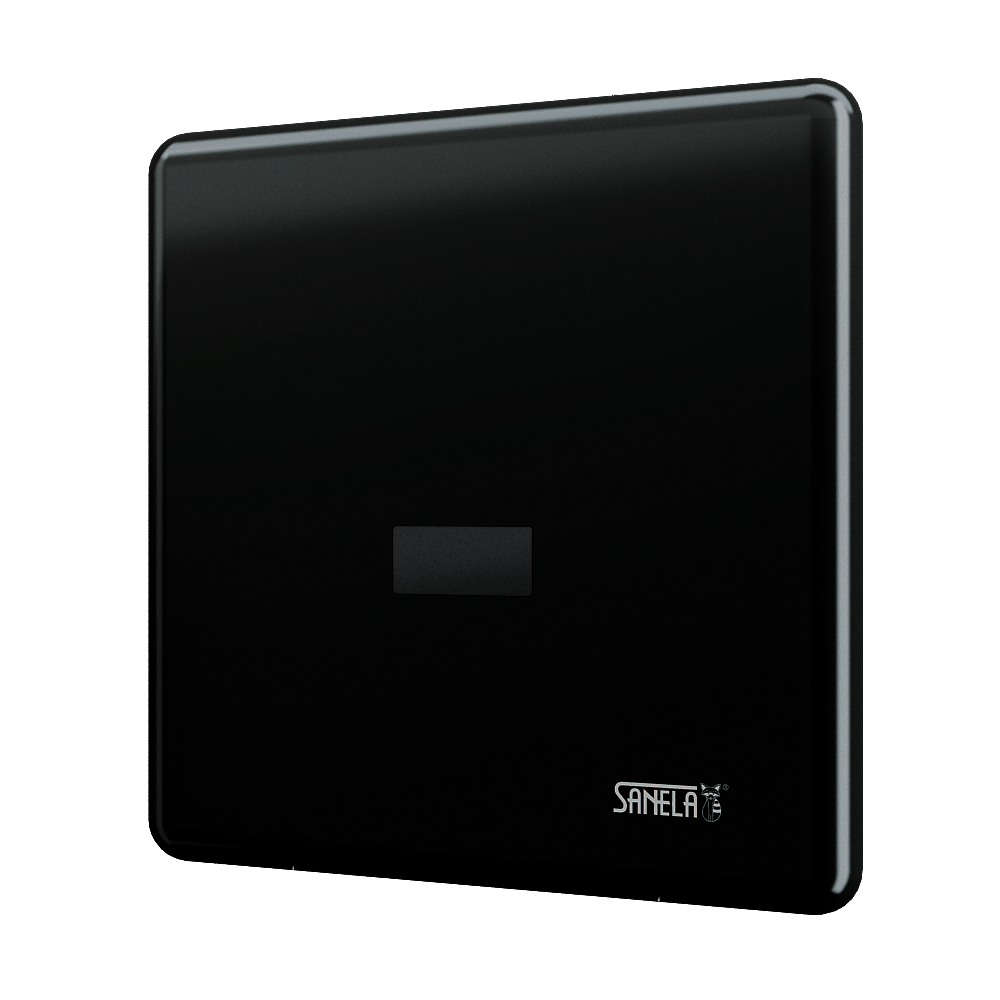

Urinal infra-red flushing unit with a mounting box, black, 24 V DC

Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
  • Order number: 01018
I am interested in more information:

Supply specification

SLP 02KV - Supply No. 01018 - black stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve

Technical information

Power supply: 24V DC

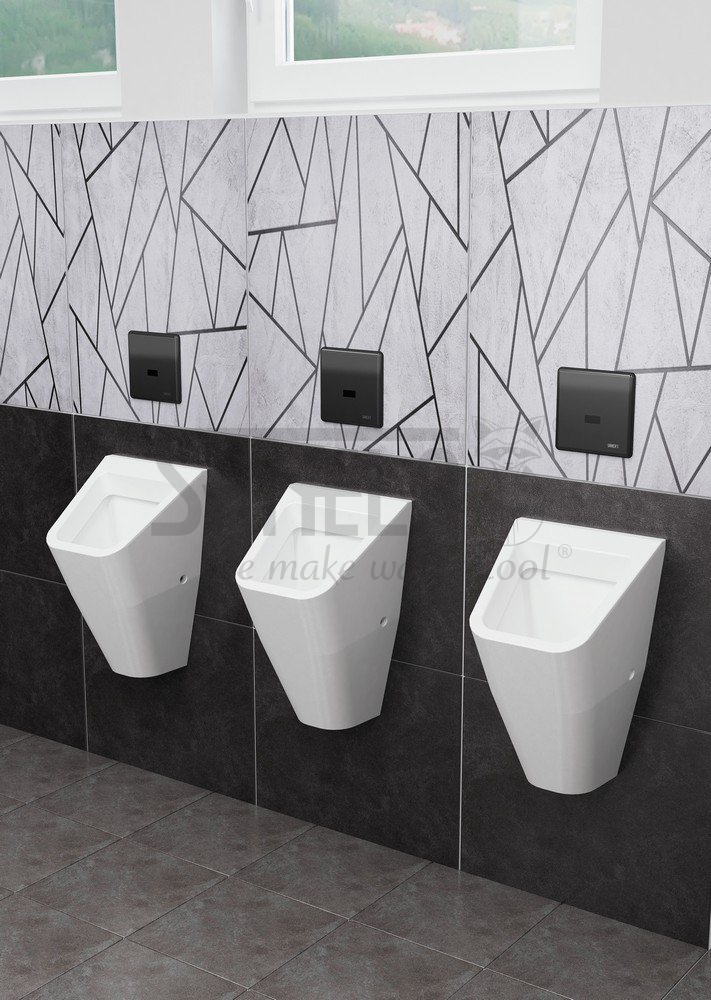

Location: above the urinal
Flushing unit: without urinal
Control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
