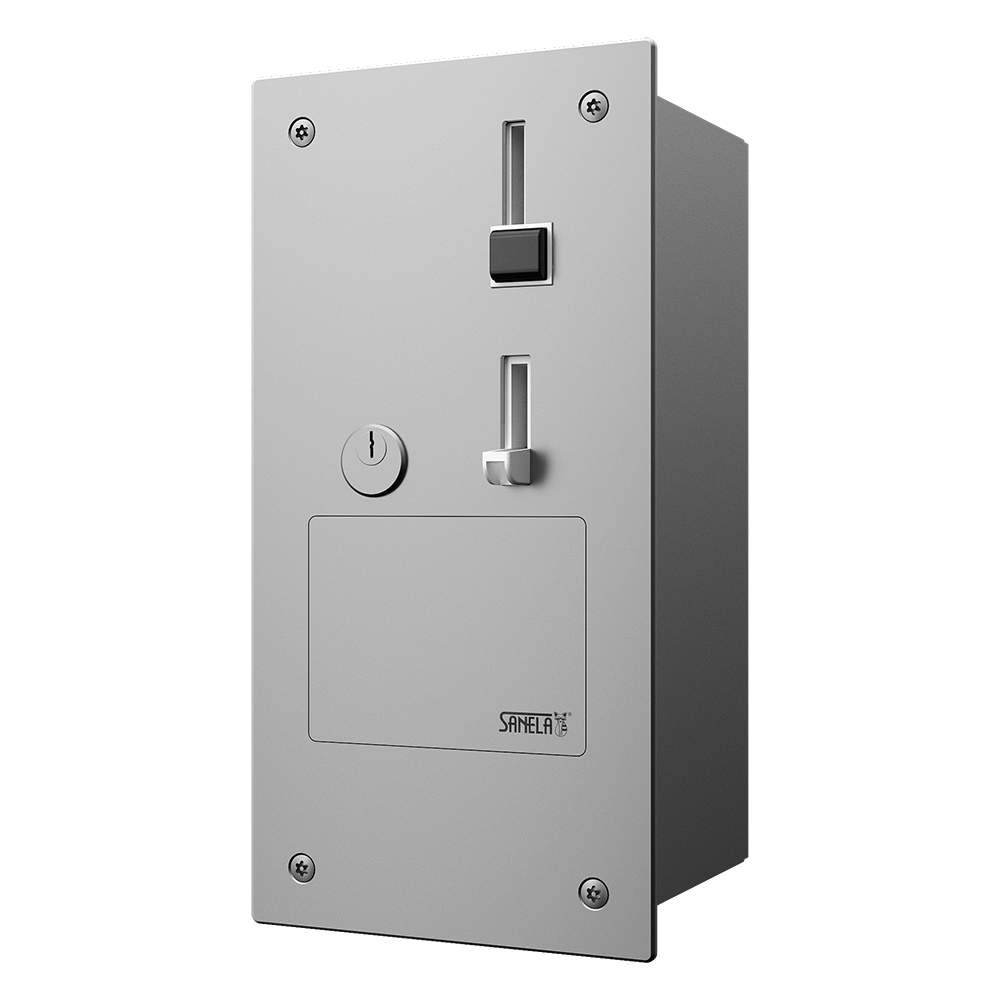

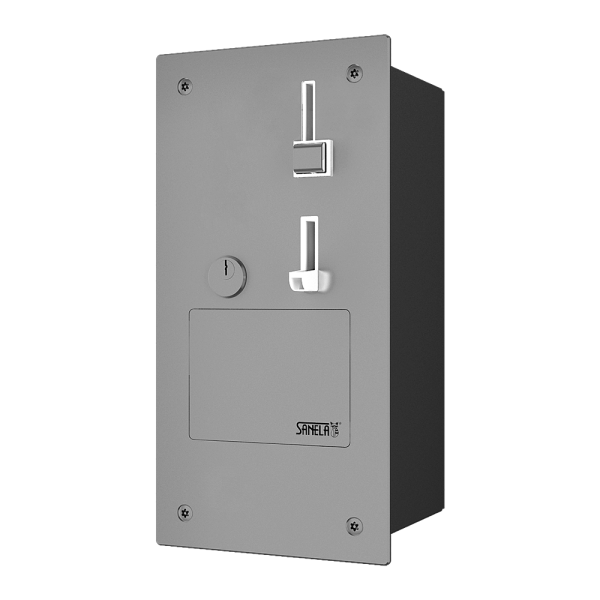

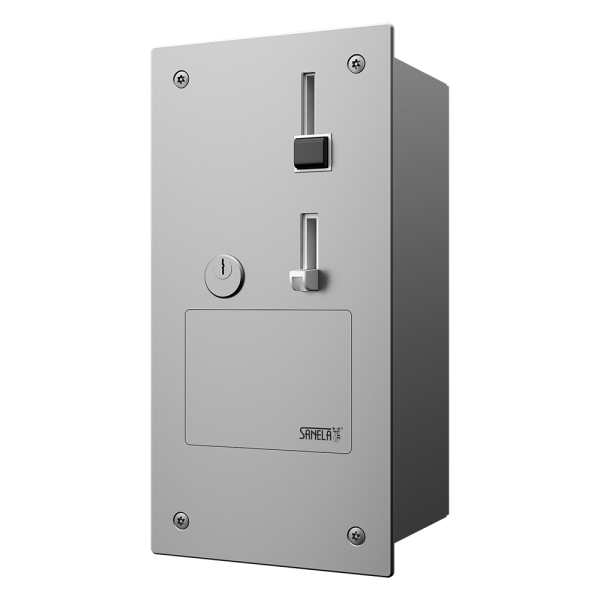

SLZA 41Z
Recessed coin and token machine for single-phase appliance 230 V, 24 V DC
Characteristics
- vandal-proof
- coin and token device for single-phase appliance 230 V
- after inserting the minimal requested credit (coin or token) the device switches on the contacter of single-phase appliance (e. g. washing machine, hair dryer, TV) for paid time
- during use is possible to add the coins or tokens and prolong use time
- the device adds up the coins but does not return
- recessed
- parameters adjustment on display inside of the device using by the remote control SLD 05 (value of purchased time, current euro exchange rate)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 88411
I am interested in more information:
Supply specification
SLZA 41Z - Supply No. 88411 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.), mounting frame
Technical information
| Niche dimensions: |
265 x 127 x 125 mm |
| Dimensions: |
285 x 145 x 142 mm |
| Weight: |
3,2 kg |
| Thickness of material: |
1,5 mm |
| Operating voltage: |
24 V DC |
| Max. contactor input: |
4 kW |
| Power input in sleep mode: |
2,5 W |
| Accepted coins: |
1 and 2 €, token (other
currencies on request) |
| Delay time for paid 1 €: |
30 sec. - 16 h,
standard 30 sec. |
Downloads
- Mounting instructions (2.11 MB)
- User guide (26.88 kB)
- Catalogue list (242.53 kB)
- Circuit diagram (2.04 MB)
- 2D Drawing (258.68 kB)
