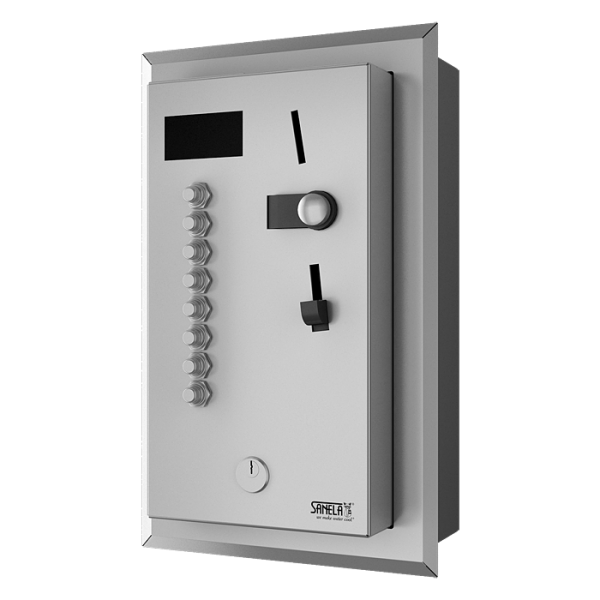

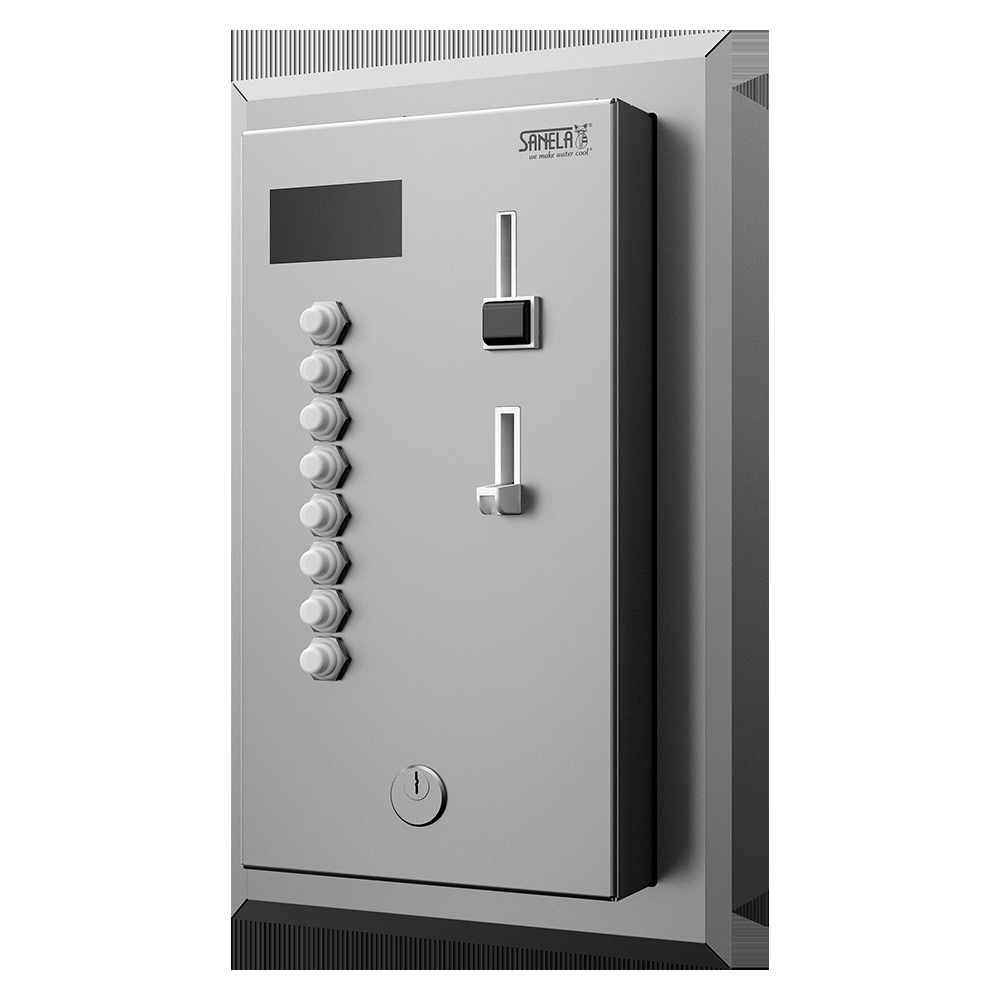

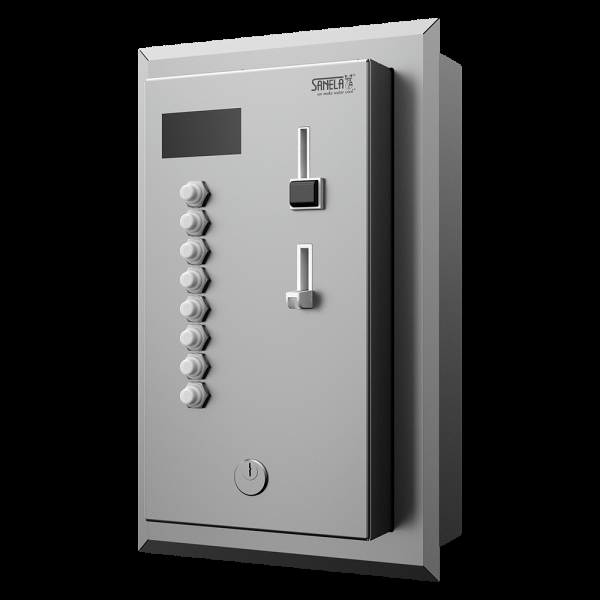

SLZA 04LZ
Recessed coin and token machine for two to eight single-phase appliances 230 V, choice of appliance by the user, 24 V DC
Characteristics
- vandal-proof
- choice of appliance by the user - before inserting a coin or token the user chooses the requested appliance, the number of appliance is shown on the display, the device switches on the contactor of single-phase appliance (e. g. washing machine) for paid time
- during use is possible to add the coins or tokens and pro long use time
- the device adds up the coins but does not return
- recessed
- parameters adjustment using by the remote control SLD 05 (appliance running time according to the thrown coin or token, time value, current euro exchange, display contrast, possibility turn off one from appliances)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 88041
I am interested in more information:
Supply specification
SLZA 04LZ - Supply No. 88041 - stainless steel coin device with electronics, coin holder and coin box, set of keys (2 pcs.), mountig frame
Technical information
| Niche dimensions: | 335 x 200 x 125 mm |
| Dimensions: |
360 x 225 x 132 mm |
| Weight: |
6,2 kg |
| Thickness of material: |
1,5 mm |
| Operating voltage: |
24 V DC |
| Power input: |
30 W (depends on the accessories and the number of appliances) |
| Accepted coins: | 1 and 2 €, token (other currencies on request) |
| Delay time for paid 1 €: | 30 sec. - 16 h, standard 30 sec |
| Maximal power input of contactor: |
4 kW |
Downloads
- Mounting instructions (2.44 MB)
- User guide (29.11 kB)
- Catalogue list (175.82 kB)
- Circuit diagram (1.8 MB)
- 2D Drawing (479.64 kB)
