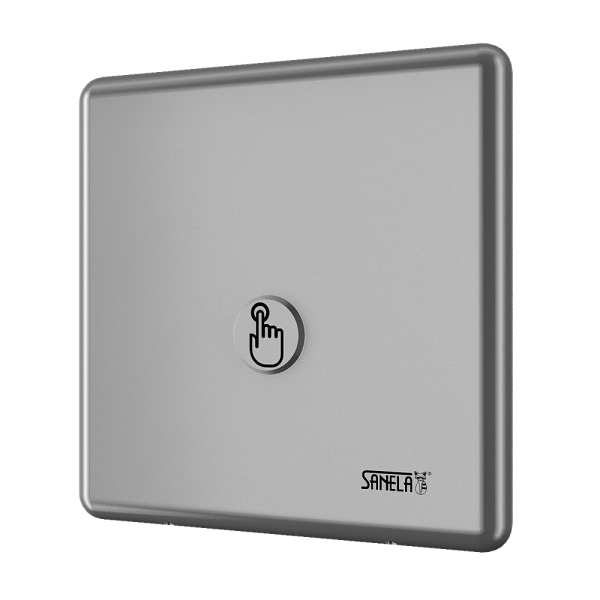

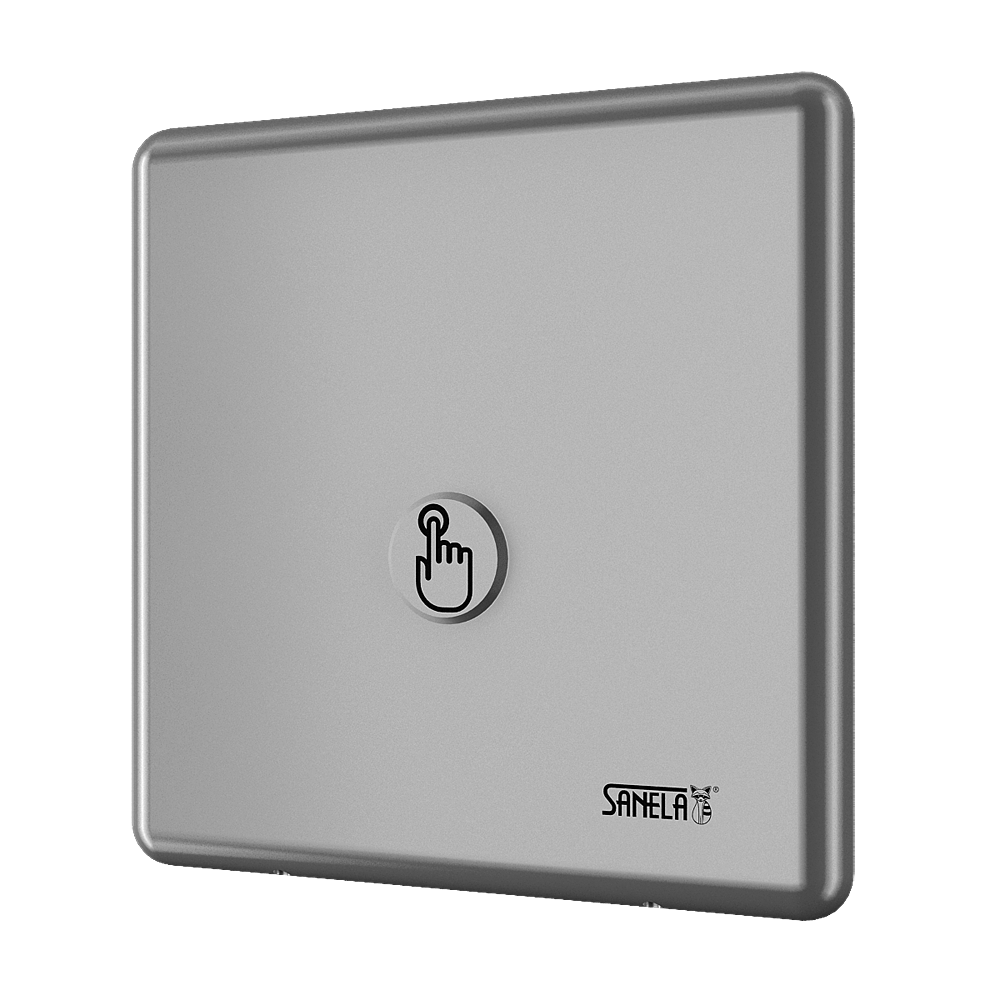

SLW 01PX
Toilet piezo flushing unit for pressured water, brushed, 24 V DC
Characteristics
- vandal-proof design
- is intended for pressurized water from the supply, cannot be used for toilets with cistern
- responds to a gentle press of the piezo button with immediate flushing
- flush duration of the flush is adjustable from 0.5 to 15.5 s, standard 8 s
- automatic flush after every eighth use and after 24 hours from the last flush
- electromagnetic valve with water flow regulation option, possibility of flushing by turning the valve coil (e.g. in case of power failure)
- parameter setting using remote control SLD 04
- brushed finish
- Order number: 14011
- EAN: 8591385140112
I am interested in more information:
Supply specification
SLW 01PX - Supply No. 14011 - stainless steel cover with piezo electronics, stainless steel mounting box with screw connection and solenoid valve, outlet fitting with gasket
Technical information
| Stainless steel cover dimensions: | 170 x 160 x 10 mm |
| Mounting box dimensions: | 145 x 155 x 100 mm |
| Supply voltage: | 24 V DC |
| Recommended working pressure: | 0,15 - 0,6 MPa |
| Flow rate: | 70 l/min at pressure 0.15 MPa (informative value) |
| Water inlet: | cross-section min. 32 mm (PN 16), external thread min. G 1" |
| Water outlet: | external thread min. G 1″ |
Downloads
- Mounting instructions (3.02 MB)
- Catalogue list (116.68 kB)
- 2D Drawing (289.47 kB)
