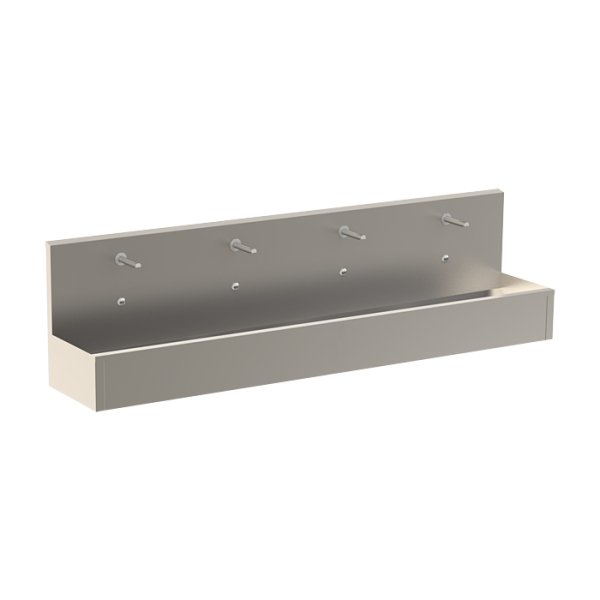

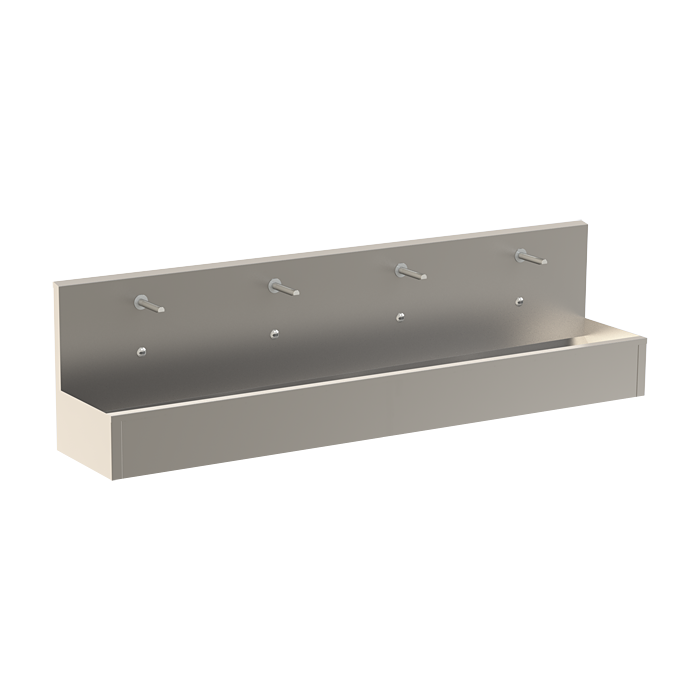

SLUN 82E

Stainless steel wall hung trough with 4 integrated electronics, length 2500 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • stainless steel wall hung washing troughs with integrated electronics
  • vandal-proof stainless steel spouts and sensing heads
  • SLUN 82E, ET - length 2500 mm (4 pcs. of electronics)
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • temperature is regulated by angle valves
  • different lengths could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 93821

Supply specification

SLUN 82E - Supply No. 93821 - stainless steel washing trough with electronics and spouts, electromagnetic valve (pcs. according to number of electronics), connecting hoses, angle valve with check valve (2 pcs.), siphon, mounting set

Technical information

installation: wall hung
category: trough
control: infra-red
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
