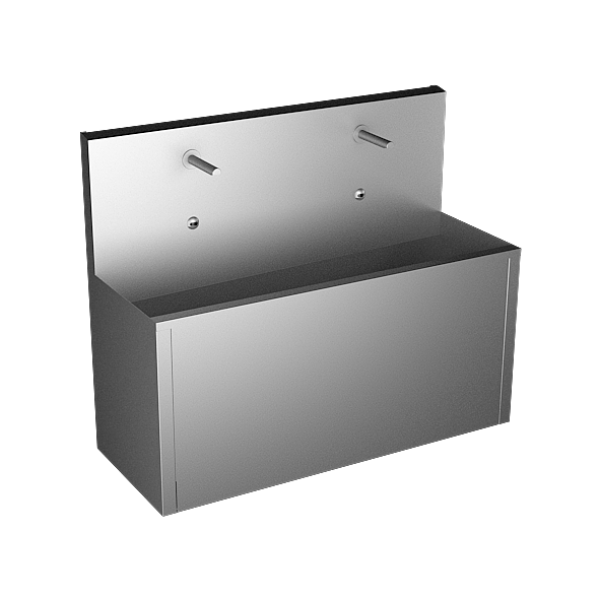

SLUN 80EA
Vandal-proof stainless steel wall hung trough with 2 integrated electronics, length 1250 mm, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for a prison
- with a complete apron
- stainless steel wall hung washing trough with integrated electronics
- vandal-proof stainless steel spouts and sensing heads
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- different lengths could be made to order
- material AISI - 304
- could be made to order from stainless steel AISI - 316L
- brushed finish
- Order number: 93802
I am interested in more information:
Supply specification
SLUN 80EA - Supply No. 93802 - stainless steel washing trough with electronics (2 pcs.), spout (2 pcs.), electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter (2 pcs.), siphon, mounting set
Technical information
| Temperature regulation: | for cold and hot water |
| Installation: | wall hung |
| Category: | trough |
| Control: | infra-red |
| Operating voltage: | 24 V DC |
| Active range: | 0,23 - 0,31 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.32 MB)
- Catalogue list (158.37 kB)
- 2D Drawing (193.34 kB)
