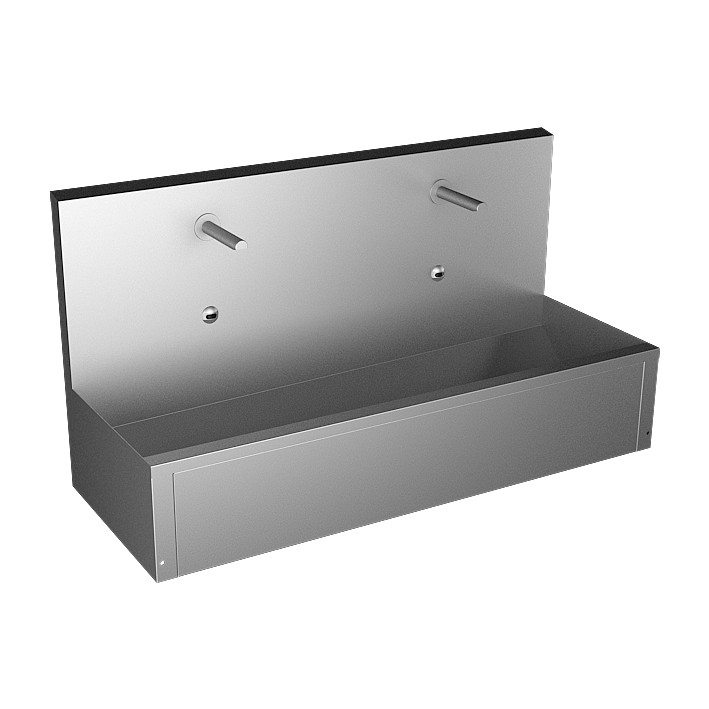

SLUN 80ET
Stainless steel wall hung trough with integrated electronics, thermostatic valve, length 1250 mm, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- stainless steel wall hung washing troughs with integrated electronics
- vandal-proof stainless steel spouts and sensing heads
- SLUN 80E, ET - length 1250 mm (2 pcs. of electronics)
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- temperature is regulated by thermostatic valve
- different lengths could be made to order
- material AISI - 304
- could be made to order from stainless steel AISI - 316L
- brushed finish
- Order number: 93803
I am interested in more information:
Supply specification
SLUN 80ET - Supply No. 93803 - stainless steel washing trough with electronics and spouts, electromagnetic valve (pcs. according to number of electronics), connecting hoses, angle valve with check valve (2 pcs.), siphon, mounting set, thermostatic valve
Technical information
| Temperature regulation: | with thermostat |
| Installation: | wall hung |
| Category: | trough |
| Control: | infra-red |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.44 MB)
- Catalogue list (142.15 kB)
- 2D Drawing (192.86 kB)
