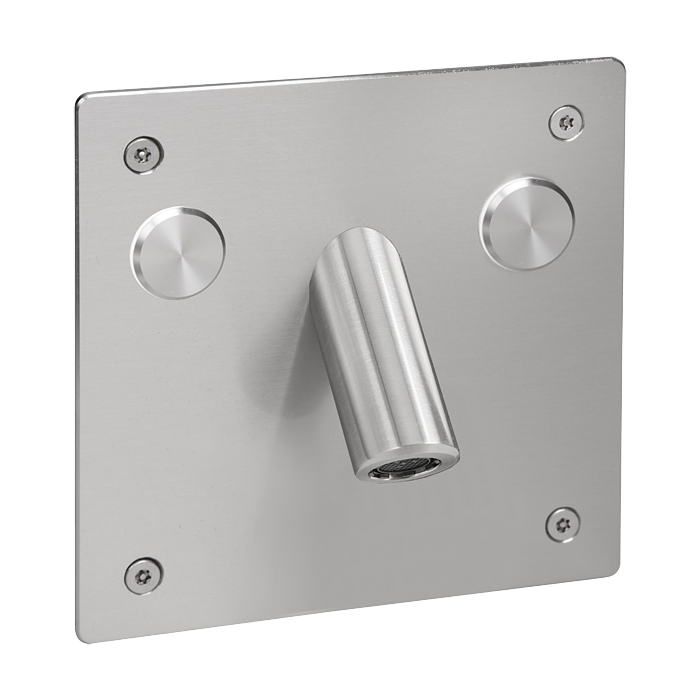

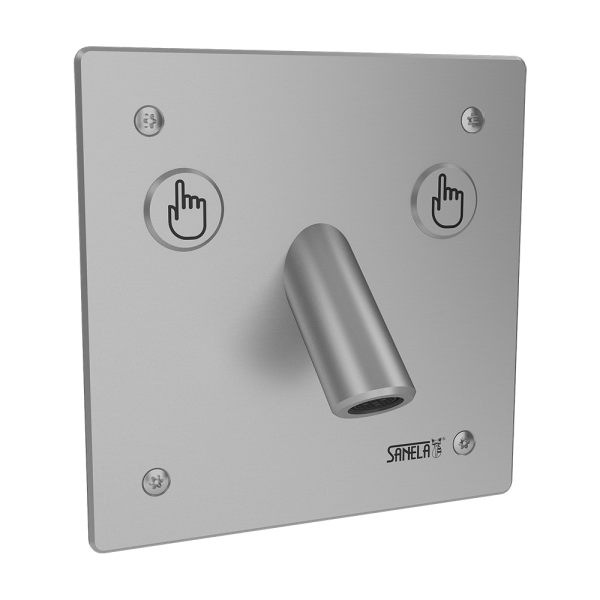

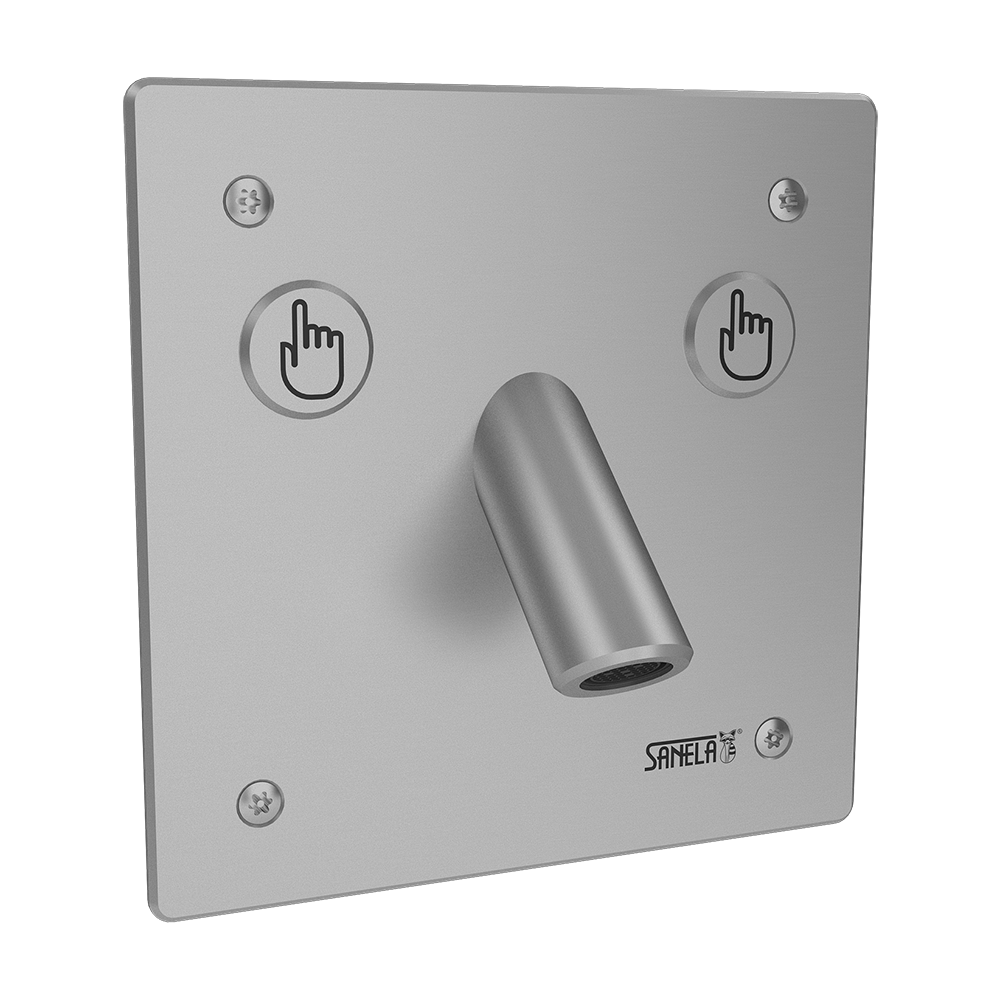

SLU 44PP

Automatic wall-mounted tap for hot and cold water with a vandal-proof cover, 24 V DC

Characteristics

economical aerator, rate of flow 6 l/min
hygienic flush
vandal-proof
suitable for a prison
special anti-suicide spout
special vandal-proof stainless steel cover, thickness 3 mm, safety screws
is destined for cold and hot water, mutual blocking of the buttons
water flows after soft push of the piezo button
water stops flowing after adjustable flowing time (can be set in range 2 - 62 s), standard 10 s
water could be stopped by follow-up soft push of piezo button
parameters adjustment using by the remote control SLD 06
water flow can be regulated by ball valve

Code	SLU 44PP
Order number	64442

Supply specification

SLU 44PP - Supply No. 64442 - spout, stainless steel cover with piezo electronics (2 pcs.), stainless steel mounting box with a brass screw-coupling, electromagnetic valve (2 pcs.), ball valve (2 pcs.), safety screws (4 pcs.)

Technical information

Stainless steel cover dimension: 170 x 170 x 3 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
