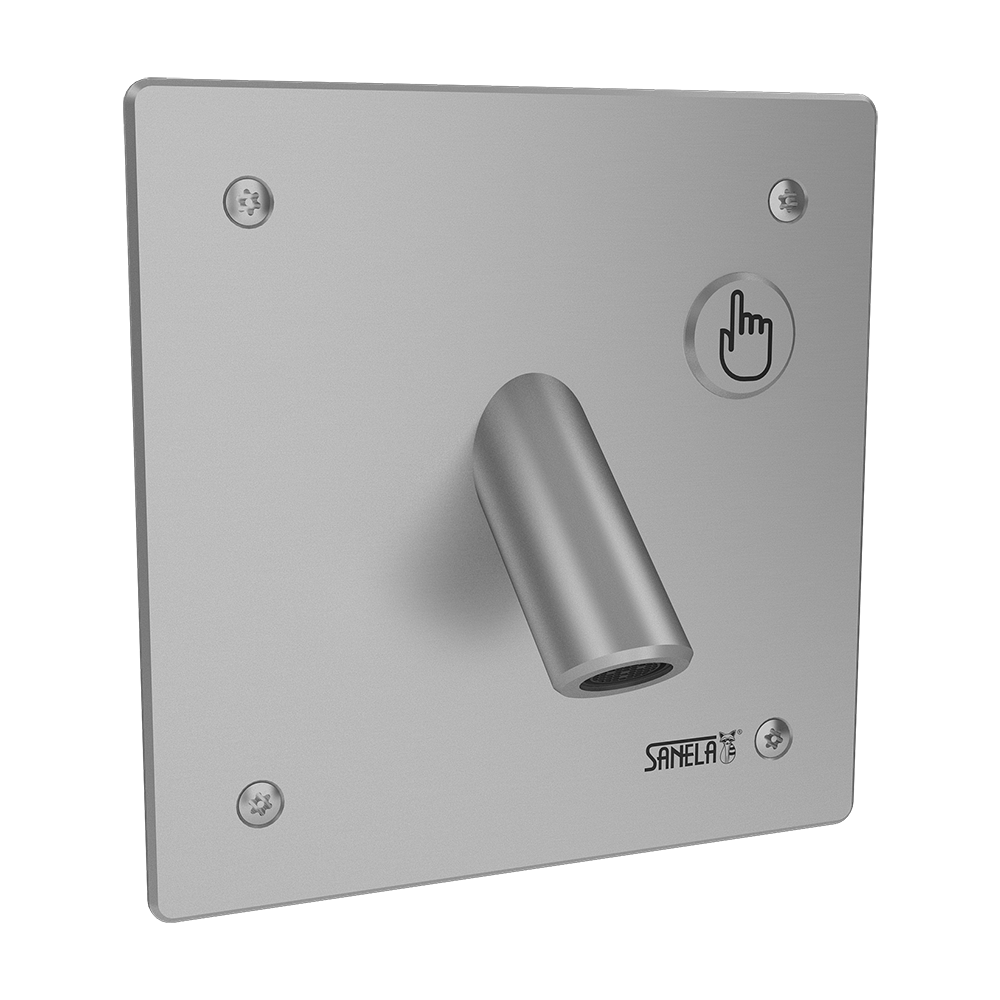

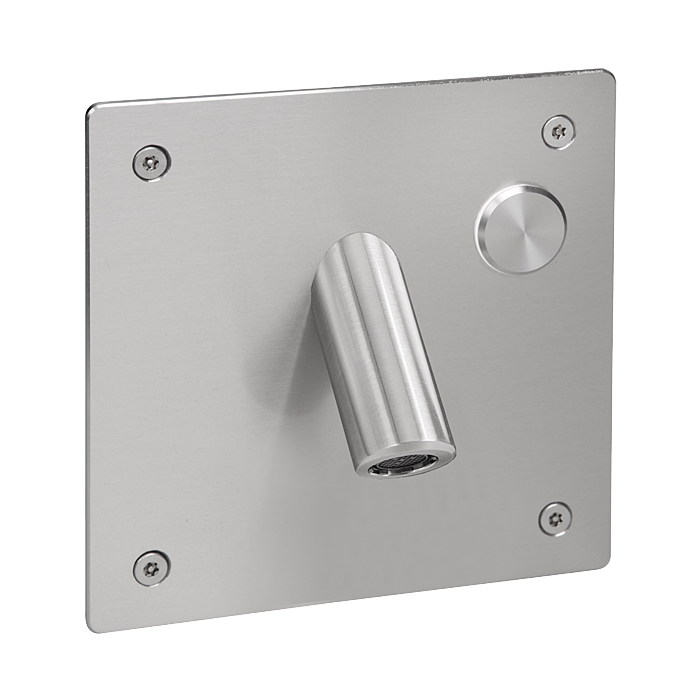

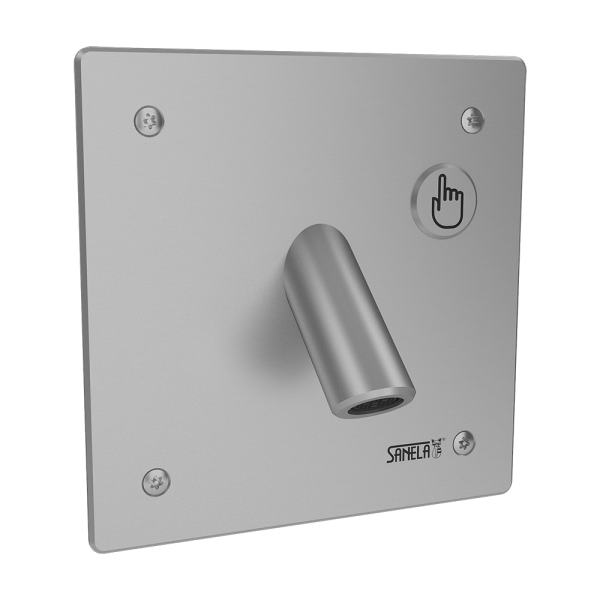

SLU 44P

Wall-mounted tap for cold or premixed water with a vandal-proof cover, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for a prison
  • special anti-suicide spout
  • special vandal-proof stainless steel cover, thickness 3 mm, safety screws
  • is destined for cold or premixed water
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • water flow can be regulated by ball valve
  • Order number: 43449
I am interested in more information:

Supply specification

SLU 44P - Supply No. 43449 - spout, stainless steel cover with piezo electronics, stainless steel mounting box with a brass screw-coupling, electromagnetic valve and angle valve, safety screws

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 170 x 170 x 3 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min)
Thermostatic mixing valve 1/2” (20l/min)
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
