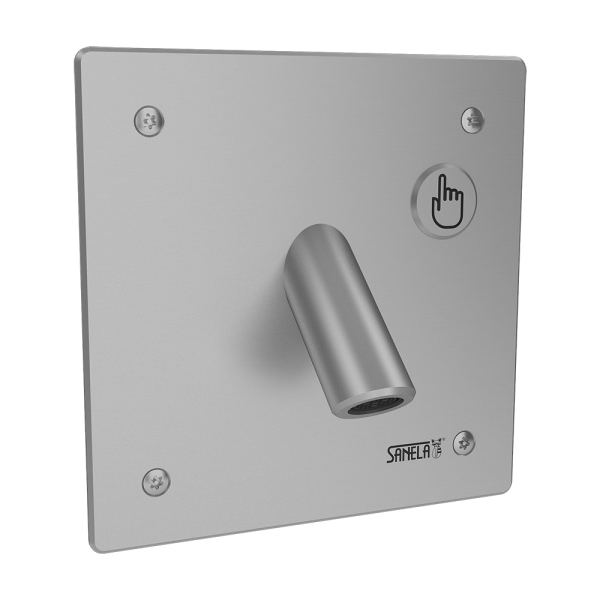

SLU 44PB

Wall-mounted tap for cold or premixed water with a vandal-proof cover, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for a prison
  • special anti-suicide spout
  • special vandal-proof stainless steel cover, thickness 3 mm, safety screws
  • is destined for cold or premixed water
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • monitoring of battery capacity
  • parameter adjustment using by the remote control SLD 04
  • water flow can be regulated by ball valve
  • Order number: 64441

Supply specification

SLU 44PB - Supply No. 64441 - spout, stainless steel cover with piezo electronics, stainless steel mounting box with a brass screw-coupling, electromagnetic valve and angle valve, safety screws, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: battery operated
control: piezo
Stainless steel cover dimension: 170 x 170 x 3 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
