SLU 43

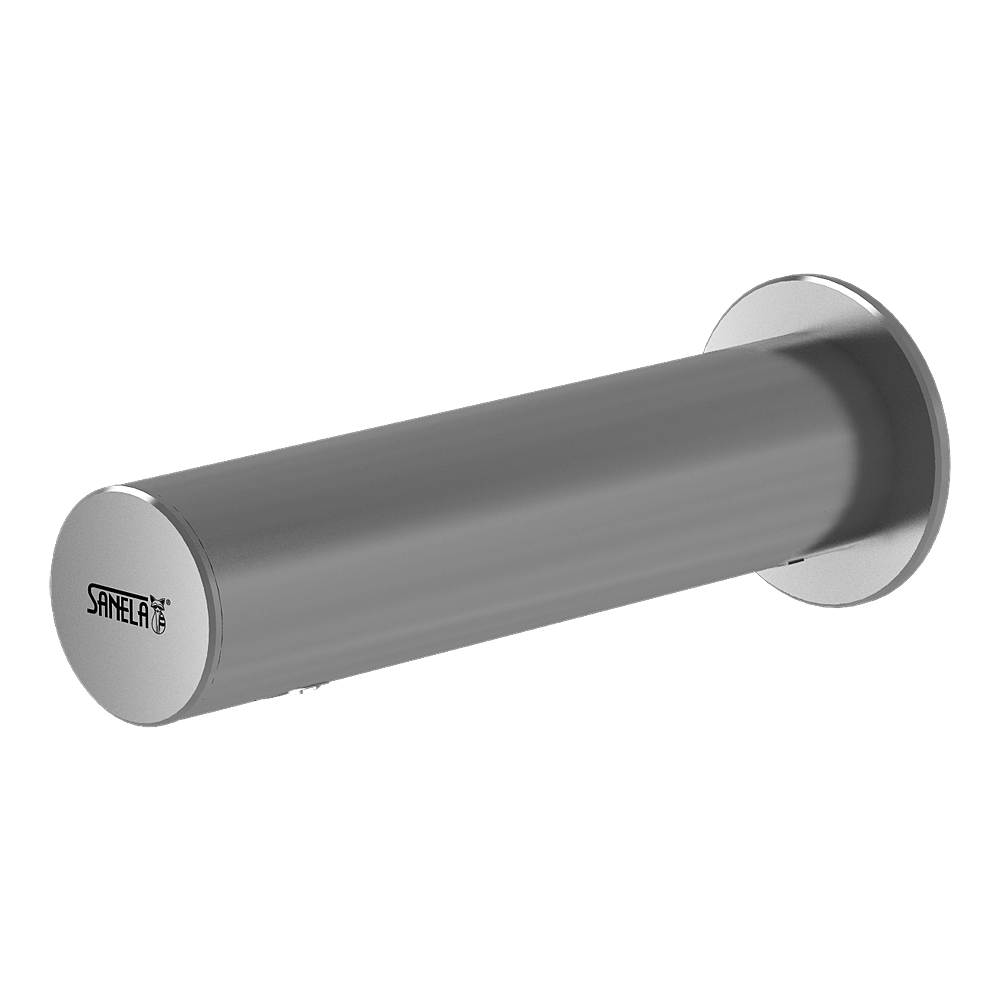

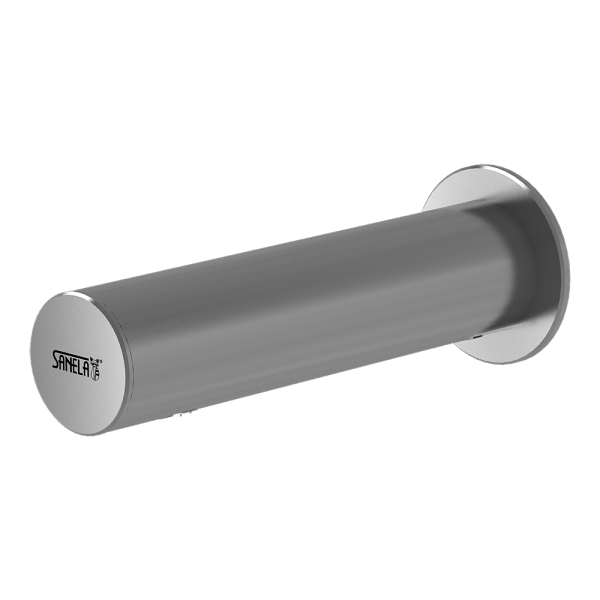

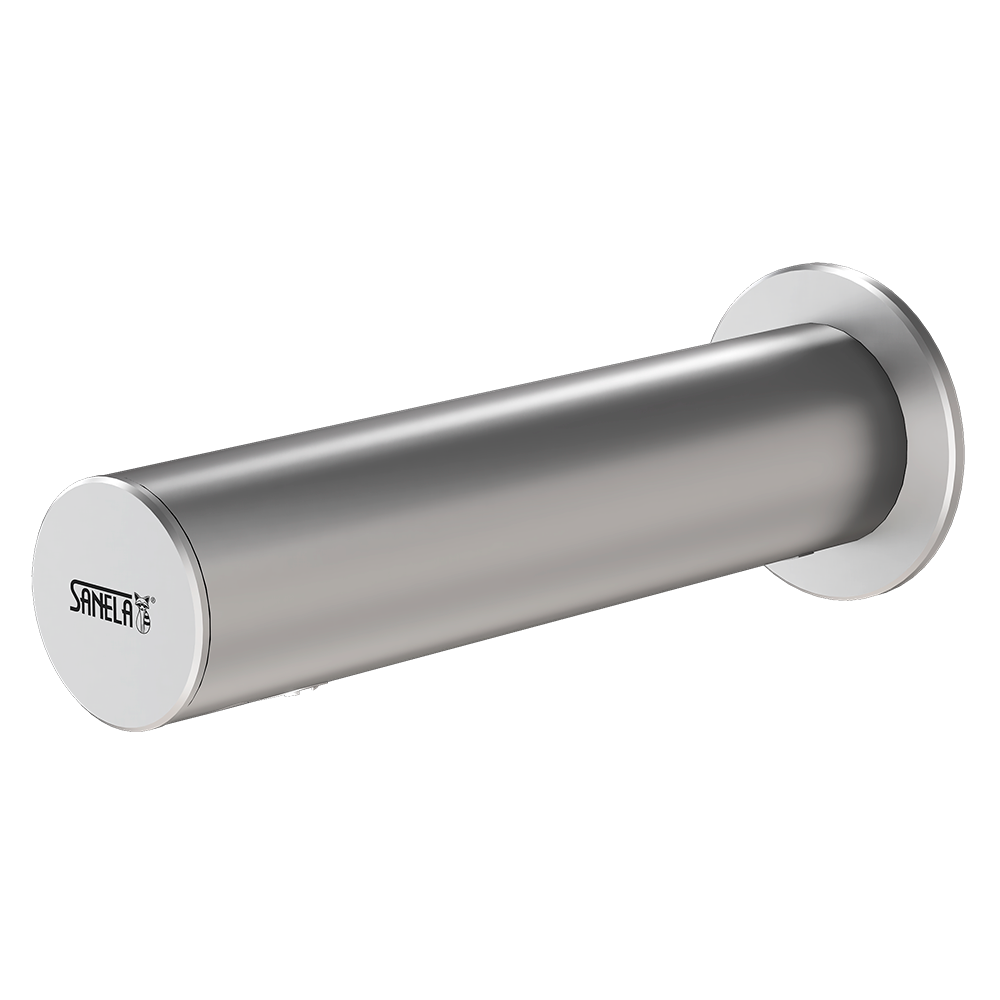

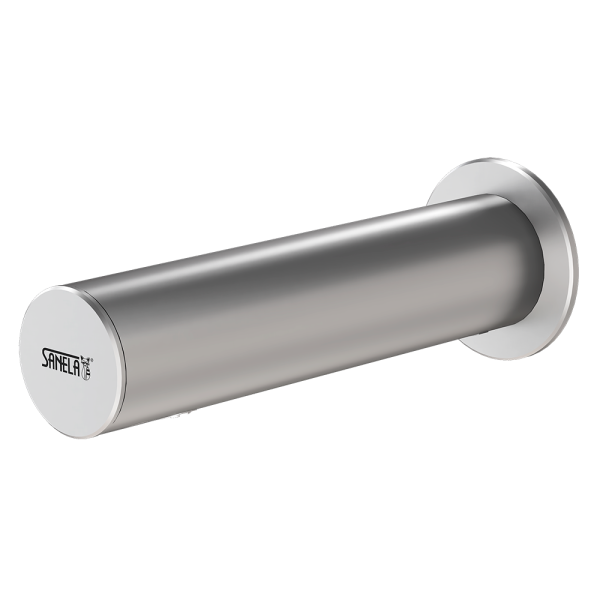

Automatic wall-mounted stainless steel washbasin tap for cold or premixed water, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • lead free
  • is destined for cold or premixed water
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03430
I am interested in more information:

Supply specification

SLU 43 - Supply No. 03430 - faucet with electronics and electromagnetic valve

Technical information

Material: stainless steel
Temperature regulation: for cold or premixed water
Power supply: 24V DC
Control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,11 - 0,15 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
