SLU 42K

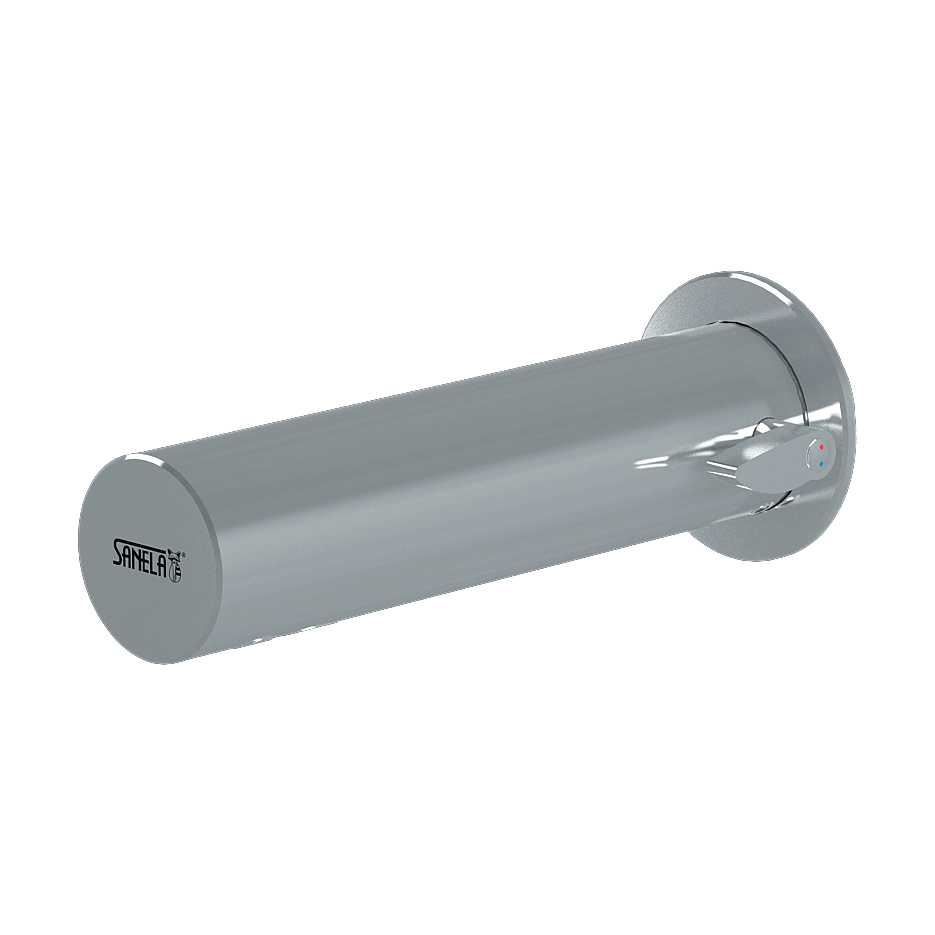

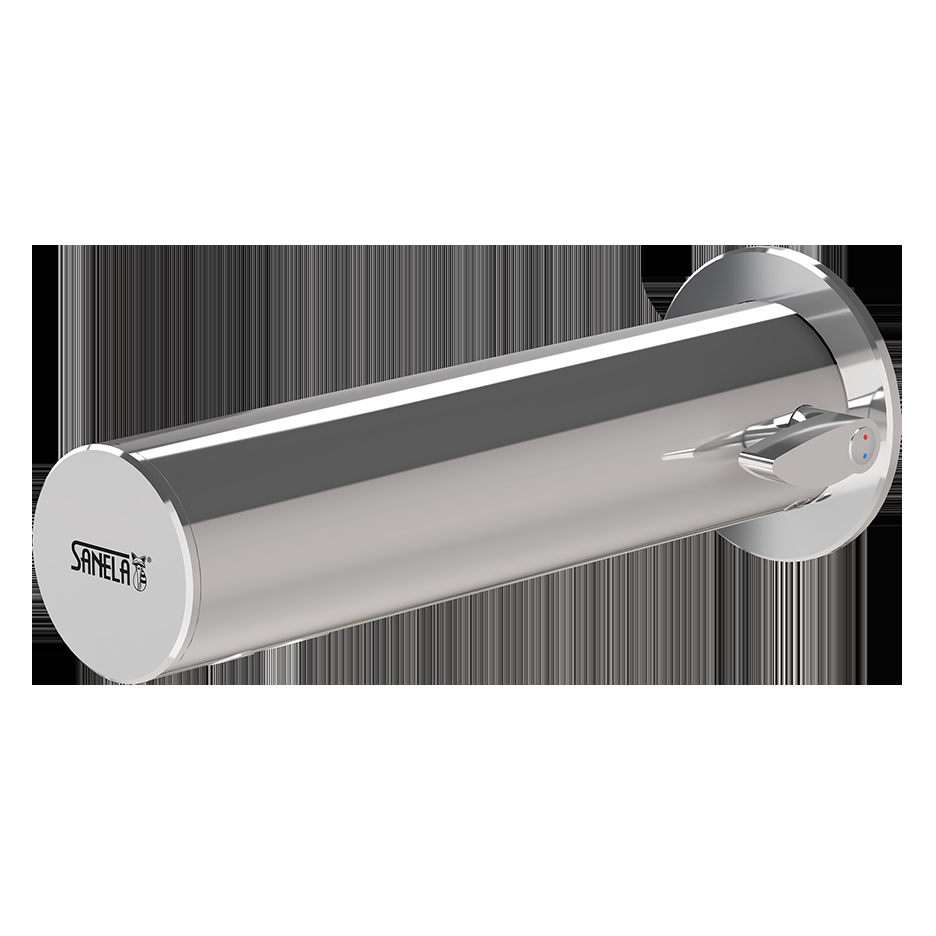

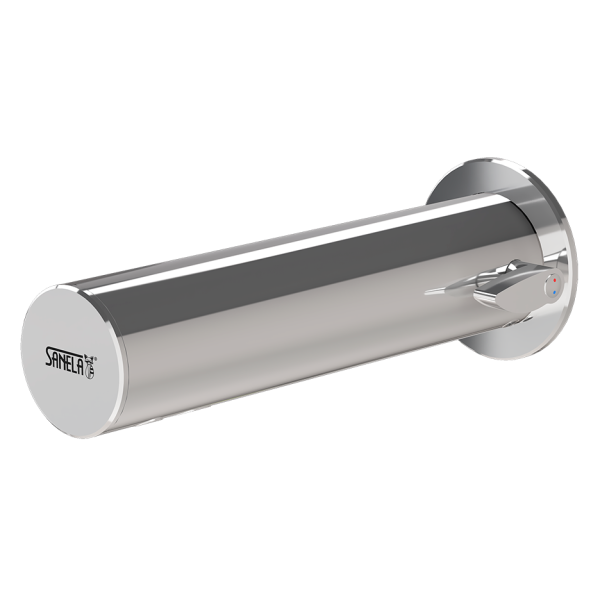

Automatic wall-mounted mixer, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • are destined for cold and hot water, temperature is regulated by mixer
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03420

Supply specification

SLU 42K - Supply No. 03420 - faucet with mixer, electronics and electromagnetic valve, plastic mounting box

Technical information

material: chrome
temperature regulation: with mixer
power supply: 24V DC
control: infra-red
Dimension of the mounting box: 90 x 80 x 40 mm
Operating voltage: 24 V DC
Active range: standard 0,11 - 0,15 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Economical aerator 3,8 l/min for SLU…
Economical aerator1,9 l/min for SLU…
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
